8z1z

Cryo-EM structure of Escherichia coli DppAR383D+D436RBCDF in pre-catalytic state

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dipeptide transport system permease protein DppB

Escherichia coli K-12

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Dipeptide transport system permease protein DppC × 1 （P0AEG1） Dipeptide transport ATP-binding protein DppD × 1 （P0AAG0） Dipeptide transport ATP-binding protein DppF × 1 （P37313） Dipeptide-binding protein × 1 （P23847） IRON/SULFUR CLUSTER × 2 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPPB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–339； UniProt 1–339

Dipeptide transport system permease protein DppC

Escherichia coli K-12

UniProt P0AEG1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Dipeptide transport system permease protein DppB × 1 （P0AEF8） Dipeptide transport ATP-binding protein DppD × 1 （P0AAG0） Dipeptide transport ATP-binding protein DppF × 1 （P37313） Dipeptide-binding protein × 1 （P23847） IRON/SULFUR CLUSTER × 2 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPPC_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–300； UniProt 1–300

Dipeptide transport ATP-binding protein DppD

Escherichia coli K-12

UniProt P0AAG0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Dipeptide transport system permease protein DppB × 1 （P0AEF8） Dipeptide transport system permease protein DppC × 1 （P0AEG1） Dipeptide transport ATP-binding protein DppF × 1 （P37313） Dipeptide-binding protein × 1 （P23847） IRON/SULFUR CLUSTER × 2 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPPD_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–327； UniProt 1–327

Dipeptide transport ATP-binding protein DppF

Escherichia coli (strain K12)

UniProt P37313

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Dipeptide transport system permease protein DppB × 1 （P0AEF8） Dipeptide transport system permease protein DppC × 1 （P0AEG1） Dipeptide transport ATP-binding protein DppD × 1 （P0AAG0） Dipeptide-binding protein × 1 （P23847） IRON/SULFUR CLUSTER × 2 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPPF_ECOLI
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–334； UniProt 1–334

Dipeptide-binding protein

Escherichia coli K-12

UniProt P23847

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Dipeptide transport system permease protein DppB × 1 （P0AEF8） Dipeptide transport system permease protein DppC × 1 （P0AEG1） Dipeptide transport ATP-binding protein DppD × 1 （P0AAG0） Dipeptide transport ATP-binding protein DppF × 1 （P37313） IRON/SULFUR CLUSTER × 2 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPPA_ECOLI
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain F； PDBConstruct 1–535； UniProt 1–535

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8z1z
Deposition date deposition_date	2024-04-12
Structure title title	Cryo-EM structure of Escherichia coli DppAR383D+D436RBCDF in pre-catalytic state
Keywords keywords	ABC importer, SBP, Peptide transporter, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8z1z__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8z1z__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

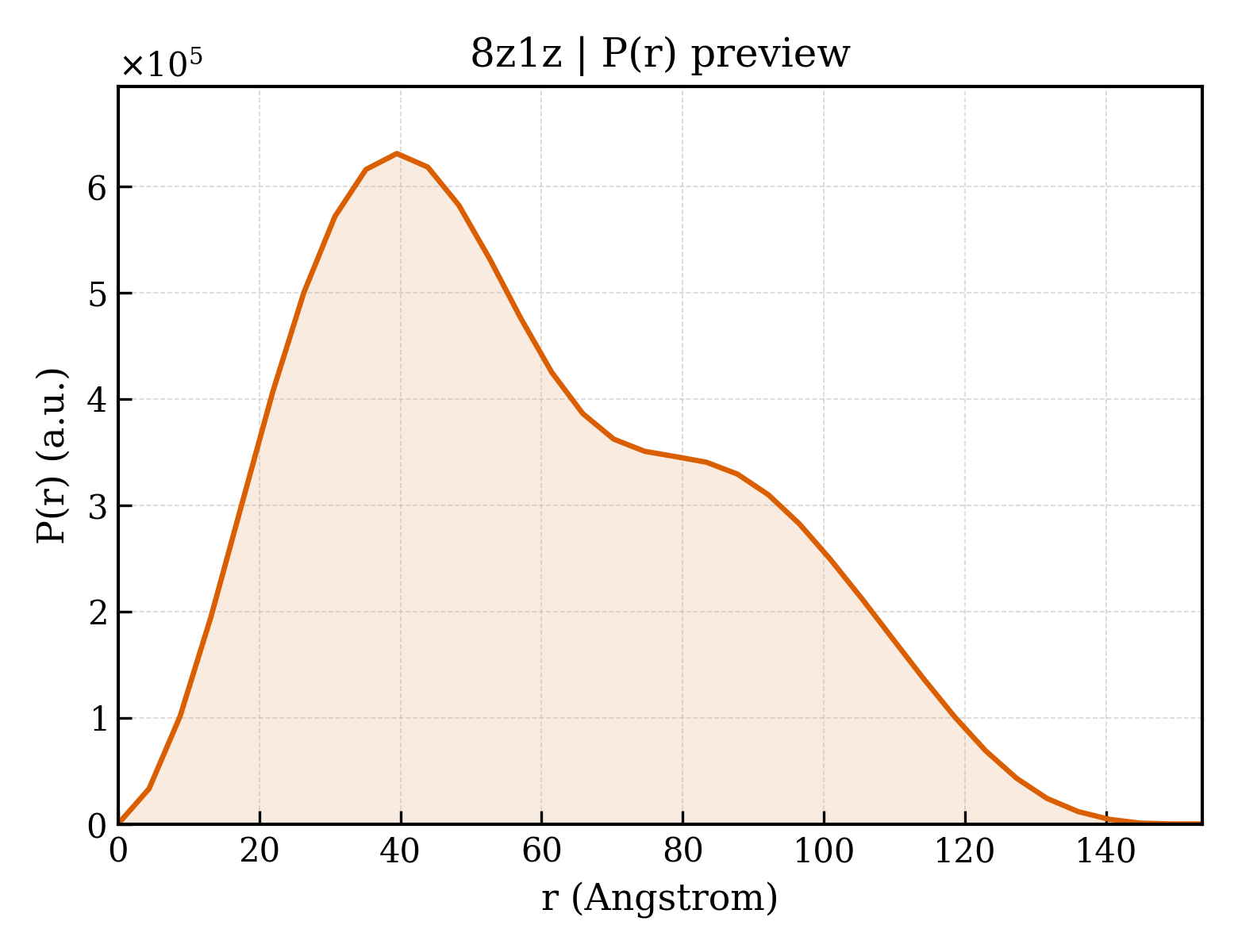

8z1z__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	45.31 Å
Rg (electron density)	44.77 Å
Total Rg	44.90 Å
Atom count	13652
Residues	1740
Excluded volume	245410 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8z1z__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Dipeptide transport system permease protein DppB
Molecular weight formula_weight	37531.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	13652

MLQFILRRLGLVIPTFIGITLLTFAFVHMIPGDPVMIMAGERGISPERHAQLLAELGLDKPMWQQYLHYIWGVMHGDLGISMKSRIPVWEEFVPRFQATLELGVCAMIFATAVGIPVGVLAAVKRGSIFDHTAVGLALTGYSMPIFWWGMMLIMLVSVHWNLTPVSGRVSDMVFLDDSNPLTGFMLIDTAIWGEDGNFIDAVAHMILPAIVLGTIPLAVIVRMTRSSMLEVLGEDYIRTARAKGLTRMRVIIVHALRNAMLPVVTVIGLQVGTLLAGAILTETIFSWPGLGRWLIDALQRRDYPVVQGGVLLVATMIILVNLLVDLLYGVVNPRIRHKK

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Dipeptide transport system permease protein DppC
Molecular weight formula_weight	32328.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSQVTENKVISAPVPMTPLQEFWHYFKRNKGAVVGLVYVVIVLFIAIFANWIAPYNPAEQFRDALLAPPAWQEGGSMAHLLGTDDVGRDVLSRLMYGARLSLLVGCLVVVLSLIMGVILGLIAGYFGGLVDNIIMRVVDIMLALPSLLLALVLVAIFGPSIGNAALALTFVALPHYVRLTRAAVLVEVNRDYVTASRVAGAGAMRQMFINIFPNCLAPLIVQASLGFSNAILDMAALGFLGMGAQPPTPEWGTMLSDVLQFAQSAWWVVTFPGLAILLTVLAFNLMGDGLRDALDPKLKQ

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Dipeptide transport ATP-binding protein DppD
Molecular weight formula_weight	35886.4 kDa
EC 编号 ec_number	7.4.2.9
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MALLNVDKLSVHFGDESAPFRAVDRISYSVKQGEVVGIVGESGSGKSVSSLAIMGLIDYPGRVMAEKLEFNGQDLQRISEKERRNLVGAEVAMIFQDPMTSLNPCYTVGFQIMEAIKVHQGGNKSTRRQRAIDLLNQVGIPDPASRLDVYPHQLSGGMSQRVMIAMAIACRPKLLIADQPTTALDVTIQAQIIELLLELQQKENMALVLITHDLALVAEAAHKIIVMYAGQVVETGDAHAIFHAPRHPYTQALLRALPEFAQDKERLASLPGVVPGKYDRPNGCLLNPRCPYATDRCRAEEPALNMLADGRQSKCHYPLDDAGRPTL

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Dipeptide transport ATP-binding protein DppF
Molecular weight formula_weight	37610.5 kDa
EC 编号 ec_number	7.4.2.9
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MSTQEATLQQPLLQAIDLKKHYPVKKGMFAPERLVKALDGVSFNLERGKTLAVVGESGCGKSTLGRLLTMIEMPTGGELYYQGQDLLKHDPQAQKLRRQKIQIVFQNPYGSLNPRKKVGQILEEPLLINTSLSKEQRREKALSMMAKVGLKTEHYDRYPHMFSGGQRQRIAIARGLMLDPDVVIADQPVSALDVSVRAQVLNLMMDLQQELGLSYVFISHDLSVVEHIADEVMVMYLGRCVEKGTKDQIFNNPRHPYTQALLSATPRLNPDDRRERIKLSGELPSPLNPPPGCAFNARCRRRFGPCTQLQPQLKDYGGQLVACFAVDQDENPQR

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Dipeptide-binding protein
Molecular weight formula_weight	60366.5 kDa
Mutation mutation	R383D, D436R
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MRISLKKSGMLKLGLSLVAMTVAASVQAKTLVYCSEGSPEGFNPQLFTSGTTYDASSVPLYNRLVEFKIGTTEVIPGLAEKWEVSEDGKTYTFHLRKGVKWHDNKEFKPTRELNADDVVFSFDRQKNAQNPYHKVSGGSYEYFEGMGLPELISEVKKVDDNTVQFVLTRPEAPFLADLAMDFASILSKEYADAMMKAGTPEKLDLNPIGTGPFQLQQYQKDSRIRYKAFDGYWGTKPQIDTLVFSITPDASVRYAKLQKNECQVMPYPNPADIARMKQDKSINLMEMPGLNVGYLSYNVQKKPLDDVKVRQALTYAVNKDAIIKAVYQGAGVSAKNLIPPTMWGYNDDVQDYTYDPEKAKALLKEAGLEKGFSIDLWAMPVQDPYNPNARRMAEMIQADWAKVGVQAKIVTYEWGEYLKRAKDGEHQTVMMGWTGRNGDPDNFFATLFSCAASEQGSNYSKWCYKPFEDLIQPARATDDHNKRVELYKQAQVVMHDQAPALIIAHSTVFEPVRKEVKGYVVDPLGKHHFENVSIE

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 non-polymer

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Resolution resolution	3.26 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	375658
