1dqr

;CRYSTAL STRUCTURE OF RABBIT PHOSPHOGLUCOSE ISOMERASE, A GLYCOLYTIC ENZYME THAT MOONLIGHTS AS NEUROLEUKIN, AUTOCRINE MOTILITY FACTOR, AND DIFFERENTIATION MEDIATOR ;

Method: X-RAY DIFFRACTION D_max: 86.2 Å Quality: EXCELLENT

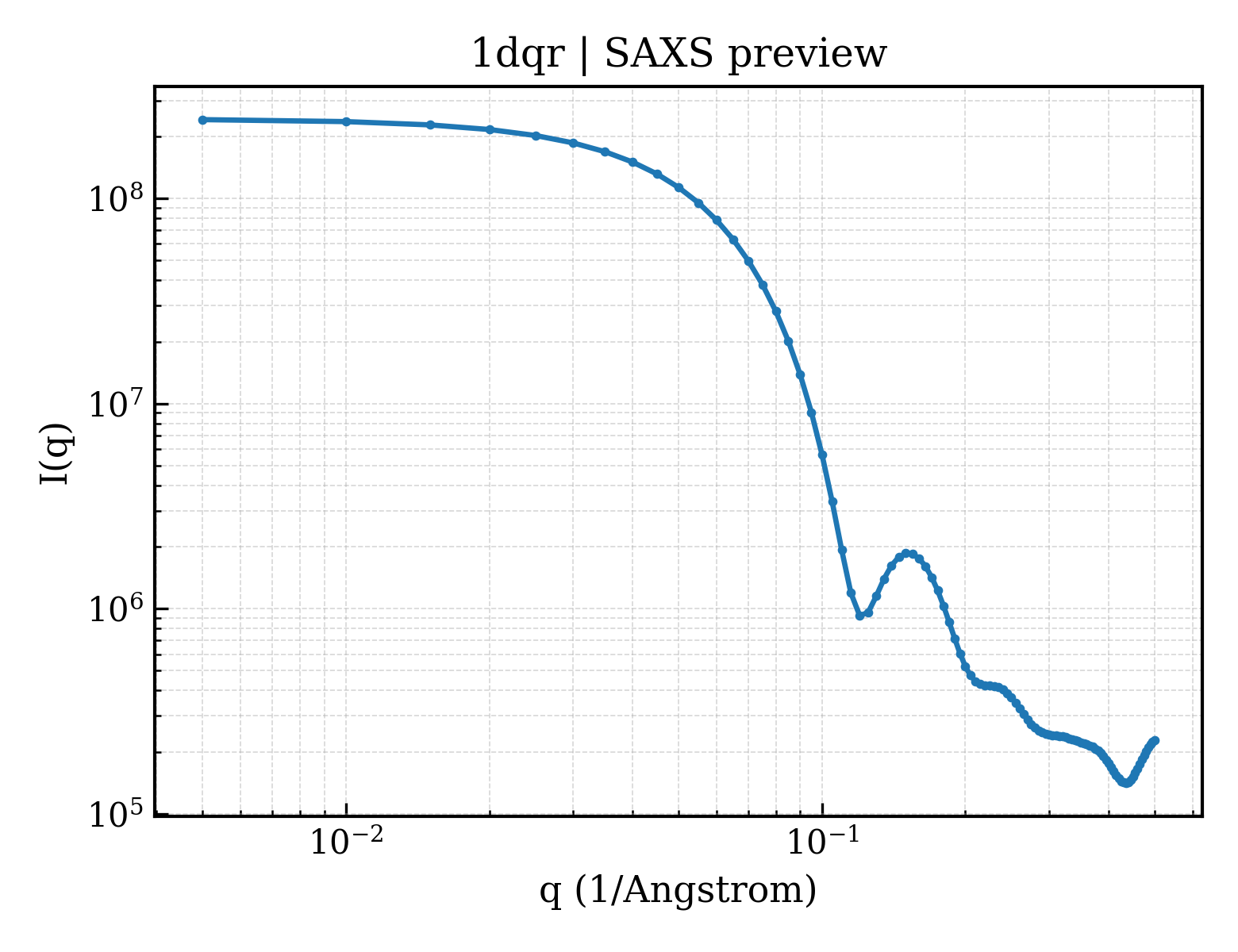

SAXS Profile

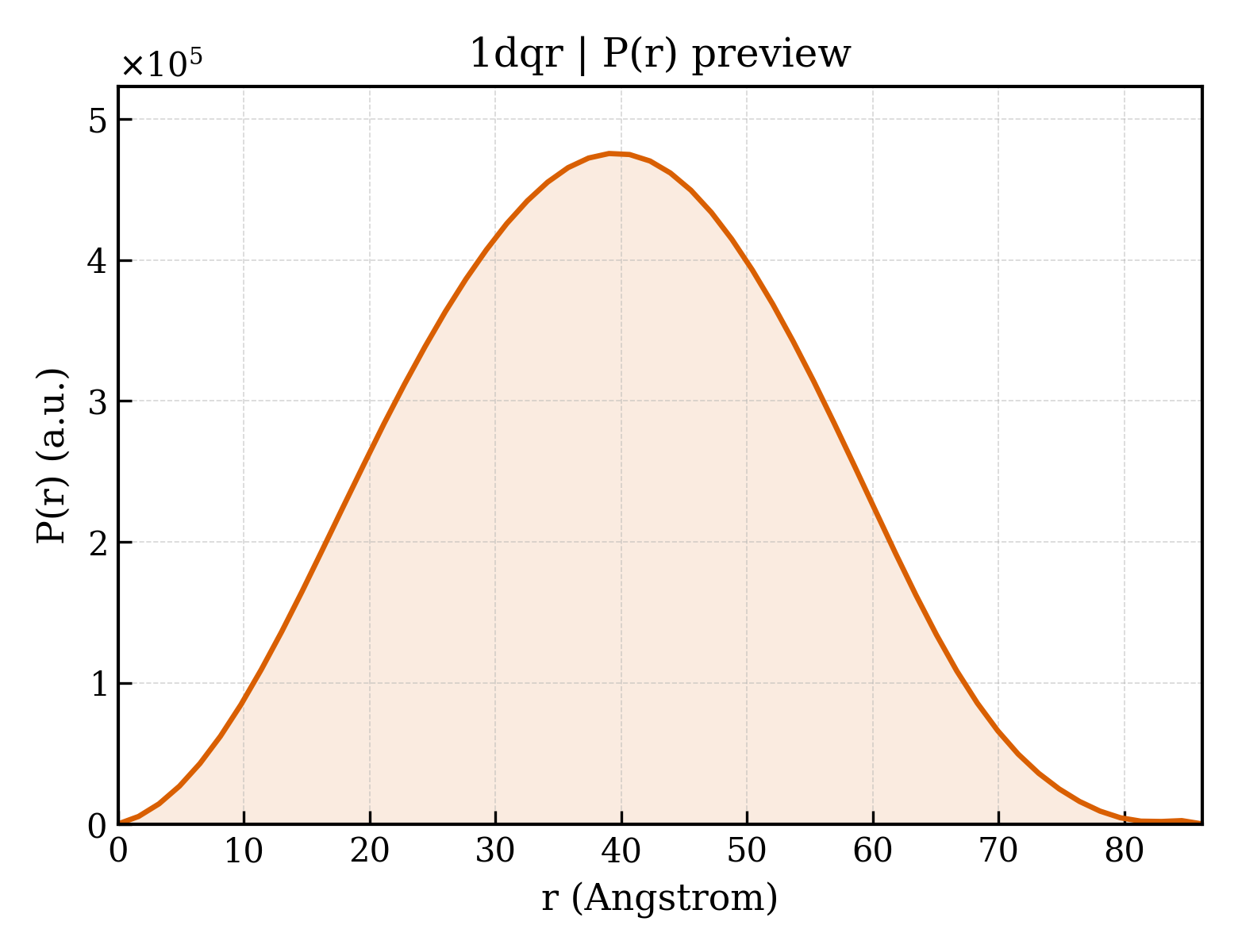

P(r) Distribution

▼

1. Structure Basics

entry_id	1dqr
deposition_date	2000-01-05
title	;CRYSTAL STRUCTURE OF RABBIT PHOSPHOGLUCOSE ISOMERASE, A GLYCOLYTIC ENZYME THAT MOONLIGHTS AS NEUROLEUKIN, AUTOCRINE MOTILITY FACTOR, AND DIFFERENTIATION MEDIATOR ;
keywords	alpha-beta sandwich domains, anti-parallel beta sheet, parallel beta sheet, ISOMERASE; ISOMERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.90 Å
rg_electron	28.58 Å
i0	243717000.00
molecular_weight	125150.0 kDa
excluded_volume	156990 Å³
envelope_volume	181160 Å³
shell_volume	49213 Å³
envelope_diameter	90.6 Å
shell_rg	38.41 Å
envelope_rg	28.71 Å
shape_rg	28.56 Å
total_rg	29.50 Å
total_atoms	8824
n_residues	1110
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	86.2 Å
rg_real	29.66 Å
rg_real_error	0.32 Å
i0_real	2.4370e+08
i0_real_error	3.1880e+06
rg_reciprocal	29.76 Å
i0_reciprocal	243700000.0000
total_estimate	0.9051
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	39.0 Å
skewness	0.036
kurtosis	-0.549
angular_range	— – 0.2650 Å⁻¹
current_alpha	0.0000
highest_alpha	71940000.0000
n_real_points	54
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.960; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.914

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	PHOSPHOGLUCOSE ISOMERASE
formula_weight	62696.4 kDa
ec_number	5.3.1.9
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	9194

AALTRNPQFQKLQQWHREHGSELNLRHLFDTDKERFNHFSLTLNTNHGHILLDYSKNLVTEEVMHMLLDLAKSRGVEAARESMFNGEKINSTEDRAVLHVALRNRSNTPIVVDGKDVMPEVNKVLDKMKAFCQRVRSGDWKGYTGKTITDVINIGIGGSDLGPLMVTEALKPYSSGGPRVWFVSNIDGTHIAKTLACLNPESSLFIIASKTFTTQETITNAKTAKDWFLLSAKDPSTVAKHFVALSTNTAKVKEFGIDPQNMFEFWDWVGGRYSLWSAIGLSIALHVGFDNFEQLLSGAHWMDQHFRTTPLEKNAPVLLAMLGIWYINCFGCETQAVLPYDQYLHRFAAYFQQGDMESNGKYITKSGARVDHQTGPIVWGEPGTNGQHAFYQLIHQGTKMIPCDFLIPVQTQHPIRKGLHHKILLANFLAQTEALMKGKSTEEARKELQAAGKSPEDLMKLLPHKVFEGNRPTNSIVFTKLTPFILGALIAMYEHKIFVQGVVWDINSFDQWGVELGKQLAKKIEPELDGSSPVTSHDSSTNGLINFIKQQREAKIQ

Entity 2 non-polymer

description	6-PHOSPHOGLUCONIC ACID
formula_weight	276.1 kDa
src_method	man
entity_count	2

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	370

▶

6. Citations (1)

▶

length_a	82.695 Å
length_b	115.272 Å
length_c	271.841 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	2.500 Å
resolution_low	35.000 Å
r_factor	0.2110
r_work	0.2120
r_free	0.2650

fit	/app/data/saxs_computation/dq/1dqr/1dqr.fit
pddf	/app/data/pr_computation/dq/1dqr/1dqr.pr.out
profile	/app/data/saxs_computation/dq/1dqr/1dqr.dat
