1g98

CRYSTAL STRUCTURE ANALYSIS OF RABBIT PHOSPHOGLUCOSE ISOMERASE COMPLEXED WITH 5-PHOSPHOARABINONATE, A TRANSITION STATE ANALOGUE

Method: X-RAY DIFFRACTION D_max: 85.1 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

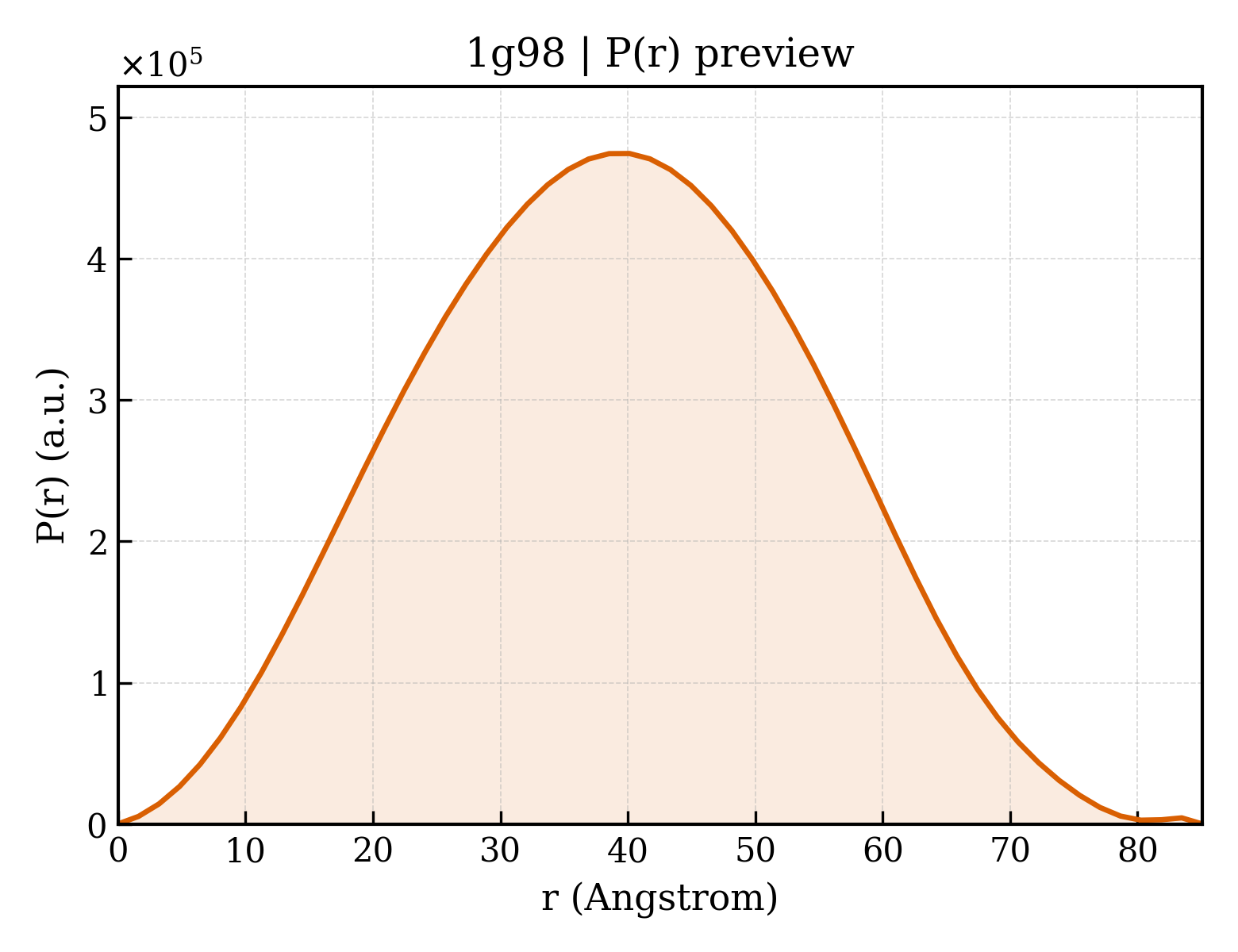

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1g98
沉积日期 deposition_date	2000-11-22
结构标题 title	CRYSTAL STRUCTURE ANALYSIS OF RABBIT PHOSPHOGLUCOSE ISOMERASE COMPLEXED WITH 5-PHOSPHOARABINONATE, A TRANSITION STATE ANALOGUE
关键词 keywords	Phosphoglucose Isomerase, 5-phosphoarabinonate, transition state analogue, isomerase; ISOMERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	29.84 Å
回转半径 Rg (电子) rg_electron	28.52 Å
零角强度 I(0) i0	243018000.00
分子量 molecular_weight	125090.0 kDa
排除体积 excluded_volume	156920 Å³
包络体积 envelope_volume	180420 Å³
水化壳体积 shell_volume	49082 Å³
包络直径 envelope_diameter	92.2 Å
壳层 Rg shell_rg	38.39 Å
包络 Rg envelope_rg	28.67 Å
形状 Rg shape_rg	28.50 Å
总 Rg total_rg	29.44 Å
总原子数 total_atoms	8820
残基数 n_residues	1110
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	85.1 Å
Rg (实空间) rg_real	29.60 Å
Rg 误差 (实空间) rg_real_error	0.33 Å
I(0) (实空间) i0_real	2.4300e+08
I(0) 误差 (实空间) i0_real_error	3.4170e+06
Rg (倒空间) rg_reciprocal	29.71 Å
I(0) (倒空间) i0_reciprocal	243000000.0000
解质量估计 total_estimate	0.9060
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	40.1 Å
偏度 Skewness skewness	0.038
峰度 Kurtosis kurtosis	-0.546
角度范围 angular_range	— – 0.2650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	65950000.0000
实空间数据点数 n_real_points	54
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.968; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.900

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	PHOSPHOGLUCOSE ISOMERASE
分子量 formula_weight	62827.6 kDa
EC 编号 ec_number	5.3.1.9
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	9712

MAALTRNPQFQKLQQWHREHGSELNLRHLFDTDKERFNHFSLTLNTNHGHILLDYSKNLVTEEVMHMLLDLAKSRGVEAARESMFNGEKINSTEDRAVLHVALRNRSNTPIVVDGKDVMPEVNKVLDKMKAFCQRVRSGDWKGYTGKTITDVINIGIGGSDLGPLMVTEALKPYSSGGPRVWFVSNIDGTHIAKTLACLNPESSLFIIASKTFTTQETITNAKTAKDWFLLSAKDPSTVAKHFVALSTNTAKVKEFGIDPQNMFEFWDWVGGRYSLWSAIGLSIALHVGFDNFEQLLSGAHWMDQHFRTTPLEKNAPVLLAMLGIWYINCFGCETQAVLPYDQYLHRFAAYFQQGDMESNGKYITKSGARVDHQTGPIVWGEPGTNGQHAFYQLIHQGTKMIPCDFLIPVQTQHPIRKGLHHKILLANFLAQTEALMKGKSTEEARKELQAAGKSPEDLMKLLPHKVFEGNRPTNSIVFTKLTPFILGALIAMYEHKIFVQGVVWDINSFDQWGVELGKQLAKKIEPELDGSSPVTSHDSSTNGLINFIKQQREAKIQ

Entity 2 non-polymer

描述 description	5-PHOSPHOARABINONIC ACID
分子量 formula_weight	246.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	892

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1g98a_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.80 — SIS domain
超家族 Superfamily superfamily	c.80.1 — SIS domain
家族 Family family	c.80.1.2 — Phosphoglucose isomerase, PGI

结构域编号 domain_id	d1g98b_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.80 — SIS domain
超家族 Superfamily superfamily	c.80.1 — SIS domain
家族 Family family	c.80.1.2 — Phosphoglucose isomerase, PGI

CATH v4.4 (6 domains)

结构域编号 domain_id	1g98A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

结构域编号 domain_id	1g98A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

结构域编号 domain_id	1g98A03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1390 — Phosphoglucose isomerase, C-terminal domain
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1g98B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

结构域编号 domain_id	1g98B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

结构域编号 domain_id	1g98B03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	1390 — Phosphoglucose isomerase, C-terminal domain
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	82.829 Å
晶胞边长 b length_b	116.554 Å
晶胞边长 c length_c	271.824 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	8.000 Å
R 因子 r_factor	—
R_work r_work	0.2110
R_free r_free	0.2360
