1drf

CRYSTAL STRUCTURE OF HUMAN DIHYDROFOLATE REDUCTASE COMPLEXED WITH FOLATE

Method: X-RAY DIFFRACTION Dmax: 55.2 Å Quality: GOOD

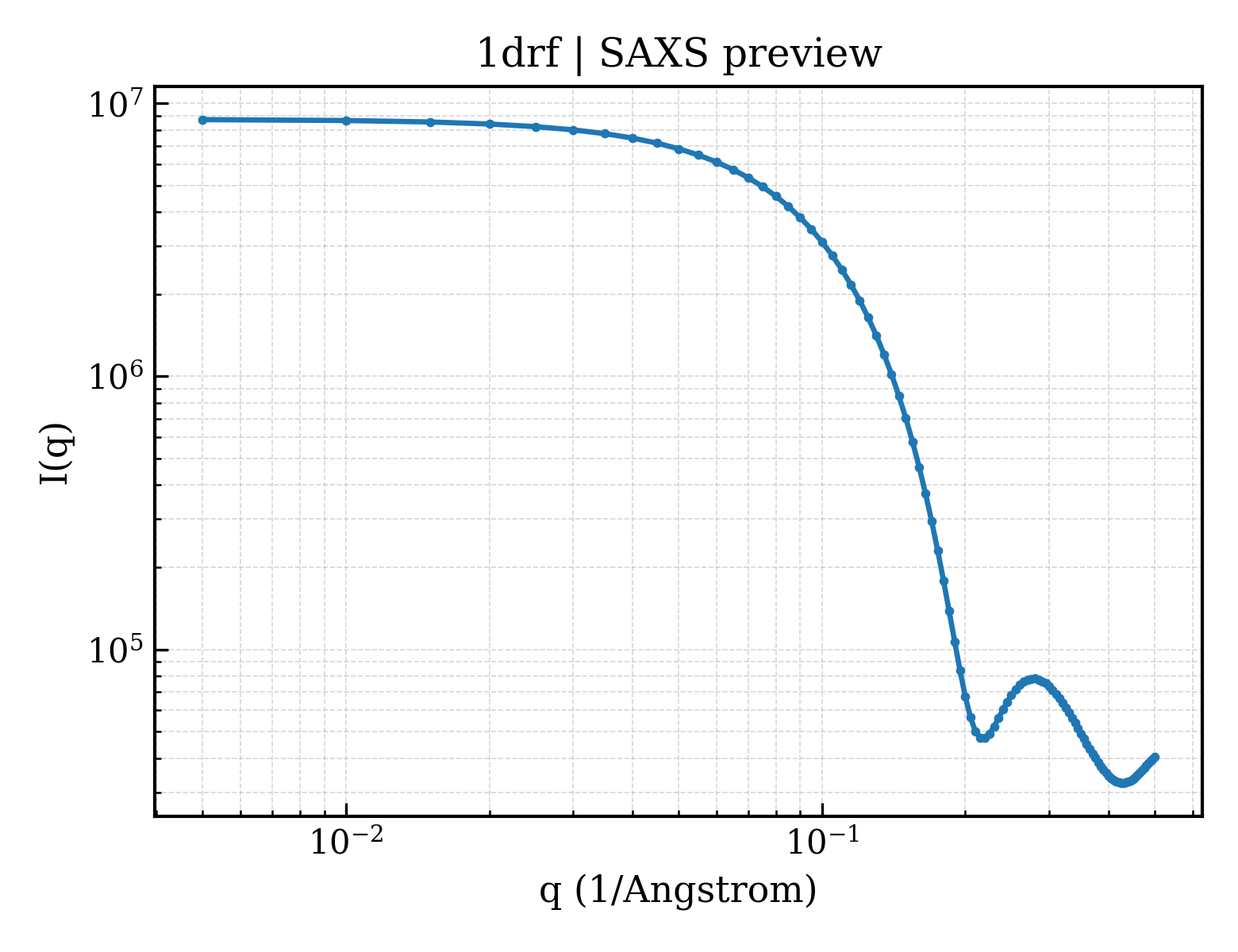

SAXS Profile

SAXS profile for 1drf

P(r) Distribution

P(r) distribution for 1drf
▼

1. Structure Basics

entry_id1drf
deposition_date1990-08-09
titleCRYSTAL STRUCTURE OF HUMAN DIHYDROFOLATE REDUCTASE COMPLEXED WITH FOLATE
keywordsOXIDOREDUCTASE (CH-NH(D)-NAD OR NADP(A)); OXIDOREDUCTASE (CH-NH(D)-NAD OR NADP(A))
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier17.28 Å
rg_electron16.02 Å
i08736610.00
molecular_weight21883.0 kDa
excluded_volume27445 ų
envelope_volume31327 ų
shell_volume16203 ų
envelope_diameter54.8 Å
shell_rg22.30 Å
envelope_rg16.32 Å
shape_rg16.01 Å
total_rg17.14 Å
total_atoms1539
n_residues186
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax55.2 Å
rg_real17.15 Å
rg_real_error0.28 Å
i0_real8.7370e+06
i0_real_error1.0630e+05
rg_reciprocal17.16 Å
i0_reciprocal8737000.0000
total_estimate0.8827
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary23.3 Å
skewness0.114
kurtosis-0.370
angular_range— – 0.4600 Å−1
current_alpha0.0000
highest_alpha2383000.0000
n_real_points77
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.827; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.996
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

▶

6. Citations (1)

▶

7. Files & Curves (10)
