1ohj

HUMAN DIHYDROFOLATE REDUCTASE, MONOCLINIC (P21) CRYSTAL FORM

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DIHYDROFOLATE REDUCTASE

Homo sapiens

UniProt P00374

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 N-(4-CARBOXY-4-{4-[(2,4-DIAMINO-PTERIDIN-6-YLMETHYL)-AMINO]-BENZOYLAMINO}-BUTYL)-PHTHALAMIC ACID × 1 water × 1 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1boz 1dlr 1dls 1drf 1hfp 1hfq 1hfr 1kms 1kmv 1mvs 1mvt 1ohj

103 assemblies; showing the first 12

Homodimer
1dhf 2dhf

2 assemblies

Homotetramer

None

Other homooligomers
3s3v

1 assemblies

Heteromeric or nucleic-acid complex

None

View Construct and Data Evidence
UniProt name DYR_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–186； UniProt 1–186

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1ohj
Deposition date deposition_date1997-09-17
Structure title titleHUMAN DIHYDROFOLATE REDUCTASE, MONOCLINIC (P21) CRYSTAL FORM
Keywords keywordsOXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ohj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

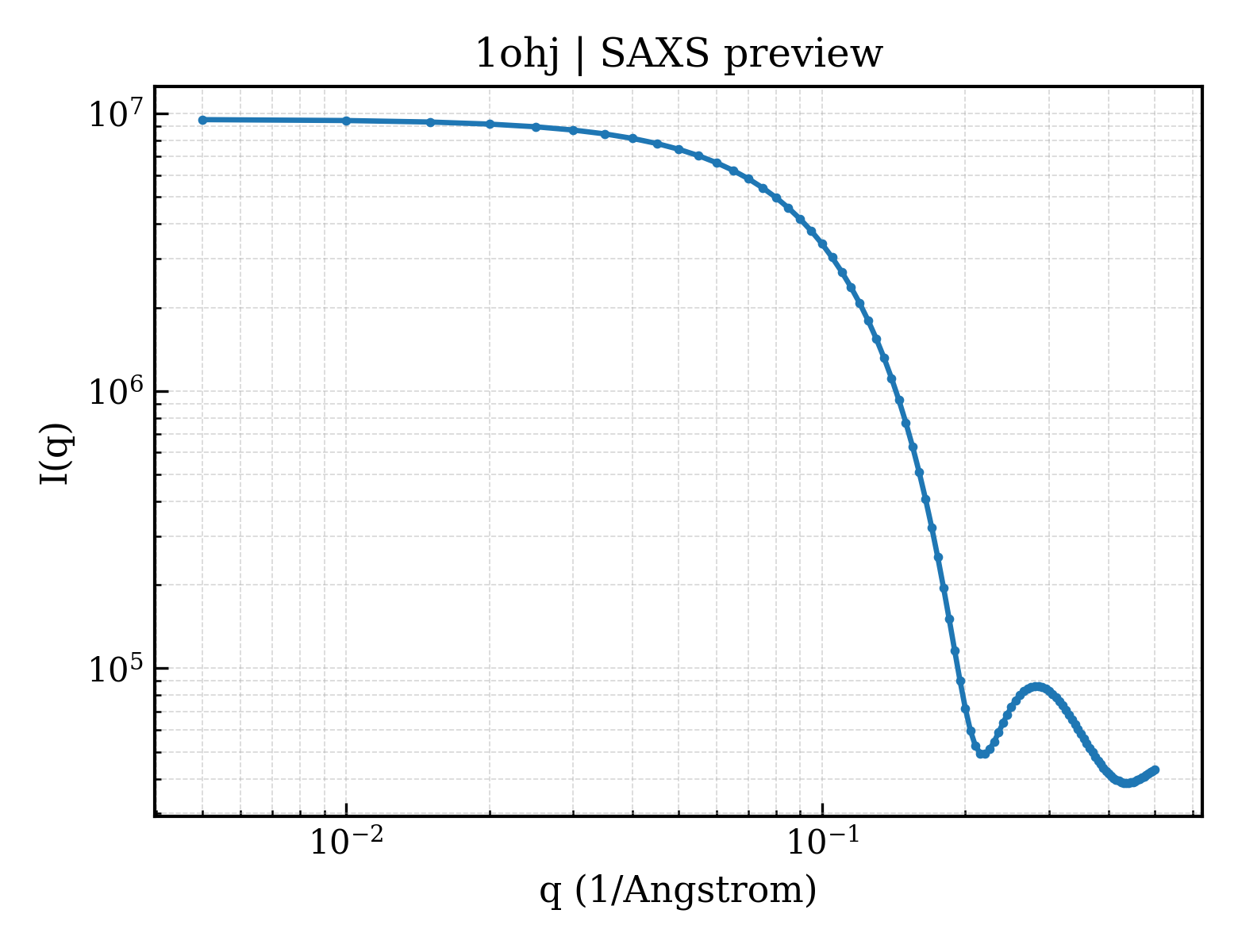

1ohj__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

1ohj__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）17.28 Å
Rg (electron density)16.07 Å
Total Rg17.19 Å
Atom count1592
Residues186
Excluded volume28292 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 1ohj__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd1ohja_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.71 — Dihydrofolate reductase-like
Superfamily Superfamily superfamilyc.71.1 — Dihydrofolate reductase-like
Family Family familyc.71.1.1 — Dihydrofolate reductases

CATH v4.4 (1 domains)

Domain ID domain_id1ohjA00
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology430 — Dihydrofolate Reductase, subunit A
Homologous superfamily homologous superfamily10 — Dihydrofolate Reductase, subunit A
▶

7. Citations (4)
