1dsl
GAMMA B CRYSTALLIN C-TERMINAL DOMAIN

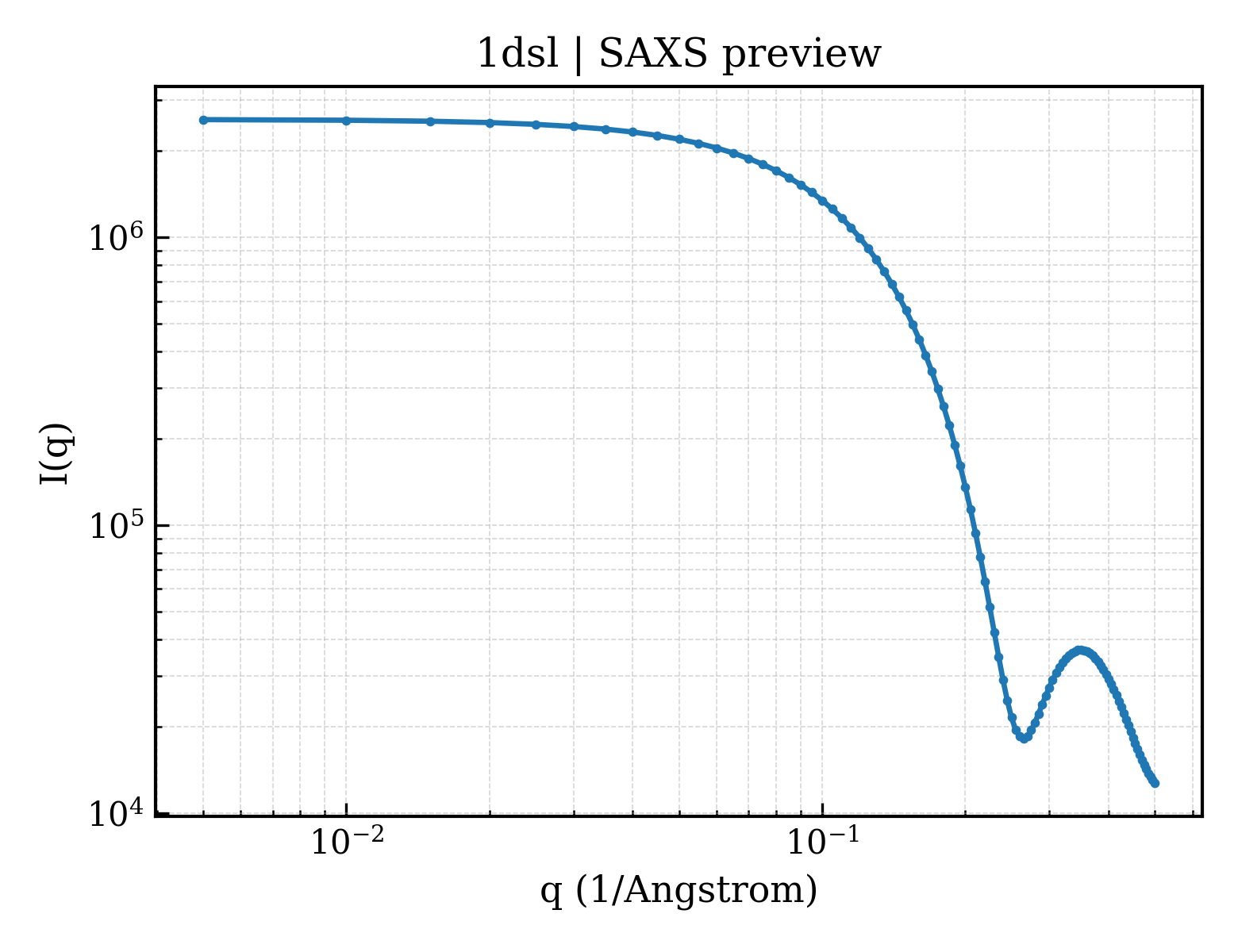

SAXS Profile

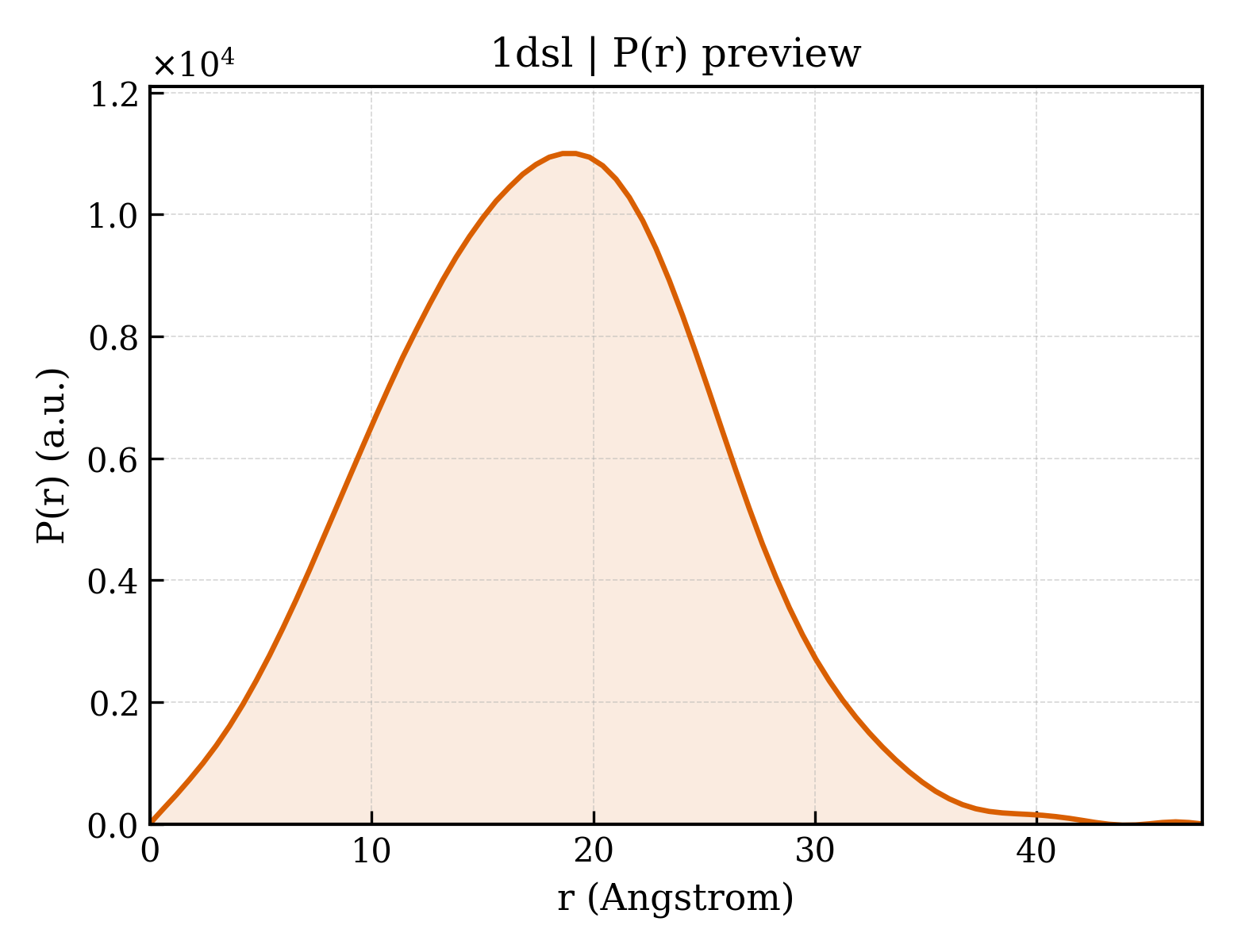

P(r) Distribution
1. Structure Basics
| entry_id | 1dsl |
| deposition_date | 1996-02-01 |
| title | GAMMA B CRYSTALLIN C-TERMINAL DOMAIN |
| keywords | EYE LENS PROTEIN, MULTIGENE FAMILY; EYE LENS PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.82 Å |
| rg_electron | 12.33 Å |
| i0 | 2566030.00 |
| molecular_weight | 10692.0 kDa |
| excluded_volume | 13208 ų |
| envelope_volume | 14707 ų |
| shell_volume | 10223 ų |
| envelope_diameter | 47.1 Å |
| shell_rg | 18.02 Å |
| envelope_rg | 12.79 Å |
| shape_rg | 12.31 Å |
| total_rg | 13.71 Å |
| total_atoms | 752 |
| n_residues | 88 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.5 Å |
| rg_real | 13.71 Å |
| rg_real_error | 0.37 Å |
| i0_real | 2.5660e+06 |
| i0_real_error | 3.1030e+04 |
| rg_reciprocal | 13.72 Å |
| i0_reciprocal | 2566000.0000 |
| total_estimate | 0.8483 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 46.3 Å |
| skewness | 0.113 |
| kurtosis | -0.256 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 625700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.681; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.982 |
