1dsq
STRUCTURE OF THE MMTV NUCLEOCAPSID PROTEIN (ZINC FINGER 1)

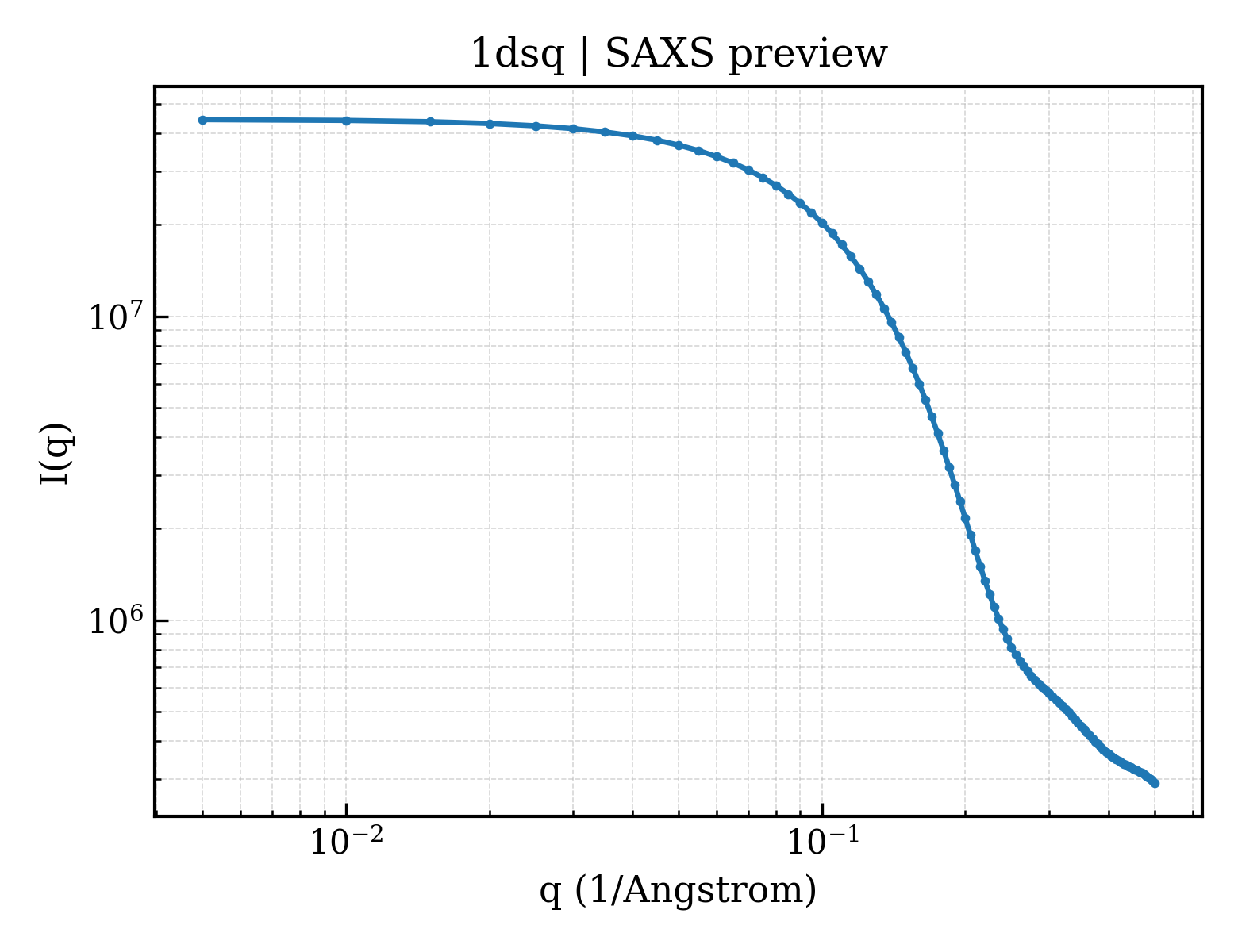

SAXS Profile

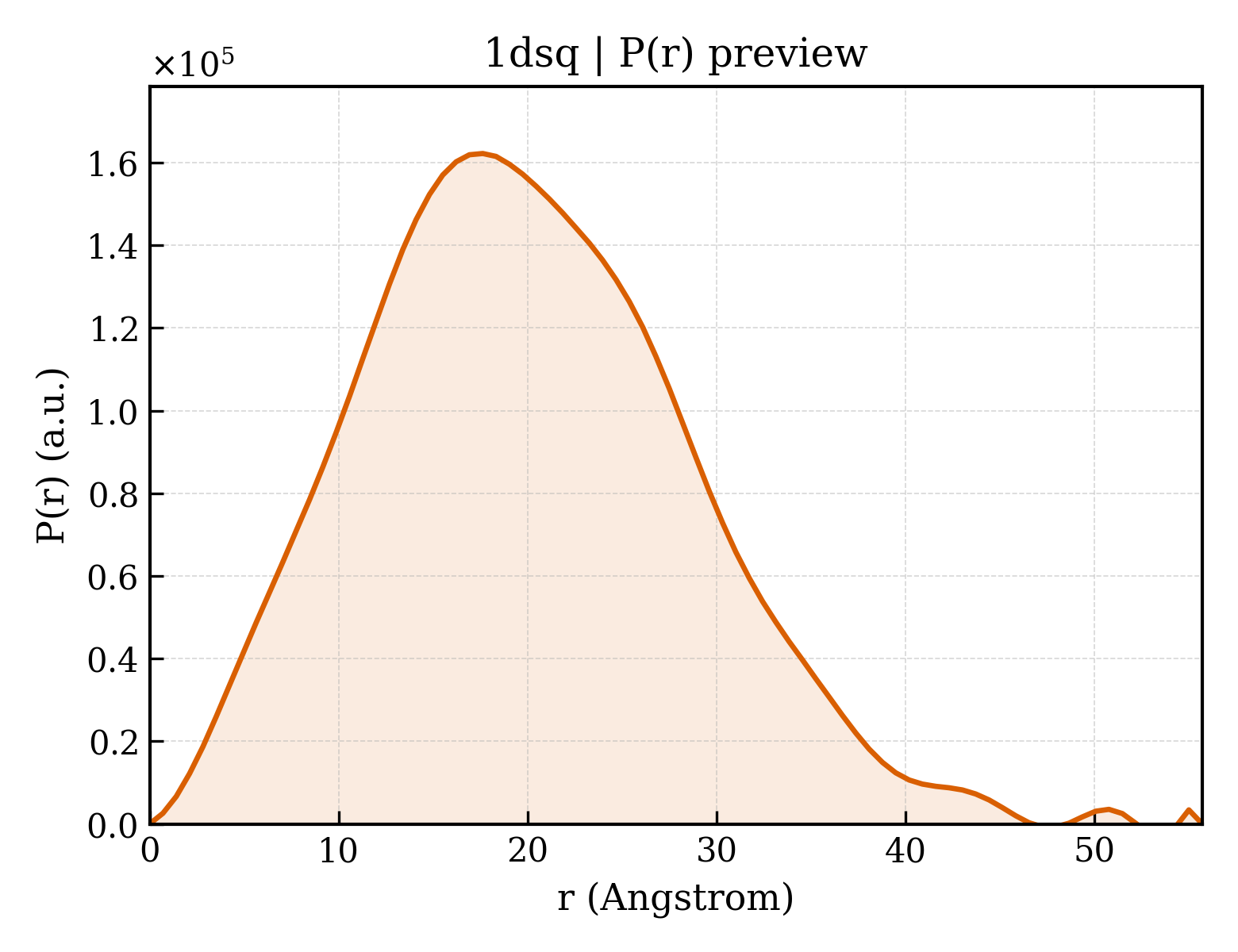

P(r) Distribution
1. Structure Basics
| entry_id | 1dsq |
| deposition_date | 2000-01-08 |
| title | STRUCTURE OF THE MMTV NUCLEOCAPSID PROTEIN (ZINC FINGER 1) |
| keywords | CCHC TYPE ZINC FINGER, VIRUS/VIRAL PROTEIN, Viral protein; VIRAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.31 Å |
| rg_electron | 14.46 Å |
| i0 | 44467600.00 |
| molecular_weight | 47462.0 kDa |
| excluded_volume | 57086 ų |
| envelope_volume | 35643 ų |
| shell_volume | 17487 ų |
| envelope_diameter | 59.5 Å |
| shell_rg | 23.24 Å |
| envelope_rg | 17.24 Å |
| shape_rg | 14.44 Å |
| total_rg | 15.30 Å |
| total_atoms | 6340 |
| n_residues | 420 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 55.7 Å |
| rg_real | 15.29 Å |
| rg_real_error | 0.48 Å |
| i0_real | 4.4470e+07 |
| i0_real_error | 5.9610e+05 |
| rg_reciprocal | 15.29 Å |
| i0_reciprocal | 44470000.0000 |
| total_estimate | 0.7551 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 17.6 Å |
| skewness | 0.334 |
| kurtosis | -0.125 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 588600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.635; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.915; Smooth: 0.000 |
