1dsv
STRUCTURE OF THE MMTV NUCLEOCAPSID PROTEIN (C-TERMINAL ZINC FINGER)

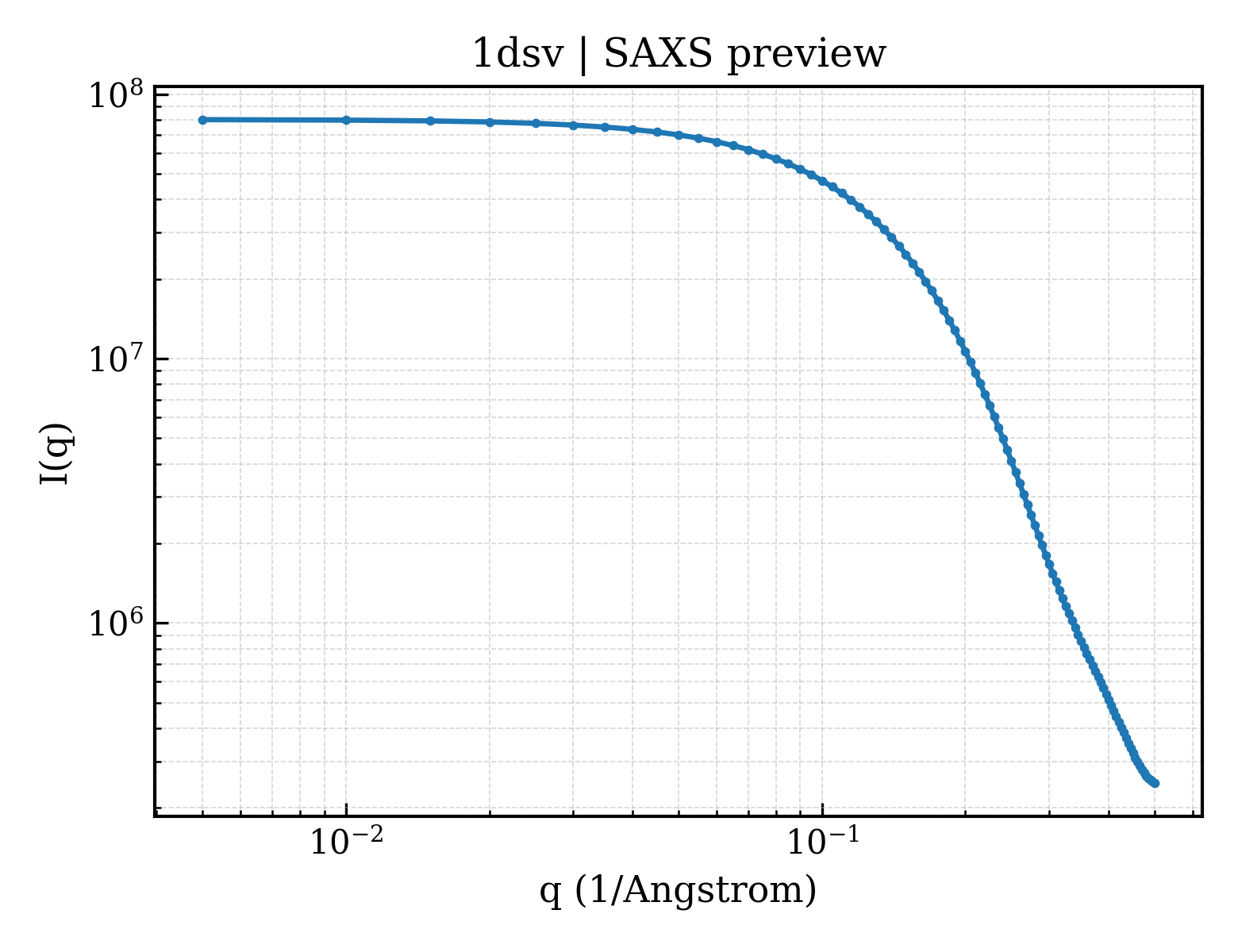

SAXS Profile

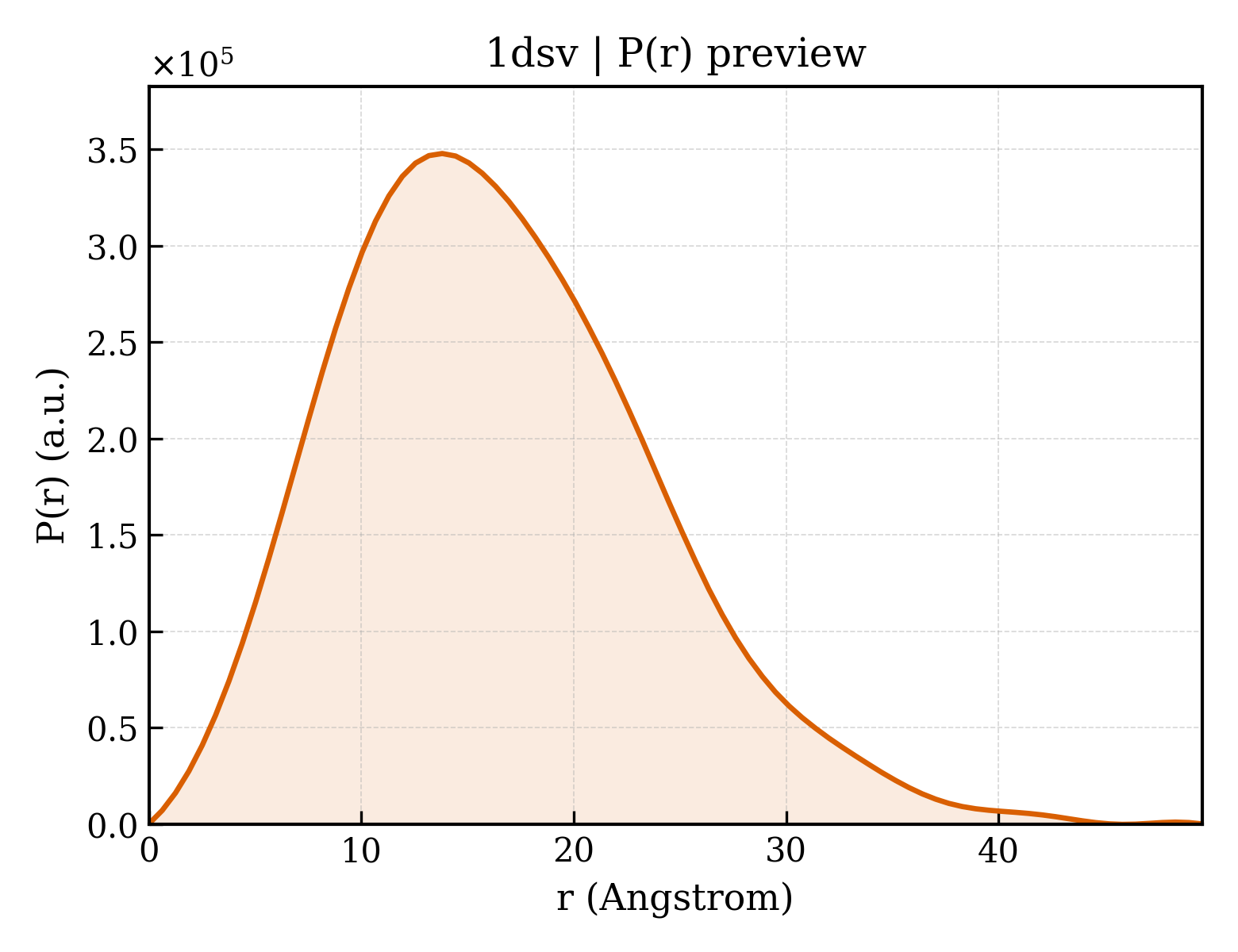

P(r) Distribution
1. Structure Basics
| entry_id | 1dsv |
| deposition_date | 2000-01-08 |
| title | STRUCTURE OF THE MMTV NUCLEOCAPSID PROTEIN (C-TERMINAL ZINC FINGER) |
| keywords | CCHC type zinc finger, VIRUS/VIRAL PROTEIN, Viral protein; VIRAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.67 Å |
| rg_electron | 12.65 Å |
| i0 | 80247700.00 |
| molecular_weight | 71330.0 kDa |
| excluded_volume | 88298 ų |
| envelope_volume | 32118 ų |
| shell_volume | 16511 ų |
| envelope_diameter | 51.4 Å |
| shell_rg | 22.54 Å |
| envelope_rg | 16.38 Å |
| shape_rg | 12.70 Å |
| total_rg | 13.12 Å |
| total_atoms | 9740 |
| n_residues | 620 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.6 Å |
| rg_real | 12.71 Å |
| rg_real_error | 0.48 Å |
| i0_real | 8.0250e+07 |
| i0_real_error | 9.9220e+05 |
| rg_reciprocal | 12.71 Å |
| i0_reciprocal | 80250000.0000 |
| total_estimate | 0.7750 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 13.8 Å |
| skewness | 0.526 |
| kurtosis | 0.153 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1072000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.494; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.597; Smooth: 0.992 |
