1dub

2-ENOYL-COA HYDRATASE, DATA COLLECTED AT 100 K, PH 6.5

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

2-ENOYL-COA HYDRATASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	ACETOACETYL-COENZYME A × 5 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ECHM_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–261； UniProt 30–290 Author chain B； PDBConstruct 1–261； UniProt 30–290 Author chain C； PDBConstruct 1–261； UniProt 30–290 Author chain D； PDBConstruct 1–261； UniProt 30–290 Author chain E； PDBConstruct 1–261； UniProt 30–290 Author chain F； PDBConstruct 1–261； UniProt 30–290

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dub
Deposition date deposition_date	1996-06-10
Structure title title	2-ENOYL-COA HYDRATASE, DATA COLLECTED AT 100 K, PH 6.5
Keywords keywords	BETA-OXIDATION, COA, CROTONASE, ENOYL-COA HYDRATASE, FATTY ACID METABOLISM, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1dub__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1dub__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

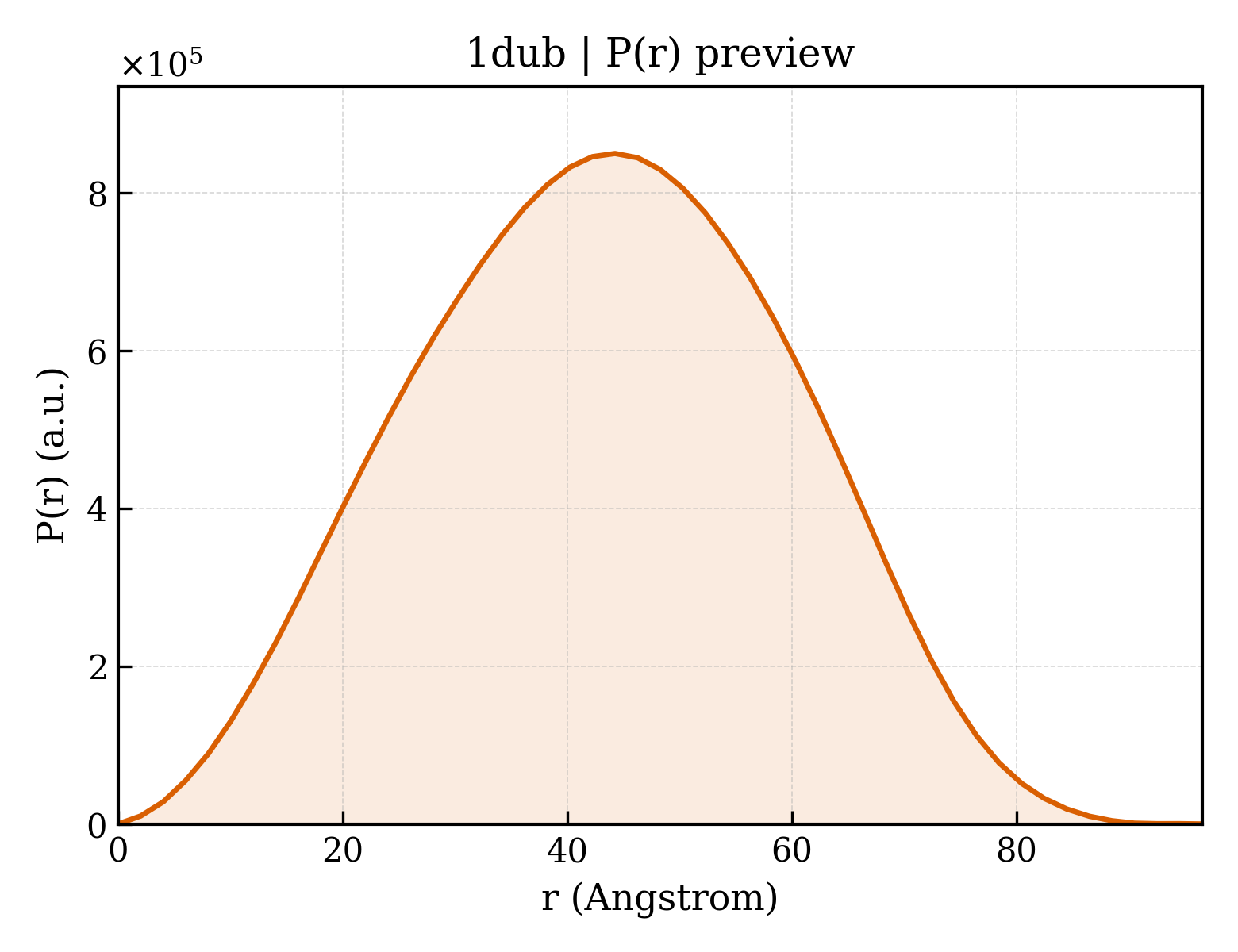

1dub__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.96 Å
Rg (electron density)	31.69 Å
Total Rg	32.42 Å
Atom count	12111
Residues	1557
Excluded volume	216150 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1dub__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	2-ENOYL-COA HYDRATASE
Molecular weight formula_weight	28321.5 kDa
EC 编号 ec_number	4.2.1.17
Source method src_method	nat
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	12706

GANFQYIITEKKGKNSSVGLIQLNRPKALNALCNGLIEELNQALETFEEDPAVGAIVLTGGEKAFAAGADIKEMQNRTFQDCYSGKFLSHWDHITRIKKPVIAAVNGYALGGGCELAMMCDIIYAGEKAQFGQPEILLGTIPGAGGTQRLTRAVGKSLAMEMVLTGDRISAQDAKQAGLVSKIFPVETLVEEAIQCAEKIANNSKIIVAMAKESVNAAFEMTLTEGNKLEKKLFYSTFATDDRREGMSAFVEKRKANFKDH

Entity 2 Entity 2 non-polymer

Description description	ACETOACETYL-COENZYME A
Molecular weight formula_weight	851.6 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	595

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1duba_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.3 — Crotonase-like

Domain ID domain_id	d1dubb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.3 — Crotonase-like

Domain ID domain_id	d1dubc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.3 — Crotonase-like

Domain ID domain_id	d1dubd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.3 — Crotonase-like

Domain ID domain_id	d1dube_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.3 — Crotonase-like

Domain ID domain_id	d1dubf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.3 — Crotonase-like

CATH v4.4 (12 domains)

Domain ID domain_id	1dubA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1dubA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	12 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lyase 2-enoyl-coa Hydratase, Chain A, domain 2

Domain ID domain_id	1dubB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1dubB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	12 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lyase 2-enoyl-coa Hydratase, Chain A, domain 2

Domain ID domain_id	1dubC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1dubC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	12 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lyase 2-enoyl-coa Hydratase, Chain A, domain 2

Domain ID domain_id	1dubD01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1dubD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	12 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lyase 2-enoyl-coa Hydratase, Chain A, domain 2

Domain ID domain_id	1dubE01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1dubE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	12 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lyase 2-enoyl-coa Hydratase, Chain A, domain 2

Domain ID domain_id	1dubF01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1dubF02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	12 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Lyase 2-enoyl-coa Hydratase, Chain A, domain 2

▶

Unit-cell length a length_a	75.972 Å
Unit-cell length b length_b	93.635 Å
Unit-cell length c length_c	246.818 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2090
R_work r_work	0.2090
R_free r_free	0.2650
