1dud
;DEOXYURIDINE 5'-TRIPHOSPHATE NUCLEOTIDE HYDROLASE (D-UTPASE) COMPLEXED WITH THE SUBSTRATE ANALOGUE DEOXYURIDINE 5'-DIPHOSPHATE (D-UDP) ;
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dud |
| deposition_date | 1996-04-30 |
| title | ;DEOXYURIDINE 5'-TRIPHOSPHATE NUCLEOTIDE HYDROLASE (D-UTPASE) COMPLEXED WITH THE SUBSTRATE ANALOGUE DEOXYURIDINE 5'-DIPHOSPHATE (D-UDP) ; |
| keywords | HYDROLASE, NUCLEOTIDE METABOLISM, D-UTPASE, SUBSTRATE ANALOGUE, D-UDP COMPLEX; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.06 Å |
| rg_electron | 17.13 Å |
| i0 | 4467130.00 |
| molecular_weight | 15024.0 kDa |
| excluded_volume | 18834 ų |
| envelope_volume | 24194 ų |
| shell_volume | 12940 ų |
| envelope_diameter | 68.8 Å |
| shell_rg | 22.01 Å |
| envelope_rg | 18.23 Å |
| shape_rg | 17.20 Å |
| total_rg | 17.90 Å |
| total_atoms | 1051 |
| n_residues | 136 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

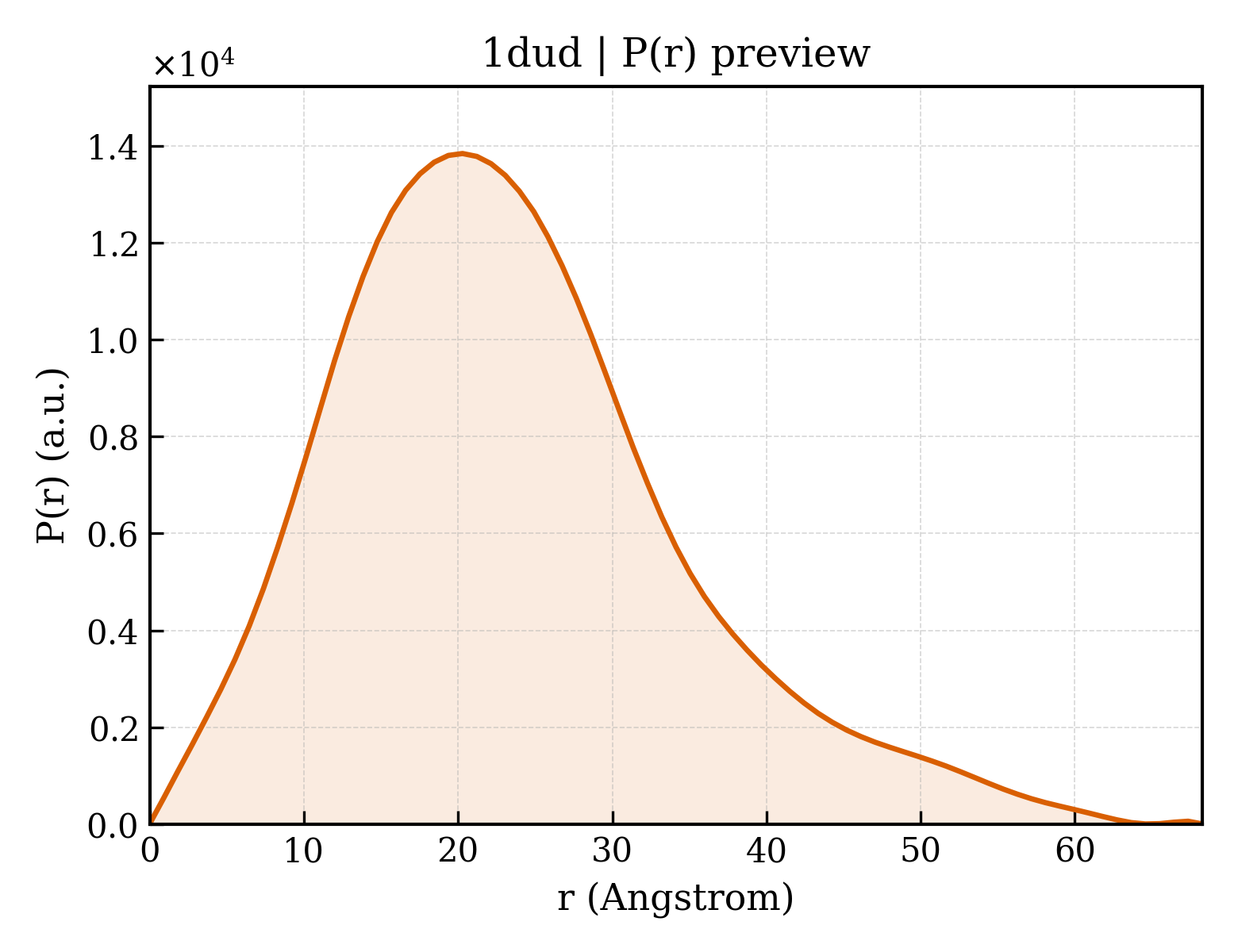

3. P(r) Analysis (GNOM)
| dmax | 68.3 Å |
| rg_real | 18.25 Å |
| rg_real_error | 0.69 Å |
| i0_real | 4.4670e+06 |
| i0_real_error | 5.9460e+04 |
| rg_reciprocal | 18.23 Å |
| i0_reciprocal | 4467000.0000 |
| total_estimate | 0.7904 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.3 Å |
| skewness | 0.685 |
| kurtosis | 0.426 |
| angular_range | — – 0.4400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 740600.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.509; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.793; Smooth: 0.952 |
