SAXSdb — 1dup

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;DEOXYURIDINE 5'-TRIPHOSPHATE NUCLEOTIDOHYDROLASE ;

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DUT_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–152； UniProt 1–151

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dup
Deposition date deposition_date	1995-09-01
Structure title title	DEOXYURIDINE 5'-TRIPHOSPHATE NUCLEOTIDO HYDROLASE (D-UTPASE)
Keywords keywords	HYDROLASE, NUCLEOTIDE METABOLISM; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1dup__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1dup__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

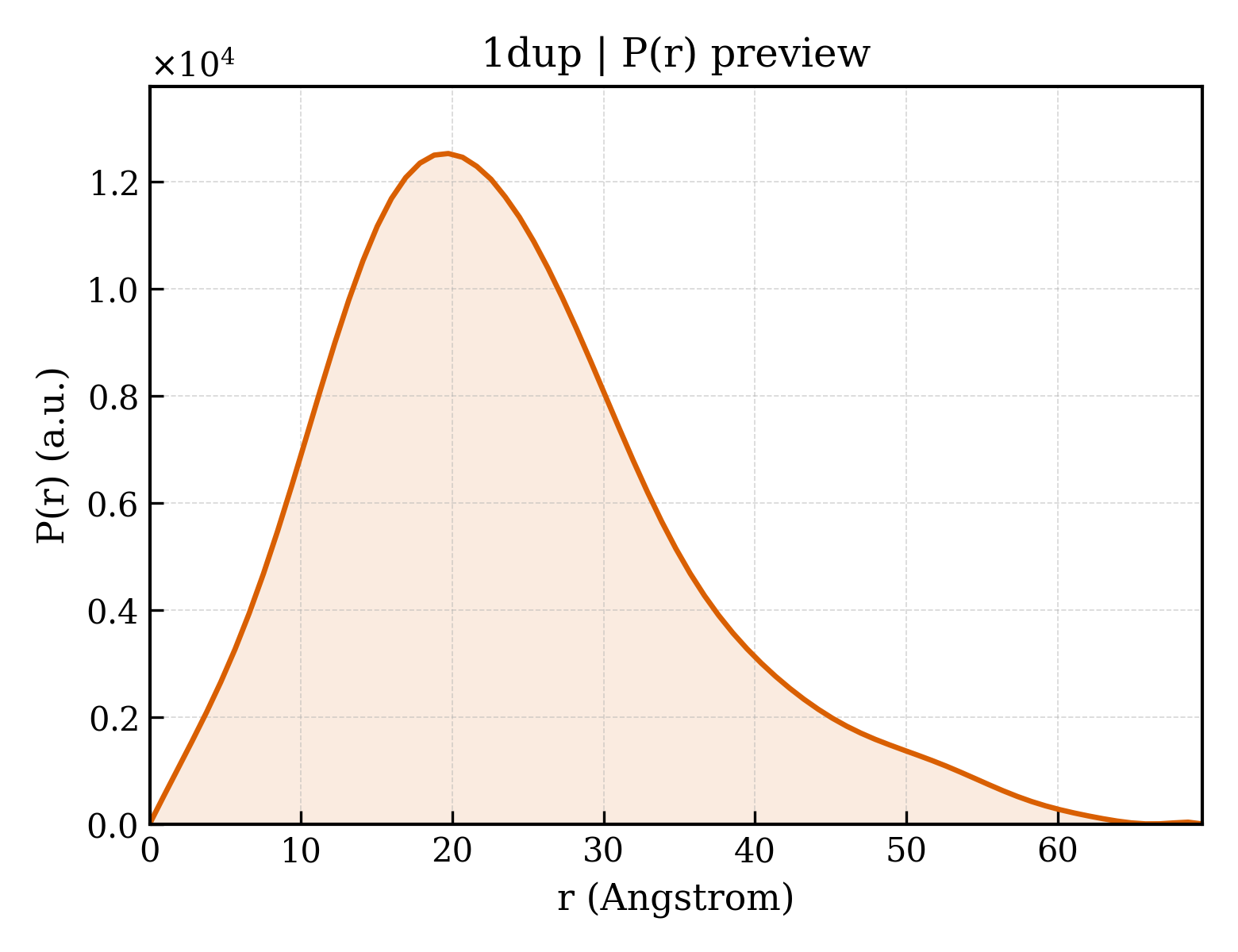

1dup__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.29 Å
Rg (electron density)	20.99 Å
Total Rg	21.84 Å
Atom count	3081
Residues	408
Excluded volume	55490 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1dup__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1dupa1
Class class	b — All beta proteins
Fold Fold fold	b.85 — beta-clip
Superfamily Superfamily superfamily	b.85.4 — dUTPase-like
Family Family family	b.85.4.1 — dUTPase-like

Domain ID domain_id	d1dupa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	1dupA00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	40 — Deoxyuridine 5'-Triphosphate Nucleotidohydrolase; Chain A
Homologous superfamily homologous superfamily	10 — Deoxyuridine triphosphatase (dUTPase)

▶

Unit-cell length a length_a	86.610 Å
Unit-cell length b length_b	86.610 Å
Unit-cell length c length_c	62.270 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	9

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1500
R_work r_work	—
R_free r_free	—

Description description	;DEOXYURIDINE 5'-TRIPHOSPHATE NUCLEOTIDOHYDROLASE ;
Molecular weight formula_weight	16302.6 kDa
EC 编号 ec_number	3.6.1.23
Source method src_method	nat
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1150

DEOXYURIDINE 5'-TRIPHOSPHATE NUCLEOTIDO HYDROLASE (D-UTPASE)

1. Protein Identity and Related Structures Protein Identity & Related Structures

;DEOXYURIDINE 5'-TRIPHOSPHATE NUCLEOTIDOHYDROLASE ;

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1dup__assembly_1__model_1

1dup__assembly_1__model_1 | I(q)

1dup__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

CATH v4.4 (1 domains)

7. Citations (1)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	123
