1dv6

;PHOTOSYNTHETIC REACTION CENTER FROM RHODOBACTER SPHAEROIDES IN THE CHARGE-NEUTRAL DQAQB STATE WITH THE PROTON TRANSFER INHIBITOR ZN2+ ;

Method: X-RAY DIFFRACTION D_max: 151.1 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1dv6
deposition_date	2000-01-19
title	;PHOTOSYNTHETIC REACTION CENTER FROM RHODOBACTER SPHAEROIDES IN THE CHARGE-NEUTRAL DQAQB STATE WITH THE PROTON TRANSFER INHIBITOR ZN2+ ;
keywords	;Bacterial Photosynthesis, Rhodobacter sphaeroides, Metal Ion Binding, Cation Binding, Proton Transfer, Integral Membrane Protein, PHOTOSYNTHESIS ;; PHOTOSYNTHESIS
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	52.36 Å
rg_electron	51.74 Å
i0	432863000.00
molecular_weight	195920.0 kDa
excluded_volume	253240 Å³
envelope_volume	340480 Å³
shell_volume	54284 Å³
envelope_diameter	163.7 Å
shell_rg	56.66 Å
envelope_rg	49.76 Å
shape_rg	51.67 Å
total_rg	52.20 Å
total_atoms	13909
n_residues	1652
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

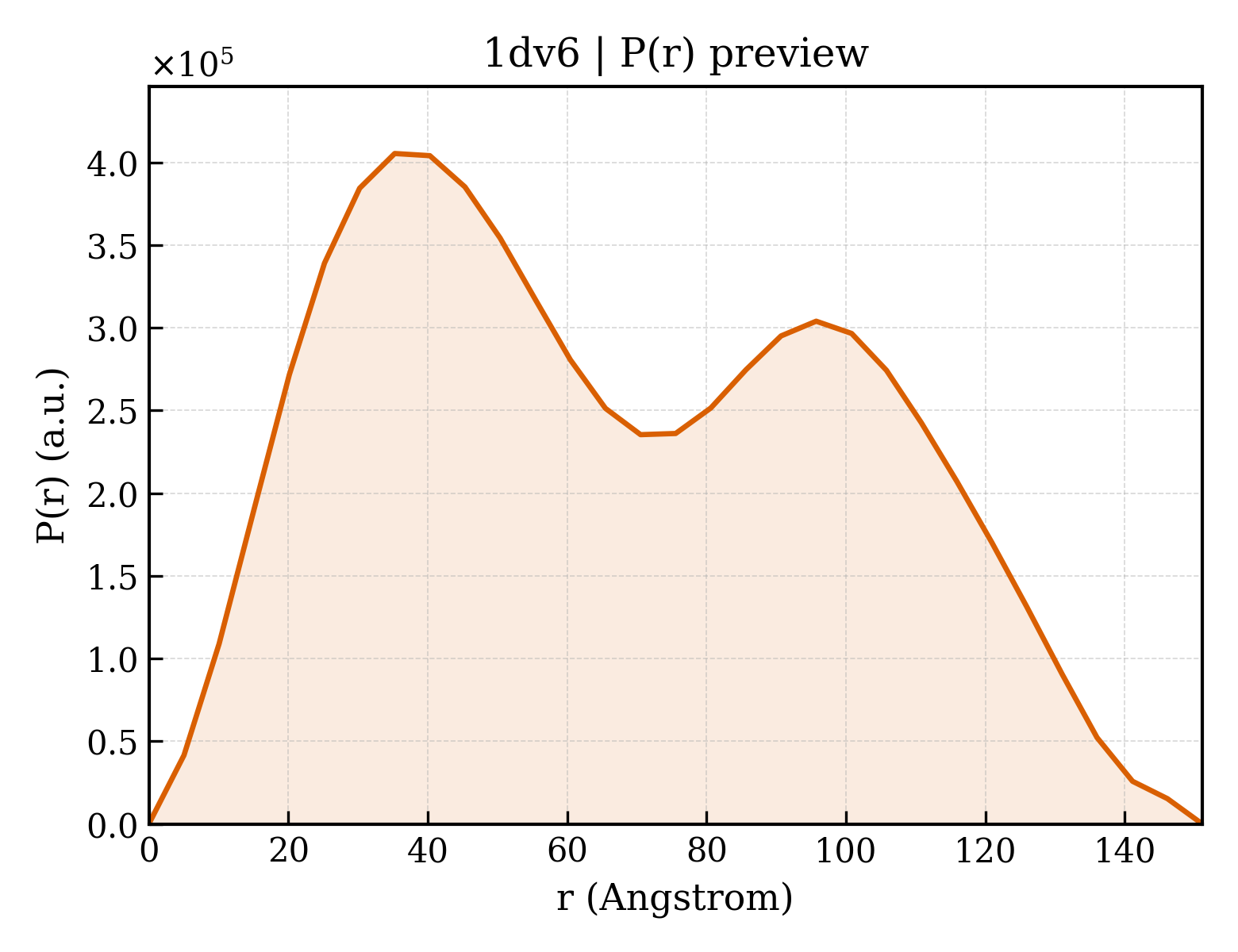

3. P(r) Analysis (GNOM)

dmax	151.1 Å
rg_real	52.59 Å
rg_real_error	1.30 Å
i0_real	4.3290e+08
i0_real_error	7.5610e+06
rg_reciprocal	52.14 Å
i0_reciprocal	432600000.0000
total_estimate	0.7682
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	35.3 Å
skewness	0.233
kurtosis	-1.049
angular_range	— – 0.1500 Å⁻¹
current_alpha	0.0000
highest_alpha	22170000.0000
n_real_points	31
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.775; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.658; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (11)

Entity 1 polymer

description	PHOTOSYNTHETIC REACTION CENTER
formula_weight	31346.4 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	L,R
atom_count	14349

ALLSFERKYRVPGGTLVGGNLFDFWVGPFYVGFFGVATFFFAALGIILIAWSAVLQGTWNPQLISVYPPALEYGLGGAPLAKGGLWQIITICATGAFVSWALREVEICRKLGIGYHIPFAFAFAILAYLTLVLFRPVMMGAWGYAFPYGIWTHLDWVSNTGYTYGNFHYNPAHMIAISFFFTNALALALHGALVLSAANPEKGKEMRTPDHEDTFFRDLVGYSIGTLGIHRLGLLLSLSAVFFSALCMIITGTIWFDQWVDWWQWWVKLPWWANIPGGING

Entity 2 polymer

description	PHOTOSYNTHETIC REACTION CENTER
formula_weight	34355.5 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	M,S

AEYQNIFSQVQVRGPADLGMTEDVNLANRSGVGPFSTLLGWFGNAQLGPIYLGSLGVLSLFSGLMWFFTIGIWFWYQAGWNPAVFLRDLFFFSLEPPAPEYGLSFAAPLKEGGLWLIASFFMFVAVWSWWGRTYLRAQALGMGKHTAWAFLSAIWLWMVLGFIRPILMGSWSEAVPYGIFSHLDWTNNFSLVHGNLFYNPFHGLSIAFLYGSALLFAMHGATILAVSRFGGERELEQIADRGTAAERAALFWRWTMGFNATMEGIHRWAIWMAVLVTLTGGIGILLSGTVVDNWYVWGQNHGMAPLA

Entity 3 polymer

description	PHOTOSYNTHETIC REACTION CENTER
formula_weight	28137.4 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	H,T

MVGVTAFQNFDLASLAIYSFWIFLAGLIYYLQTENMREGYPLENEDGTPAANQGPFPLPKPKTFILPHGRGTLTVPGPESEDRPIALARTAVSEGFPHAPTGDPMKDGVGPASWVARRDLPELDGHGHNKIKPMKAAAGFHVSAGKNPIGLPVRGCDLEIAGKVVDIWVDIPEQMARFLEVELKDGSTRLLPMQMVKVQSNRVHVNALSSDLFAGIPTIKSPTEVTLLEEDKICGYVAGGLMYAAPKRKSVVAAMLAEYA

Entity 4 non-polymer

description	BACTERIOCHLOROPHYLL A
formula_weight	911.5 kDa
src_method	syn
entity_count	8

Entity 5 non-polymer

description	BACTERIOPHEOPHYTIN A
formula_weight	889.2 kDa
src_method	syn
entity_count	4

Entity 6 non-polymer

description	UBIQUINONE-10
formula_weight	863.3 kDa
src_method	syn
entity_count	4

Entity 7 non-polymer

description	FE (II) ION
formula_weight	55.8 kDa
src_method	syn
entity_count	2

Entity 8 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	2

Entity 9 non-polymer

description	LAURYL DIMETHYLAMINE-N-OXIDE
formula_weight	229.4 kDa
src_method	syn
entity_count	4

Entity 10 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

Entity 11 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	440

▶

6. Citations (5)

▶

length_a	141.517 Å
length_b	141.517 Å
length_c	278.506 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

space_group	P 43 21 2
int_tables_number	96
crystal_system	—

resolution	2.500 Å
resolution_low	27.520 Å
r_factor	0.2450
r_work	0.2380
r_free	0.2650

fit	/app/data/saxs_computation/dv/1dv6/1dv6.fit
pddf	/app/data/pr_computation/dv/1dv6/1dv6.pr.out
profile	/app/data/saxs_computation/dv/1dv6/1dv6.dat
