1f6n

;CRYSTAL STRUCTURE ANALYSIS OF THE MUTANT REACTION CENTER PRO L209-> TYR FROM THE PHOTOSYNTHETIC PURPLE BACTERIUM RHODOBACTER SPHAEROIDES ;

Method: X-RAY DIFFRACTION D_max: 92.4 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1f6n
沉积日期 deposition_date	2000-06-22
结构标题 title	;CRYSTAL STRUCTURE ANALYSIS OF THE MUTANT REACTION CENTER PRO L209-> TYR FROM THE PHOTOSYNTHETIC PURPLE BACTERIUM RHODOBACTER SPHAEROIDES ;
关键词 keywords	amino acid displacement, PHOTOSYNTHESIS; PHOTOSYNTHESIS
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	29.79 Å
回转半径 Rg (电子) rg_electron	28.42 Å
零角强度 I(0) i0	120382000.00
分子量 molecular_weight	99745.0 kDa
排除体积 excluded_volume	129870 Å³
包络体积 envelope_volume	147380 Å³
水化壳体积 shell_volume	41549 Å³
包络直径 envelope_diameter	95.9 Å
壳层 Rg shell_rg	37.18 Å
包络 Rg envelope_rg	28.57 Å
形状 Rg shape_rg	28.42 Å
总 Rg total_rg	29.32 Å
总原子数 total_atoms	7088
残基数 n_residues	823
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

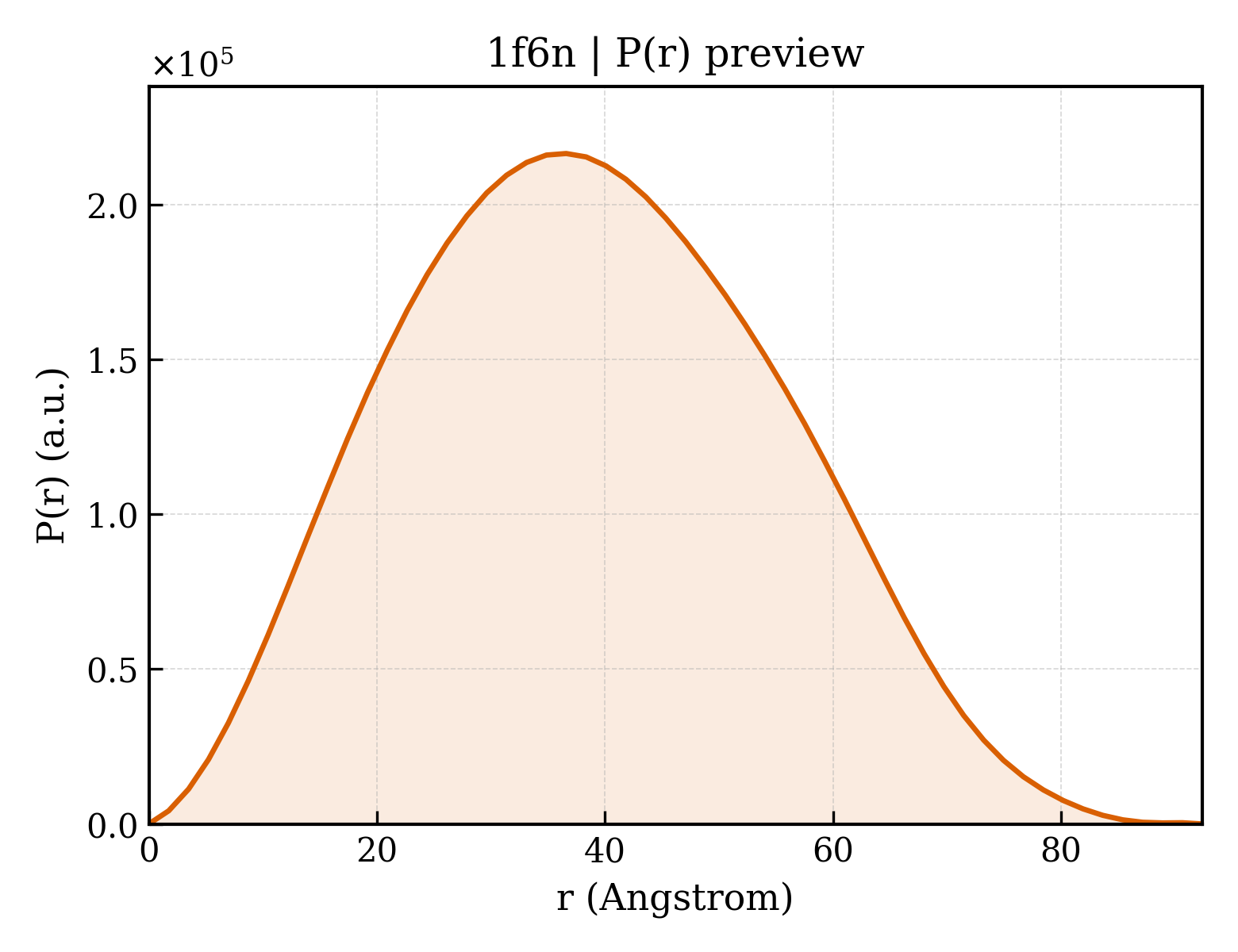

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	92.4 Å
Rg (实空间) rg_real	29.66 Å
Rg 误差 (实空间) rg_real_error	0.53 Å
I(0) (实空间) i0_real	1.2040e+08
I(0) 误差 (实空间) i0_real_error	1.7220e+06
Rg (倒空间) rg_reciprocal	29.72 Å
I(0) (倒空间) i0_reciprocal	120400000.0000
解质量估计 total_estimate	0.9089
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.6 Å
偏度 Skewness skewness	0.157
峰度 Kurtosis kurtosis	-0.569
角度范围 angular_range	— – 0.2650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	14240000.0000
实空间数据点数 n_real_points	54
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.956; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.946

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	REACTION CENTER PROTEIN L CHAIN
分子量 formula_weight	31412.4 kDa
突变 mutation	P209Y
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L
原子数 atom_count	7186

ALLSFERKYRVPGGTLVGGNLFDFWVGPFYVGFFGVATFFFAALGIILIAWSAVLQGTWNPQLISVYPPALEYGLGGAPLAKGGLWQIITICATGAFVSWALREVEICRKLGIGYHIPFAFAFAILAYLTLVLFRPVMMGAWGYAFPYGIWTHLDWVSNTGYTYGNFHYNPAHMIAISFFFTNALALALHGALVLSAANPEKGKEMRTYDHEDTFFRDLVGYSIGTLGIHRLGLLLSLSAVFFSALCMIITGTIWFDQWVDWWQWWVKLPWWANIPGGING

来源 Source

来源生物 organism	Rhodobacter sphaeroides
NCBI 分类编号 ncbi_taxonomy_id	1063
宿主生物 host_organism	Rhodobacter sphaeroides

Entity 2 polymer

描述 description	REACTION CENTER PROTEIN M CHAIN
分子量 formula_weight	34398.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

AEYQNIFSQVQVRGPADLGMTEDVNLANRSGVGPFSTLLGWFGNAQLGPIYLGSLGVLSLFSGLMWFFTIGIWFWYQAGWNPAVFLRDLFFFSLEPPAPEYGLSFAAPLKEGGLWLIASFFMFVAVWSWWGRTYLRAQALGMGKHTAWAFLSAIWLWMVLGFIRPILMGSWSEAVPYGIFSHLDWTNNFSLVHGNLFYNPFHGLSIAFLYGSALLFAMHGATILAVSRFGGERELEQIADRGTAAERAALFWRWTMGFNATMEGIHRWAIWMAVLVTLTGGIGILLSGTVVDNWYVWGQNHGMAPLN

来源 Source

来源生物 organism	Rhodobacter sphaeroides
NCBI 分类编号 ncbi_taxonomy_id	1063
宿主生物 host_organism	Rhodobacter sphaeroides

Entity 3 polymer

描述 description	REACTION CENTER PROTEIN H CHAIN
分子量 formula_weight	28066.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MVGVTAFGNFDLASLAIYSFWIFLAGLIYYLQTENMREGYPLENEDGTPAANQGPFPLPKPKTFILPHGRGTLTVPGPESEDRPIALARTAVSEGFPHAPTGDPMKDGVGPASWVARRDLPELDGHGHNKIKPMKAAAGFHVSAGKNPIGLPVRGCDLEIAGKVVDIWVDIPEQMARFLEVELKDGSTRLLPMQMVKVQSNRVHVNALSSDLFAGIPTIKSPTEVTLLEEDKICGYVAGGLMYAAPKRKSVVAAMLAEYA

来源 Source

来源生物 organism	Rhodobacter sphaeroides
NCBI 分类编号 ncbi_taxonomy_id	1063
宿主生物 host_organism	Rhodobacter sphaeroides

Entity 4 non-polymer

描述 description	BACTERIOCHLOROPHYLL A
分子量 formula_weight	911.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	BACTERIOPHEOPHYTIN A
分子量 formula_weight	889.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	UBIQUINONE-10
分子量 formula_weight	863.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 7 non-polymer

描述 description	LAURYL DIMETHYLAMINE-N-OXIDE
分子量 formula_weight	229.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 8 non-polymer

描述 description	FE (III) ION
分子量 formula_weight	55.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 9 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 10 non-polymer

描述 description	SPHEROIDENE
分子量 formula_weight	568.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 11 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	98

▼

6. 折叠分类 (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1f6nh1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.41 — PRC-barrel domain
超家族 Superfamily superfamily	b.41.1 — PRC-barrel domain
家族 Family family	b.41.1.1 — Photosynthetic reaction centre, H-chain, cytoplasmic domain

结构域编号 domain_id	d1f6nh2
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.23 — Single transmembrane helix
超家族 Superfamily superfamily	f.23.10 — Photosystem II reaction centre subunit H, transmembrane region
家族 Family family	f.23.10.1 — Photosystem II reaction centre subunit H, transmembrane region

结构域编号 domain_id	d1f6nl_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.26 — Bacterial photosystem II reaction centre, L and M subunits
超家族 Superfamily superfamily	f.26.1 — Bacterial photosystem II reaction centre, L and M subunits
家族 Family family	f.26.1.1 — Bacterial photosystem II reaction centre, L and M subunits

结构域编号 domain_id	d1f6nm_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.26 — Bacterial photosystem II reaction centre, L and M subunits
超家族 Superfamily superfamily	f.26.1 — Bacterial photosystem II reaction centre, L and M subunits
家族 Family family	f.26.1.1 — Bacterial photosystem II reaction centre, L and M subunits

CATH v4.4 (6 domains)

结构域编号 domain_id	1f6nH01
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	540 — Photosynthetic Reaction Center; Chain H, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Photosynthetic reaction centre, H subunit, N-terminal domain

结构域编号 domain_id	1f6nH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	50 — Photosynthetic Reaction Center; Chain H, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Photosynthetic Reaction Center, subunit H, domain 2

结构域编号 domain_id	1f6nL01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Photosystem II protein D1-like

结构域编号 domain_id	1f6nL02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Photosystem II protein D1-like

结构域编号 domain_id	1f6nM01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Photosystem II protein D1-like

结构域编号 domain_id	1f6nM02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Photosystem II protein D1-like

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	141.535 Å
晶胞边长 b length_b	141.535 Å
晶胞边长 c length_c	187.913 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 31 2 1
空间群编号 int_tables_number	152
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2210
R_work r_work	0.2210
R_free r_free	0.2500

fit	/app/data/saxs_computation/f6/1f6n/1f6n.fit
pddf	/app/data/pr_computation/f6/1f6n/1f6n.pr.out
profile	/app/data/saxs_computation/f6/1f6n/1f6n.dat
