1dwn
Structure of bacteriophage PP7 from Pseudomonas aeruginosa at 3.7 A resolution

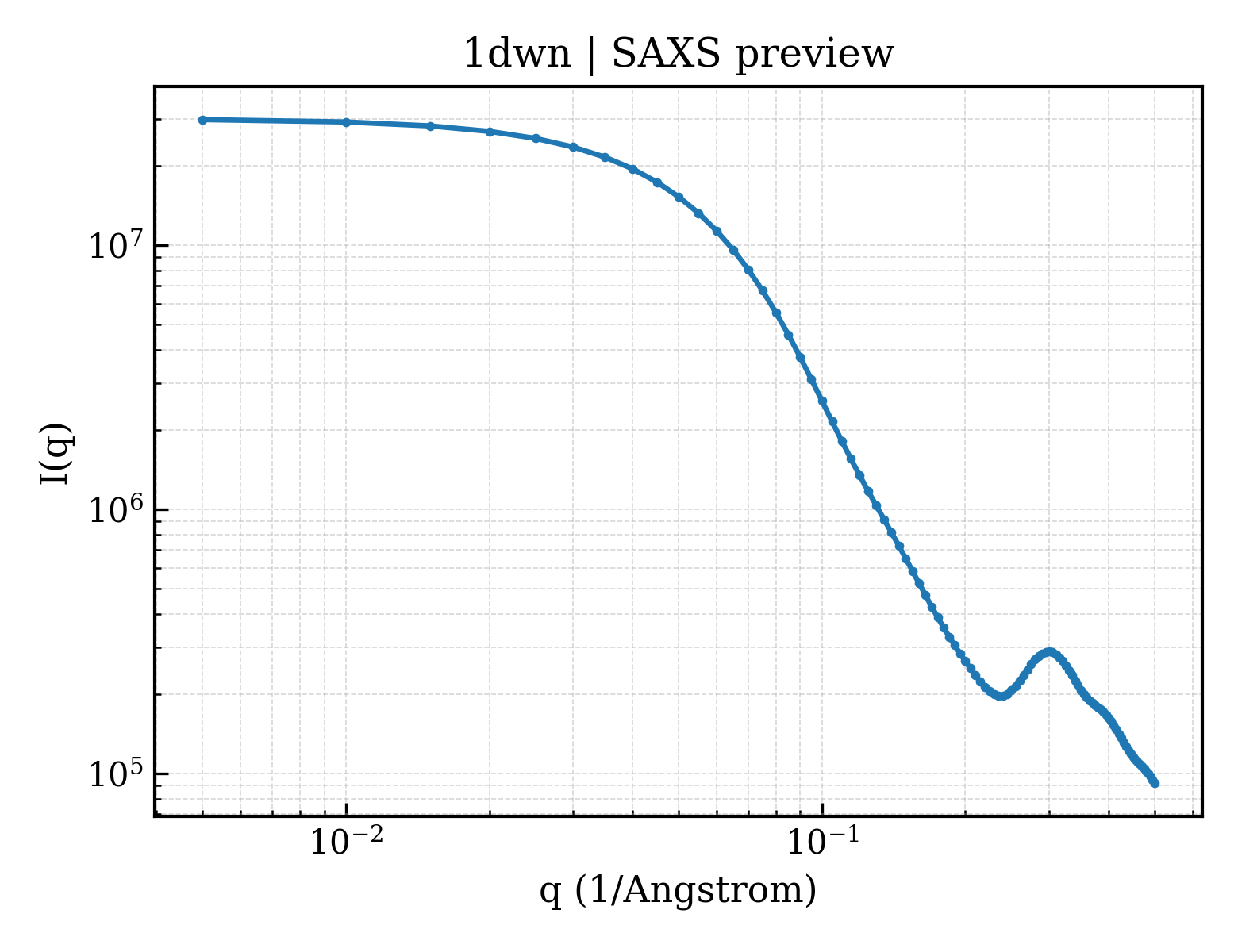

SAXS Profile

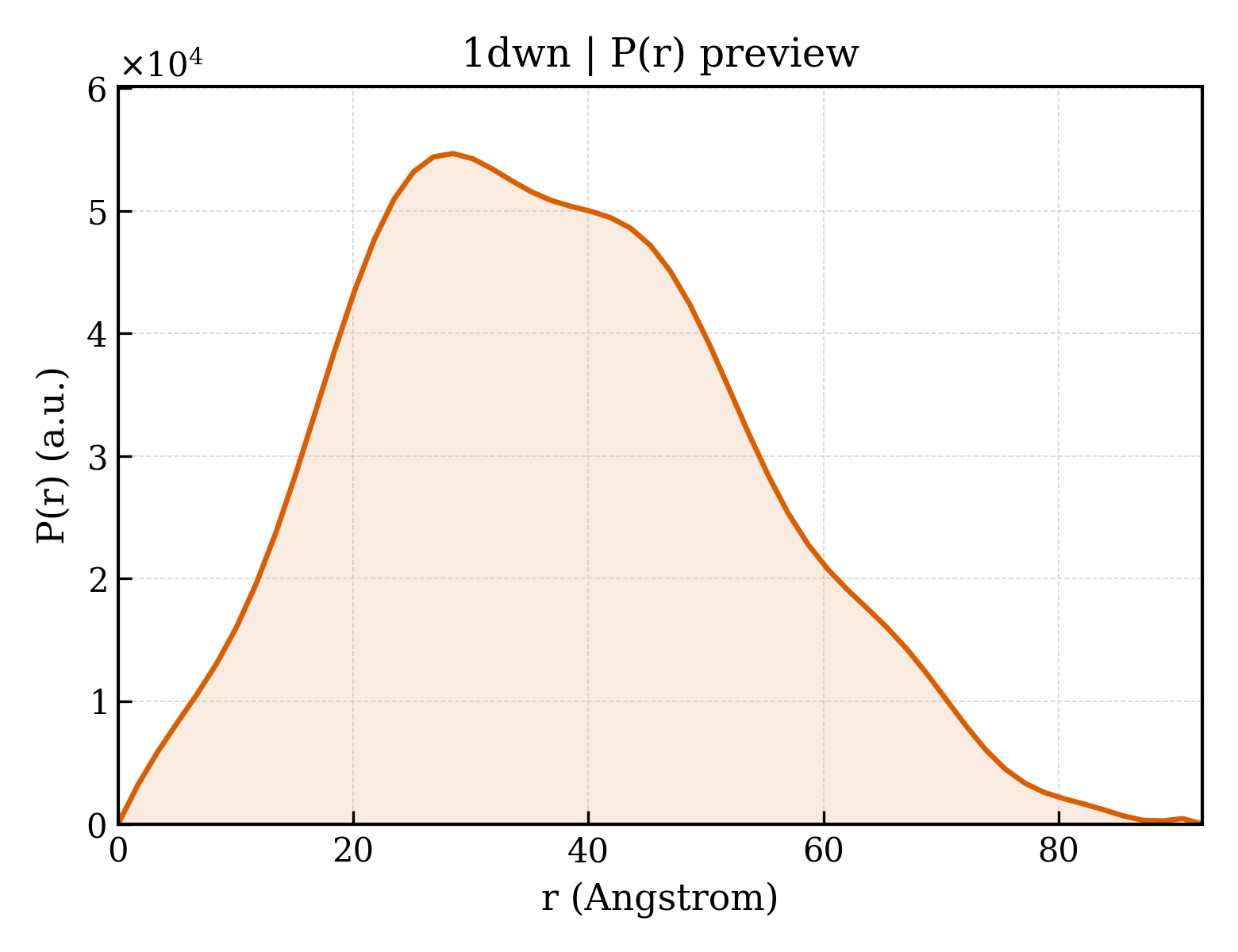

P(r) Distribution
1. Structure Basics
| entry_id | 1dwn |
| deposition_date | 1999-12-09 |
| title | Structure of bacteriophage PP7 from Pseudomonas aeruginosa at 3.7 A resolution |
| keywords | VIRUS, PHAGE, BACTERIOPHAGE, COAT PROTEIN, ICOSAHEDRAL VIRUS; VIRUS |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 28.59 Å |
| rg_electron | 27.78 Å |
| i0 | 30018500.00 |
| molecular_weight | 41363.0 kDa |
| excluded_volume | 51902 ų |
| envelope_volume | 80856 ų |
| shell_volume | 25766 ų |
| envelope_diameter | 95.7 Å |
| shell_rg | 32.88 Å |
| envelope_rg | 27.23 Å |
| shape_rg | 27.74 Å |
| total_rg | 28.55 Å |
| total_atoms | 2904 |
| n_residues | 381 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 92.2 Å |
| rg_real | 28.59 Å |
| rg_real_error | 0.67 Å |
| i0_real | 3.0020e+07 |
| i0_real_error | 4.0640e+05 |
| rg_reciprocal | 28.59 Å |
| i0_reciprocal | 30020000.0000 |
| total_estimate | 0.8880 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 28.5 Å |
| skewness | 0.293 |
| kurtosis | -0.415 |
| angular_range | — – 0.2750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3996000.0000 |
| n_real_points | 56 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.882; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.908 |
