SAXSdb — 1dwx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NITRIC OXIDE SYNTHASE

MUS MUSCULUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PROTOPORPHYRIN IX CONTAINING FE × 2 5,6,7,8-TETRAHYDROBIOPTERIN × 2 SULFATE ION × 2 N-OMEGA-HYDROXY-L-ARGININE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	PROTOPORPHYRIN IX CONTAINING FE × 2 5,6,7,8-TETRAHYDROBIOPTERIN × 2 N-OMEGA-HYDROXY-L-ARGININE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NOS2_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–420； UniProt 77–496 Author chain B； PDBConstruct 1–420； UniProt 77–496

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dwx
Deposition date deposition_date	1999-12-14
Structure title title	MURINE INDUCIBLE NITRIC OXIDE SYNTHASE OXYGENASE DIMER N-hydroxyarginine and tetrahydrobiopterin
Keywords keywords	;OXIDOREDUCTASE TRANSFERASE COMPLEX, COMPLEX (OXIDOREDUCTASE-TRANSFERASE), NITRIC OXIDE MONOOXYGENASE, HEME, DIMER, INTERMEDIATE, PTERIN, H4B, TETRAHYDROBIOPTERIN, OXIDOREDUCTASE-TRANSFERASE complex ;; OXIDOREDUCTASE/TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1dwx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1dwx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

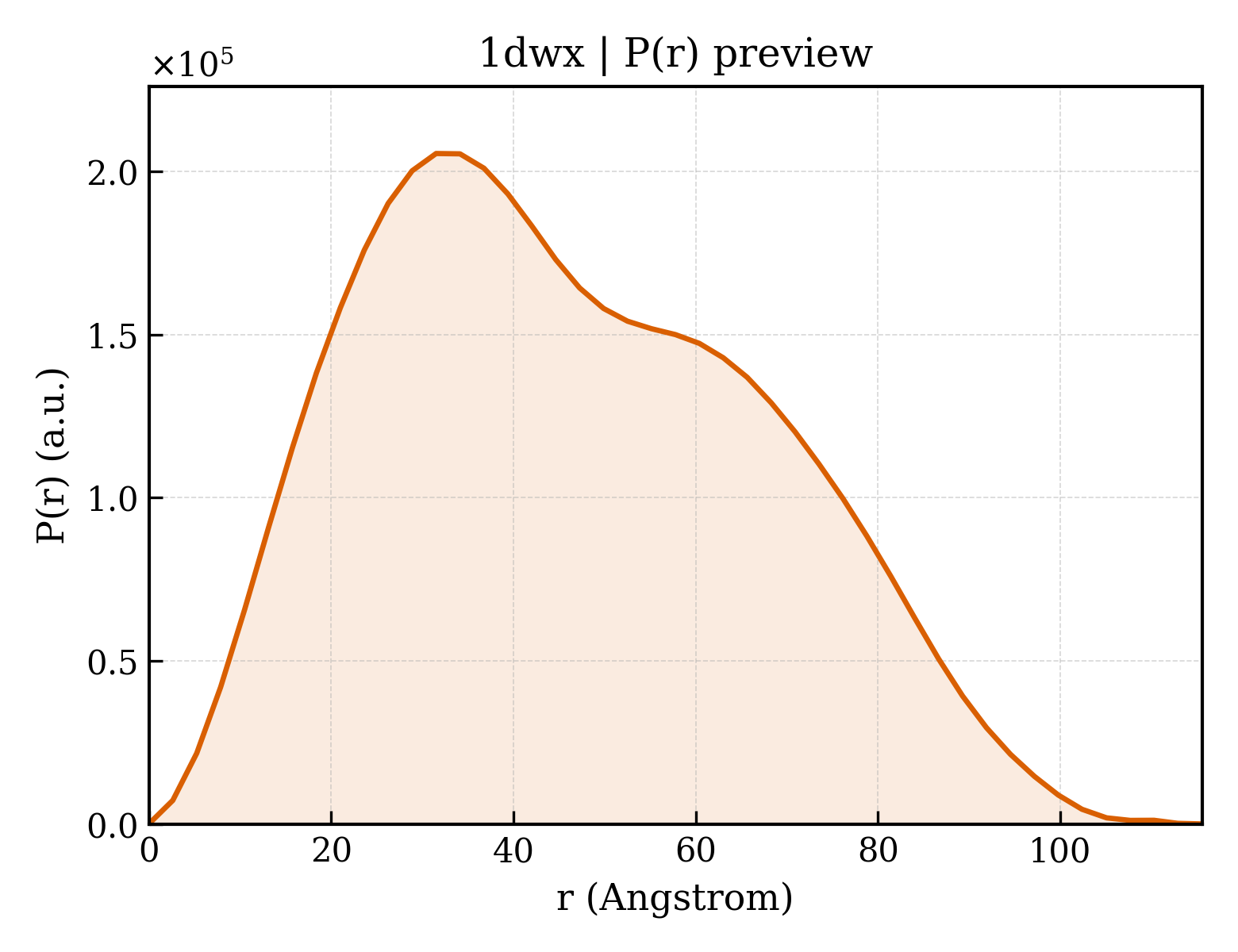

1dwx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.03 Å
Rg (electron density)	29.35 Å
Total Rg	30.01 Å
Atom count	6908
Residues	828
Excluded volume	122450 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1dwx__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1dwx__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	NITRIC OXIDE SYNTHASE
Molecular weight formula_weight	48626.3 kDa
EC 编号 ec_number	1.14.13.39
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7235

QYVRIKNWGSGEILHDTLHHKATSDFTCKSKSCLGSIMNPKSLTRGPRDKPTPLEELLPHAIEFINQYYGSFKEAKIEEHLARLEAVTKEIETTGTYQLTLDELIFATKMAWRNAPRCIGRIQWSNLQVFDARNCSTAQEMFQHICRHILYATNNGNIRSAITVFPQRSDGKHDFRLWNSQLIRYAGYQMPDGTIRGDAATLEFTQLCIDLGWKPRYGRFDVLPLVLQADGQDPEVFEIPPDLVLEVTMEHPKYEWFQELGLKWYALPAVANMLLEVGGLEFPACPFNGWYMGTEIGVRDFCDTQRYNILEEVGRRMGLETHTLASLWKDRAVTEINVAVLHSFQKQNVTIMDHHTASESFMKHMQNEYRARGGCPADWIWLVPPVSGSITPVFHQEMLNYVLSPFYYYQIEPWKTHIWQ

Source Source

Source organism organism	MUS MUSCULUS
Common name common_name	MOUSE
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	5,6,7,8-TETRAHYDROBIOPTERIN
Molecular weight formula_weight	241.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	N-OMEGA-HYDROXY-L-ARGININE
Molecular weight formula_weight	190.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	352

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1dwxa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.174 — Nitric oxide (NO) synthase oxygenase domain
Superfamily Superfamily superfamily	d.174.1 — Nitric oxide (NO) synthase oxygenase domain
Family Family family	d.174.1.1 — Nitric oxide (NO) synthase oxygenase domain

Domain ID domain_id	d1dwxb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.174 — Nitric oxide (NO) synthase oxygenase domain
Superfamily Superfamily superfamily	d.174.1 — Nitric oxide (NO) synthase oxygenase domain
Family Family family	d.174.1.1 — Nitric oxide (NO) synthase oxygenase domain

CATH v4.4 (6 domains)

Domain ID domain_id	1dwxA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	340 — Nitric Oxide Synthase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Nitric Oxide Synthase; Chain A, domain 1

Domain ID domain_id	1dwxA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	440 — Nitric Oxide Synthase;Heme Domain; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nitric Oxide Synthase;Heme Domain;Chain A domain 2

Domain ID domain_id	1dwxA03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1230 — Bovine Endothelial Nitric Oxide Synthase Heme Domain; Chain: A,domain 3
Homologous superfamily homologous superfamily	10 — Nitric Oxide Synthase; Chain A, domain 3

Domain ID domain_id	1dwxB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	340 — Nitric Oxide Synthase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Nitric Oxide Synthase; Chain A, domain 1

Domain ID domain_id	1dwxB02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	440 — Nitric Oxide Synthase;Heme Domain; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Nitric Oxide Synthase;Heme Domain;Chain A domain 2

Domain ID domain_id	1dwxB03
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1230 — Bovine Endothelial Nitric Oxide Synthase Heme Domain; Chain: A,domain 3
Homologous superfamily homologous superfamily	10 — Nitric Oxide Synthase; Chain A, domain 3

▶

Unit-cell length a length_a	212.980 Å
Unit-cell length b length_b	212.980 Å
Unit-cell length c length_c	114.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2380
R_work r_work	0.2380
R_free r_free	0.2780
