1dxe

2-dehydro-3-deoxy-galactarate aldolase from Escherichia coli

Method: X-RAY DIFFRACTION D_max: 88.1 Å Quality: REASONABLE

SAXS Profile

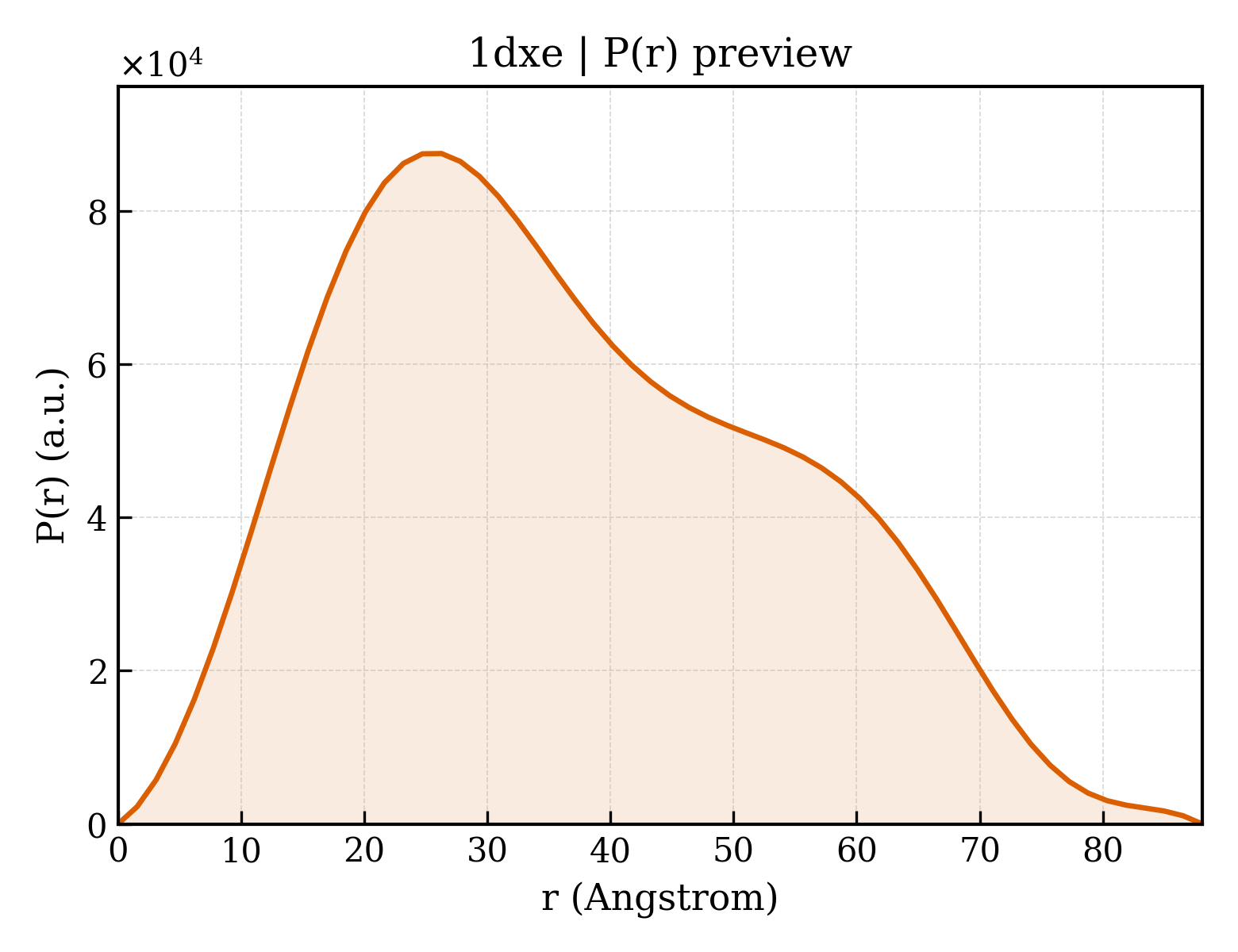

P(r) Distribution

▼

1. Structure Basics

entry_id	1dxe
deposition_date	2000-01-03
title	2-dehydro-3-deoxy-galactarate aldolase from Escherichia coli
keywords	CLASS II ALDOLASE; CLASS II ALDOLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.86 Å
rg_electron	27.16 Å
i0	48381000.00
molecular_weight	54468.0 kDa
excluded_volume	68361 Å³
envelope_volume	81524 Å³
shell_volume	26023 Å³
envelope_diameter	88.9 Å
shell_rg	33.45 Å
envelope_rg	26.98 Å
shape_rg	27.18 Å
total_rg	27.79 Å
total_atoms	3844
n_residues	506
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	88.1 Å
rg_real	28.51 Å
rg_real_error	0.21 Å
i0_real	4.7580e+07
i0_real_error	5.0780e+05
rg_reciprocal	27.95 Å
i0_reciprocal	48380000.0000
total_estimate	0.6850
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	26.3 Å
skewness	0.364
kurtosis	-0.693
angular_range	— – 0.2850 Å⁻¹
current_alpha	6.7070
highest_alpha	11950000.0000
n_real_points	58
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.877; Stabil: 0.926; Sysdev: 0.000; Positv: 1.000; Valcen: 0.888; Smooth: 0.634

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	2-DEHYDRO-3-DEOXY-GALACTARATE ALDOLASE
formula_weight	27411.1 kDa
ec_number	4.1.2.20
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	4500

MNNDVFPNKFKAALAAKQVQIGCWSALSNPISTEVLGLAGFDWLVLDGEHAPNDISTFIPQLMALKGSASAPVVRVPTNEPVIIKRLLDIGFYNFLIPFVETKEEAELAVASTRYPPEGIRGVSVSHRANMFGTVADYFAQSNKNITILVQIESQQGVDNVDAIAATEGVDGIFVGPSDLAAALGHLGNASHPDVQKAIQHIFNRASAHGKPSGILAPVEADARRYLEWGATFVAVGSDLGVFRSATQKLADTFKK

Entity 2 non-polymer

description	PHOSPHATE ION
formula_weight	95.0 kDa
src_method	syn
entity_count	4

Entity 3 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	656

▶

6. Citations (1)

▶

length_a	129.070 Å
length_b	129.070 Å
length_c	167.960 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	36

space_group	H 3 2
int_tables_number	155
crystal_system	—

resolution	1.800 Å
resolution_low	20.000 Å
r_factor	0.1710
r_work	0.1710
r_free	0.1940

fit	/app/data/saxs_computation/dx/1dxe/1dxe.fit
pddf	/app/data/pr_computation/dx/1dxe/1dxe.pr.out
profile	/app/data/saxs_computation/dx/1dxe/1dxe.dat
