SAXSdb — 1dxf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

2-DEHYDRO-3-DEOXY-GALACTARATE ALDOLASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	PYRUVIC ACID × 6 MAGNESIUM ION × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	YHAF_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–256； UniProt 1–256 Author chain B； PDBConstruct 1–256； UniProt 1–256

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dxf
Deposition date deposition_date	2000-01-05
Structure title title	2-dehydro-3-deoxy-galactarate aldolase from Escherichia coli in complex with pyruvate
Keywords keywords	CLASS II ALDOLASE; CLASS II ALDOLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1dxf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1dxf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

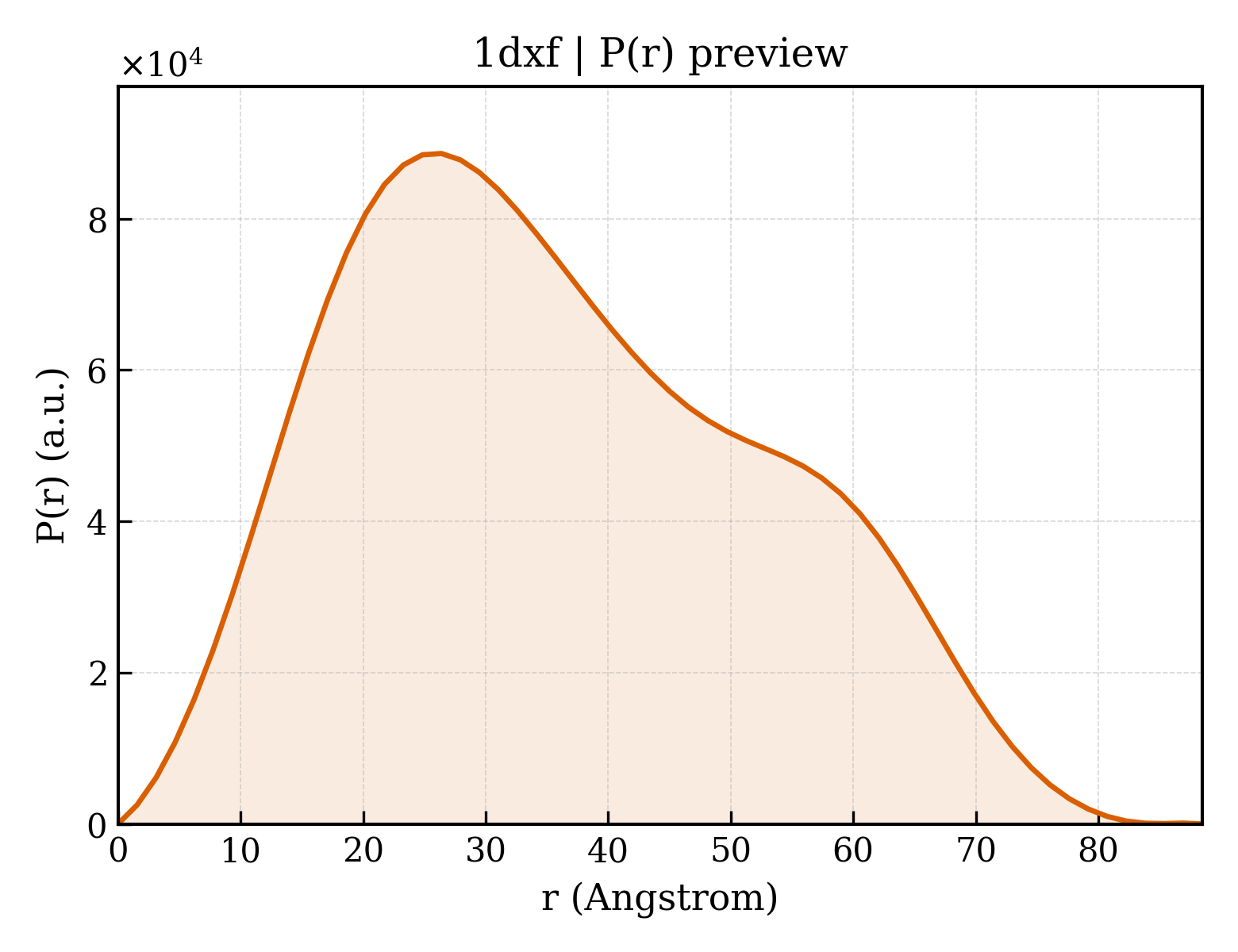

1dxf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.45 Å
Rg (electron density)	32.24 Å
Total Rg	32.77 Å
Atom count	11508
Residues	1506
Excluded volume	205330 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1dxf__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	2-DEHYDRO-3-DEOXY-GALACTARATE ALDOLASE
Molecular weight formula_weight	27504.9 kDa
EC 编号 ec_number	4.1.2.20
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4080

MNNDVFPNKFKAALAAKQVQIGCWSALSNPISTEVLGLAGFDWLVLDGEHAPNDISTFIPQLMALKGSASAPVVRVPTNEPVIIKRLLDIGFYNFLIPFVETKEEAELAVASTRYPPEGIRGVSVSHRANMFGTVADYFAQSNKNITILVQIESQQGVDNVDAIAATEGVDGIFVGPSDLAAALGHLGNASHPDVQKAIQHIFNRASAHGKPSGILAPVEADARRYLEWGATFVAVGSDLGVFRSATQKLADTFKK

Entity 2 Entity 2 non-polymer

Description description	PYRUVIC ACID
Molecular weight formula_weight	88.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	244

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1dxfa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.5 — HpcH/HpaI aldolase

Domain ID domain_id	d1dxfb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.12 — Phosphoenolpyruvate/pyruvate domain
Family Family family	c.1.12.5 — HpcH/HpaI aldolase

CATH v4.4 (2 domains)

Domain ID domain_id	1dxfA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

Domain ID domain_id	1dxfB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	60 — Phosphoenolpyruvate-binding domains

▶

Unit-cell length a length_a	126.400 Å
Unit-cell length b length_b	126.400 Å
Unit-cell length c length_c	172.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1730
R_work r_work	0.1730
R_free r_free	0.2330
