1dy0
Murine endostatin, crystal form II

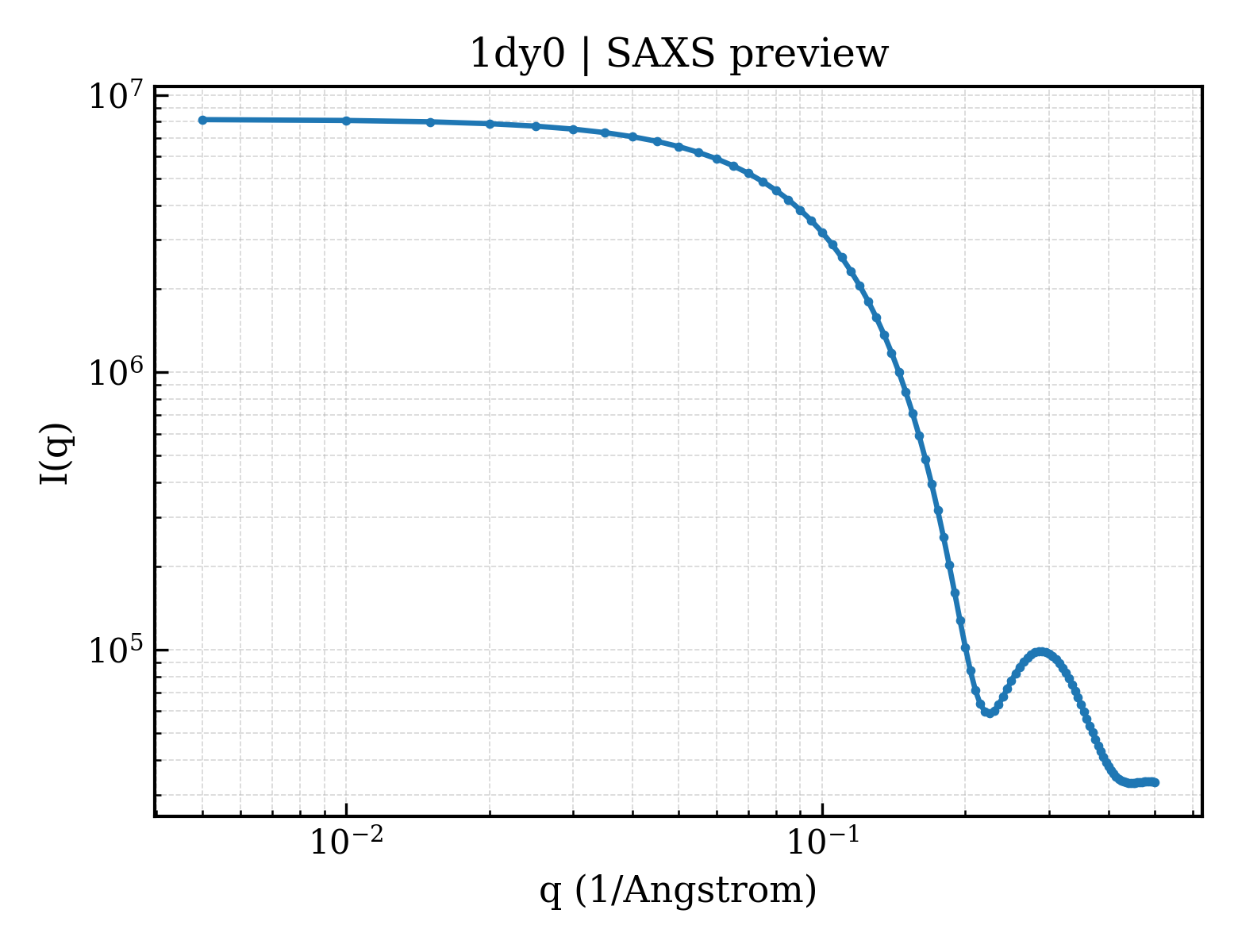

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dy0 |
| deposition_date | 2000-01-21 |
| title | Murine endostatin, crystal form II |
| keywords | ANGIOGENESIS INHIBITOR; ANGIOGENESIS INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.50 Å |
| rg_electron | 15.10 Å |
| i0 | 8157580.00 |
| molecular_weight | 20013.0 kDa |
| excluded_volume | 24629 ų |
| envelope_volume | 27295 ų |
| shell_volume | 14983 ų |
| envelope_diameter | 52.7 Å |
| shell_rg | 21.43 Å |
| envelope_rg | 15.46 Å |
| shape_rg | 15.05 Å |
| total_rg | 16.32 Å |
| total_atoms | 1402 |
| n_residues | 180 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.6 Å |
| rg_real | 16.37 Å |
| rg_real_error | 0.22 Å |
| i0_real | 8.1580e+06 |
| i0_real_error | 8.4060e+04 |
| rg_reciprocal | 16.38 Å |
| i0_reciprocal | 8158000.0000 |
| total_estimate | 0.8784 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.3 Å |
| skewness | 0.107 |
| kurtosis | -0.342 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0001 |
| highest_alpha | 1631000.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.808; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.998 |
