MUS MUSCULUS
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | ZINC ION × 2 water × 1 | Consistent with protein count |
| UniProt name | CA1H_MOUSE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–188； UniProt 1128–1315 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1dy1 |
| Deposition date deposition_date | 2000-01-21 |
| Structure title title | Murine endostatin, crystal form III |
| Keywords keywords | ANGIOGENESIS INHIBITOR; ANGIOGENESIS INHIBITOR |
| Experimental Method method | X-RAY DIFFRACTION |

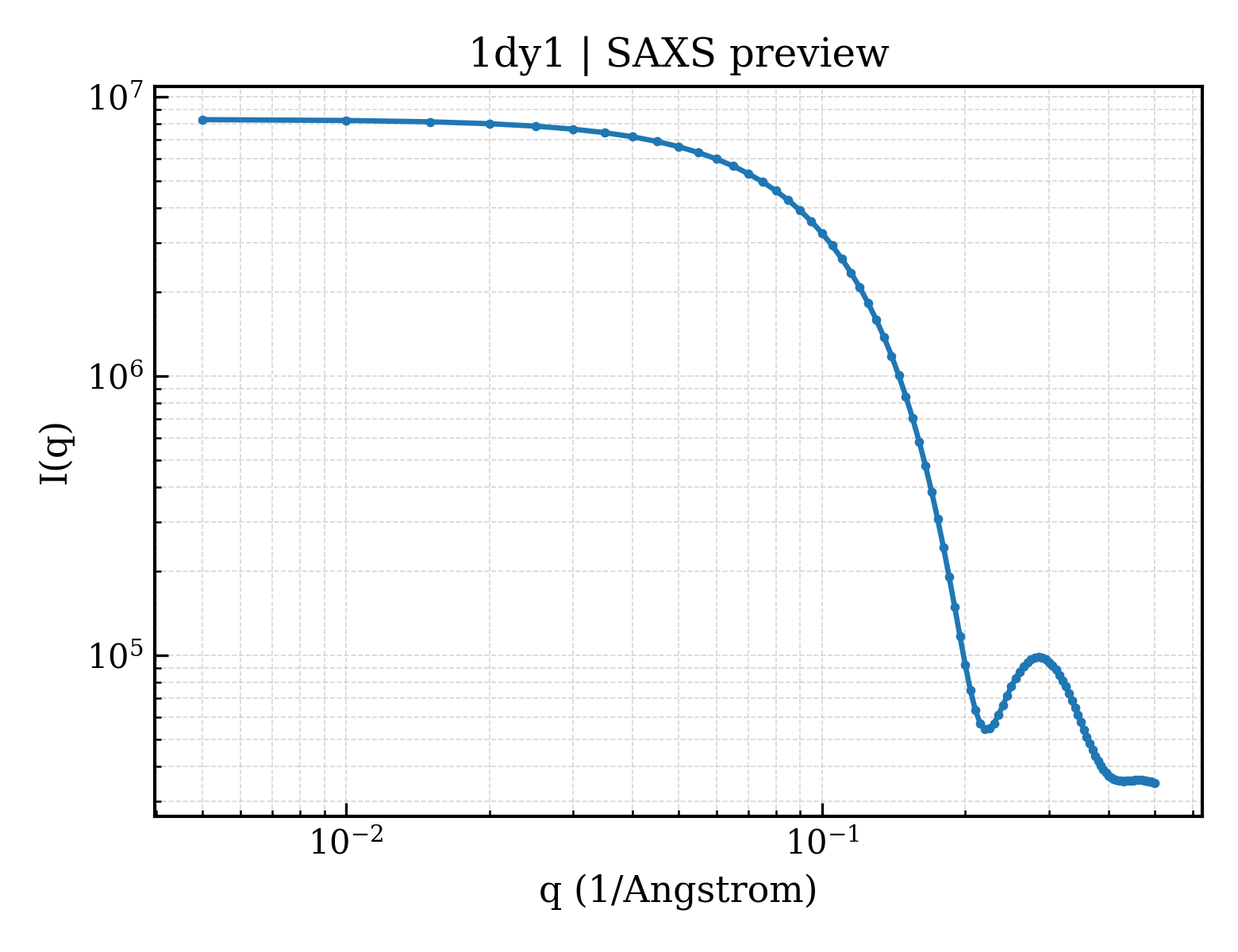

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 16.49 Å |

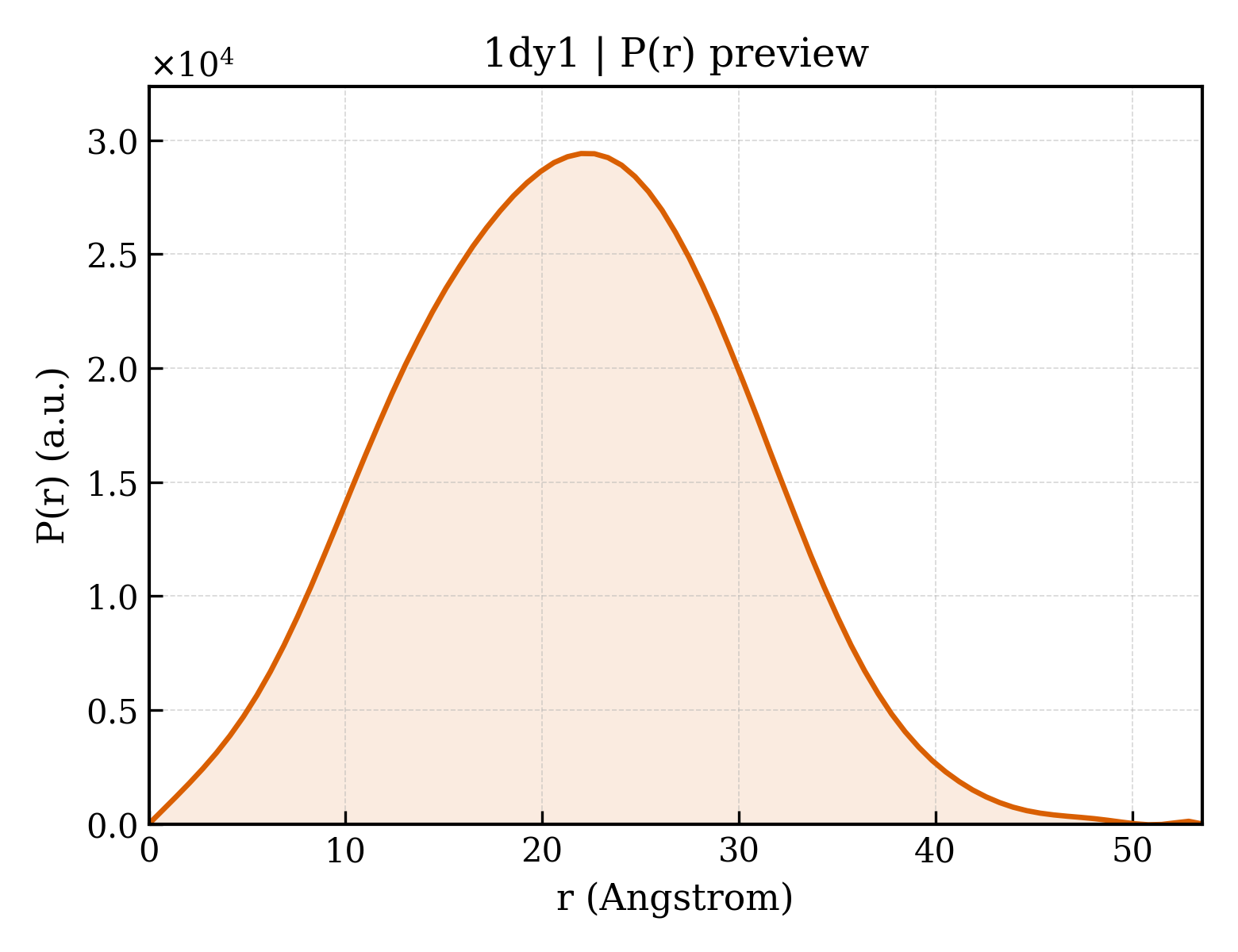

| Rg (electron density) | 15.16 Å |
| Total Rg | 16.33 Å |
| Atom count | 1422 |
| Residues | 183 |
| Excluded volume | 25013 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1dy1a_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.169 — C-type lectin-like |
| Superfamily Superfamily superfamily | d.169.1 — C-type lectin-like |
| Family Family family | d.169.1.5 — Endostatin |
| Domain ID domain_id | 1dy1A00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 10 — Roll |
| Topology topology | 100 — Mannose-Binding Protein A; Chain A |
| Homologous superfamily homologous superfamily | 10 — Mannose-Binding Protein A, subunit A |
