1dyi

;ISOMORPHOUS CRYSTAL STRUCTURES OF ESCHERICHIA COLI DIHYDROFOLATE REDUCTASE COMPLEXED WITH FOLATE, 5-DEAZAFOLATE AND 5,10-DIDEAZATETRAHYDROFOLATE: MECHANISTIC IMPLICATIONS ;

Method: X-RAY DIFFRACTION D_max: 74.6 Å Quality: GOOD

SAXS Profile

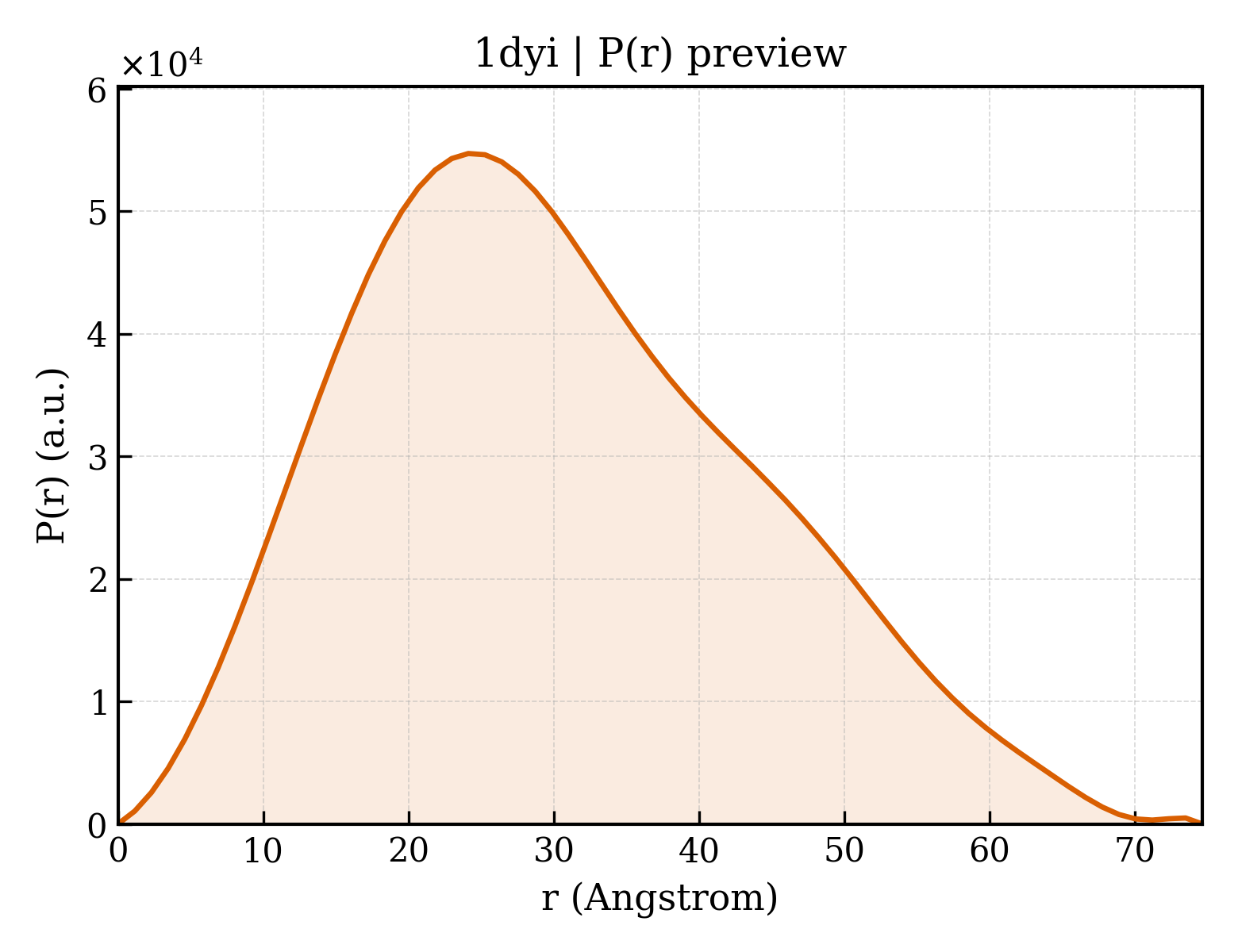

P(r) Distribution

▼

1. Structure Basics

entry_id	1dyi
deposition_date	1994-10-26
title	;ISOMORPHOUS CRYSTAL STRUCTURES OF ESCHERICHIA COLI DIHYDROFOLATE REDUCTASE COMPLEXED WITH FOLATE, 5-DEAZAFOLATE AND 5,10-DIDEAZATETRAHYDROFOLATE: MECHANISTIC IMPLICATIONS ;
keywords	OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	23.35 Å
rg_electron	22.74 Å
i0	23384400.00
molecular_weight	36412.0 kDa
excluded_volume	45259 Å³
envelope_volume	54709 Å³
shell_volume	20820 Å³
envelope_diameter	75.5 Å
shell_rg	28.73 Å
envelope_rg	22.65 Å
shape_rg	22.70 Å
total_rg	23.59 Å
total_atoms	2565
n_residues	318
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	74.6 Å
rg_real	23.40 Å
rg_real_error	0.44 Å
i0_real	2.3380e+07
i0_real_error	3.1460e+05
rg_reciprocal	23.39 Å
i0_reciprocal	23380000.0000
total_estimate	0.8945
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	24.1 Å
skewness	0.396
kurtosis	-0.428
angular_range	— – 0.3400 Å⁻¹
current_alpha	0.0000
highest_alpha	5331000.0000
n_real_points	66
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.892; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.972

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	DIHYDROFOLATE REDUCTASE
formula_weight	18020.3 kDa
ec_number	1.5.1.3
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	2994

MISLIAALAVDRVIGMENAMPWNLPADLAWFKRNTLDKPVIMGRHTWESIGRPLPGRKNIILSSQPGTDDRVTWVKSVDEAIAACGDVPEIMVIGGGRVYEQFLPKAQKLYLTHIDAEVEGDTHFPDYEPDDWESVFSEFHDADAQNSHSYCFEILERR

Source

organism	Escherichia coli
ncbi_taxonomy_id	562

Entity 2 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	FOLIC ACID
formula_weight	441.4 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	1

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	429

▶

6. Citations (6)

;Isomorphous crystal structures of Escherichia coli dihydrofolate reductase complexed with folate, 5-deazafolate, and 5,10-dideazatetrahydrofolate: mechanistic implications. ;

Biochemistry (1995)

PMID: 7873554 · DOI: 10.1021/bi00008a039 PRIMARY

;Crystal Structure of Unliganded Escherichia Coli Dihydrofolate Reductase. Ligand Induced Conformational Changes and Cooperativity Binding ;

Biochemistry (1991)

;Crystal Structures of Escherichia Coli Dihydrofolate Reductase and Folate.Nadp+ Ternary Complex. Substrate Binding and a Model for the Transition State ;

Biochemistry (1990)

Crystal Structures of Recombinant Human Dihydrofolate Reductase Complexed with Folate and 5-Deazafolate

Biochemistry (1990)

;Crystal Structures of Escherichia Coli and Lactobacillus Casei Dihydrofolate Reductase Refined at 1.7 Angstroms Resolution I. General Features and Binding of Methotrexate ;

J.Biol.Chem. (1982)

;Crystal Structures of Escherichia Coli and Lactobacillus Casei Dihydrofolate Reductase at 1.7 Angstroms Resolution. II. Environment of Bound Nadph and Implications for Catalysis ;
