1dyr
THE STRUCTURE OF PNEUMOCYSTIS CARINII DIHYDROFOLATE REDUCTASE TO 1.9 ANGSTROMS RESOLUTION
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dyr |
| deposition_date | 1994-09-14 |
| title | THE STRUCTURE OF PNEUMOCYSTIS CARINII DIHYDROFOLATE REDUCTASE TO 1.9 ANGSTROMS RESOLUTION |
| keywords | OXIDO-REDUCTASE, OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.13 Å |
| rg_electron | 16.78 Å |
| i0 | 10973500.00 |
| molecular_weight | 24793.0 kDa |
| excluded_volume | 31123 ų |
| envelope_volume | 35774 ų |
| shell_volume | 17560 ų |
| envelope_diameter | 56.7 Å |
| shell_rg | 23.16 Å |
| envelope_rg | 17.13 Å |
| shape_rg | 16.77 Å |
| total_rg | 17.82 Å |
| total_atoms | 1747 |
| n_residues | 205 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

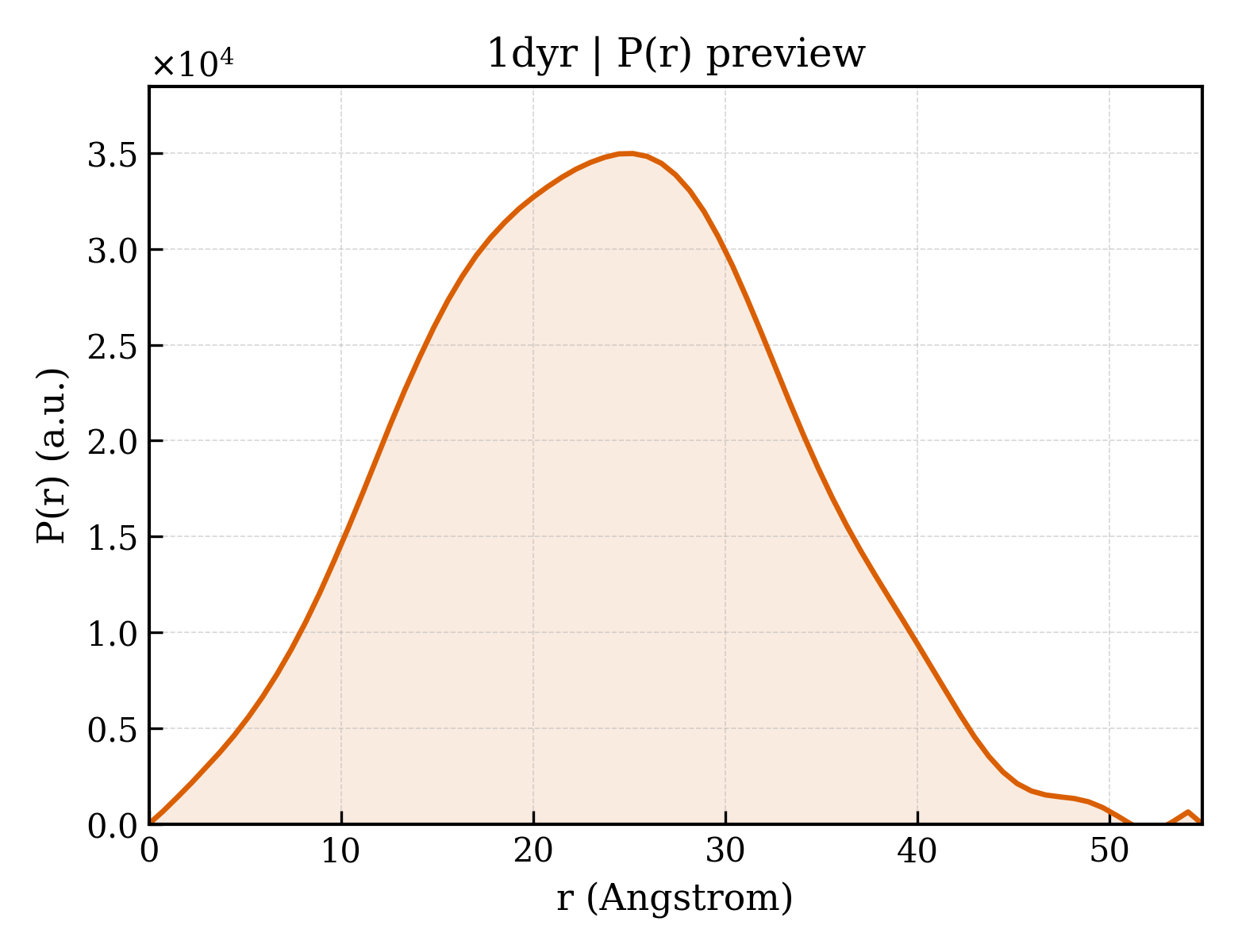

3. P(r) Analysis (GNOM)
| dmax | 54.8 Å |
| rg_real | 17.98 Å |
| rg_real_error | 0.26 Å |
| i0_real | 1.0970e+07 |
| i0_real_error | 1.2370e+05 |
| rg_reciprocal | 18.00 Å |
| i0_reciprocal | 10970000.0000 |
| total_estimate | 0.8228 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 25.2 Å |
| skewness | 0.087 |
| kurtosis | -0.430 |
| angular_range | — – 0.4400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2158000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.906; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.000 |
