1. Protein Identity and Related Structures Protein Identity & Related Structures

DIHYDROFOLATE REDUCTASE

Pneumocystis carinii

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–206	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 FOL FOLIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；pH 6.00	Resolution 1.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2CD2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CD2 LIGAND INDUCED CONFORMATIONAL CHANGES IN THE CRYSTAL STRUCTURES OF PNEUMOCYSTIS CARINII DIHYDROFOLATE REDUCTASE COMPLEXES WITH FOLATE AND NADP+ Deposited 1999-03-05	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 FOL FOLIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；10 ML PROTEIN, 1 MICROLITER 50MM MES, PH 6.5, 100MM KCL, 9 ML 50%(W/W)PEG 2K., pH 6.00	Resolution 2.20 Å
1DAJ COMPARISON OF TERNARY COMPLEXES OF PNEUMOCYSTIS CARINII AND WILD TYPE HUMAN DIHYDROFOLATE REDUCTASE WITH COENZYME NADPH AND A NOVEL CLASSICAL ANTITUMOR FURO[2,3D]PYRIMIDINE ANTIFOLATE Deposited 1997-07-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 MOT N-[4-[(2,4-DIAMINOFURO[2,3D]PYRIMIDIN-5-YL)METHYL]METHYLAMINO]-BENZOYL]-L-GLUTAMATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å
1DYR THE STRUCTURE OF PNEUMOCYSTIS CARINII DIHYDROFOLATE REDUCTASE TO 1.9 ANGSTROMS RESOLUTION Deposited 1994-09-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 TOP TRIMETHOPRIM × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.86 Å
1E26 Design, Synthesis and X-ray Crystal Structure of a Potent Dual Inhibitor of Thymidylate Synthase and Dihydrofolate Reductase as an Antitumor Agent. Deposited 2000-05-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 GPB N-[4-[2-(2-AMINO-4-METHYL-7H-PYRROLO[2,3-D]PYRIMIDIN-5-YL)-ETHYL]-BENZOYL]GLUTAMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 6；PROTEIN SOLUTION: WASHED AND CONCENTRATED 4 TUBES PCDHFR USING A CENTRICON 10 50 MM MES, 100MM KCL, B-NADPH, PH 6.0, A280/340 RATIO OF 24. WASHED WITH 50MM MES, 100MM KCL, PH 6.0, WASHED WITH 50MM MES, 100MM KCL, PH 6.0 TO A CONCENTRATION OF 6.5 MG/ML. RESERVOIR SOLUTION: 50% PEG2000MME, 50MM MES, 100MM, PH 6.0 SET UP MICROBATCH POLYTHERMAL GRADIENT EXPERIMENTS IN MICROPETS. DROPS WERE COMPOSED OF: 2.5 MICROLITERS PROTEIN SOLUTION 2.0 MICROLITERS PROTEIN SOLUTION 0.5 MICROLITERS 50MM MES, 100MM KCL, PH 6.0. MICROPETS WERE LEFT TO EQUILIBRATE ON THE POLYTHERMAL GRADIENT.	Resolution 2.00 Å R-free 0.297
1KLK CRYSTAL STRUCTURE OF PNEUMOCYSTIS CARINII DIHYDROFOLATE REDUCTASE TERNARY COMPLEX WITH PT653 AND NADPH Deposited 2001-12-12	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	PMD [N-(2,4-DIAMINOPTERIDIN-6-YL)-METHYL]-DIBENZ[B,F]AZEPINE × 1 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；298 K；PEG 2000MME, KCl, MES, pH 6.0, VAPOR DIFFUSION, temperature 298K	Resolution 2.30 Å R-free 0.289
1LY3 ANALYSIS OF QUINAZOLINE AND PYRIDOPYRIMIDINE N9-C10 REVERSED BRIDGE ANTIFOLATES IN COMPLEX WITH NADP+ AND PNEUMOCYSTIS CARINII DIHYDROFOLATE REDUCTASE Deposited 2002-06-06	Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 COG 2,4-DIAMINO-6-[N-(2',5'-DIMETHOXYBENZYL)-N-METHYLAMINO]QUINAZOLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；298 K；Peg 2000, MES/KCl, KCl, pH 6, VAPOR DIFFUSION, temperature 298K	Resolution 1.90 Å
1LY4 Analysis of quinazoline and PYRIDO[2,3D]PYRIMIDINE N9-C10 reversed bridge antifolates in complex with NADP+ and Pneumocystis carinii dihydrofolate reductase Deposited 2002-06-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 COQ 2,4-DIAMINO-6-[N-(3',5'-DIMETHOXYBENZYL)-N-METHYLAMINO]PYRIDO[2,3-D]PYRIMIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；298 K；MES/KCl, PEG 2000, pH 6.0, VAPOR DIFFUSION, temperature 298K	Resolution 2.10 Å
1S3Y Structure Determination of Tetrahydroquinazoline Antifolates in Complex with Human and Pneumocystis carinii Dihydrofolate Reductase: Correlations of Enzyme Selectivity and Stereochemistry Deposited 2004-01-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 TQT 6-(OCTAHYDRO-1H-INDOL-1-YLMETHYL)DECAHYDROQUINAZOLINE-2,4-DIAMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions thermal gradient；pH 6；298 K；50 mM MES, 100 mM KCl, pH 6.0, thermal gradient, temperature 298K	Resolution 2.25 Å R-free 0.289
1VJ3 STRUCTURAL STUDIES ON BIO-ACTIVE COMPOUNDS. CRYSTAL STRUCTURE AND MOLECULAR MODELING STUDIES ON THE PNEUMOCYSTIS CARINII DIHYDROFOLATE REDUCTASE COFACTOR COMPLEX WITH TAB, A HIGHLY SELECTIVE ANTIFOLATE. Deposited 2004-01-13	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–206（205 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 TAB ACETIC ACID N-[2-CHLORO-5-[6-ETHYL-2,4-DIAMINO-PYRIMID-5-YL]-PHENYL]-[BENZYL-TRIAZEN-3-YL]ETHYL ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.00	Resolution 2.10 Å
2FZH New Insights into Dihydrofolate Reductase Interactions: Analysis of Pneumocystis carinii and Mouse DHFR Complexes with NADPH and Two Highly Potent Trimethoprim Derivatives Deposited 2006-02-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 DH1 2,4-DIAMINO-5-[2-METHOXY-5-(4-CARBOXYBUTYLOXY)BENZYL]PYRIMIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；33% PEG 2K, 46 mM MES, 100 mM KCl, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.295
2FZI New Insights into DHFR Interactions: Analysis of Pneumocystis carinii and Mouse DHFR Complexes with NADPH and Two Highly Potent Trimethoprim Derivatives Deposited 2006-02-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 DH3 2,4-DIAMINO-5-[3',4'-DIMETHOXY-5'-(5-CARBOXYL-1-PENTYNYL)]BENZYL PYRIMIDINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；33% PEG 2K, 46 mM MES, 100 mM KCl, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.60 Å R-free 0.317
3CD2 LIGAND INDUCED CONFORMATIONAL CHANGES IN THE CRYSTAL STRUCTURES OF PNEUMOCYSTIS CARINII DIHYDROFOLATE REDUCTASE COMPLEXES WITH FOLATE AND NADP+ Deposited 1999-03-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 MTX METHOTREXATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.50 Å
3NZ6 Structural Analysis of Pneumocystis carinii and Human DHFR Complexes with NADPH and a Series of Five Potent 5-(omega-Carboxy(alkyloxy)Pyrido[2,3-d]pyrimidine Derivatives Deposited 2010-07-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 1–206（206 aa）	Not recorded	D2J 6-{3-[(2,4-diamino-5-methylpyrido[2,3-d]pyrimidin-6-yl)methyl]-4-methoxyphenoxy}hexanoic acid × 1 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；273 K；33-36% PEG 2K, 46-52 mM MES pH 6 100 mM KCL, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 2.00 Å R-free 0.287
3NZ9 Structural Analysis of Pneumocystis carinii and Human DHFR Complexes with NADPH and a Series of Five Potent 5-(omega-Carboxy(alkyloxy)Pyrido[2,3-d]pyrimidine Derivatives Deposited 2010-07-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 1–206（206 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 D2K ethyl 4-{3-[(2,4-diamino-5-methylpyrido[2,3-d]pyrimidin-6-yl)methyl]-4-methoxyphenoxy}butanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；273 K；33-336% PEG 2K, 46-52 mM MES pH 6 100 mM KCl, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 1.80 Å R-free 0.272
3NZA Structural Analysis of Pneumocystis carinii and Human DHFR Complexes with NADPH and a Series of Five Potent 5-(omega-Carboxy(alkyloxy)pyrido[2,3-d]pyrimidine Derivatives Deposited 2010-07-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 1–206（206 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 D2K ethyl 4-{3-[(2,4-diamino-5-methylpyrido[2,3-d]pyrimidin-6-yl)methyl]-4-methoxyphenoxy}butanoate × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；273 K；33-36% PEG 2K, 46-52 mM MES pH 6.0, 100 mM KCl, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 1.90 Å R-free 0.282
3NZB Structural Analysis of Pneumocystis carinii and Human DHFR Complexes with NADPH and a Series of Potent 5-(omega-carboxyl(alkyloxy)pyrido[2,-d]pyrimidine Derivatives Deposited 2010-07-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 1–206（206 aa）	Not recorded	D2N ethyl 6-{3-[(2,4-diamino-5-methylpyrido[2,3-d]pyrimidin-6-yl)methyl]-4-methoxyphenoxy}hexanoate × 2 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；273 K；33-36% PEG 2K, 46-52 mM MES, 100 mM KCl, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 1.45 Å R-free 0.295
3NZC Structural Analysis of Pneumocystis carinii and Human DHFR Complexes with NADPH and a Series of Five Potent 5-(omega-carboxy(alkyloxy)pyrido[2,3-d]pyridine Derivativea Deposited 2010-07-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 1–206（206 aa）	Not recorded	D2O 6-[2-methoxy-5-(2-phenylethoxy)benzyl]-5-methylpyrido[2,3-d]pyrimidine-2,4-diamine × 1 PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；273 K；30-36% PEG 2K, 46-52 mM MES, 100 mM KCl, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 2.00 Å R-free 0.260
3TD8 Structural Analysis of Pneumocystis carinii Dihydrofolate Reductase Complex with NADPH and 2,4-diamino-5-methyl-6-[2'-(4-carboxy-1-pentynyl)-5'-methoxybenzyl]pyrido[2,3-d]pyrimidine Deposited 2011-08-10	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 D2R 6-{2-[(2,4-diamino-5-methylpyrido[2,3-d]pyrimidin-6-yl)methyl]-4-methoxyphenyl}hex-5-ynoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；273 K；33% PEG 2K, 46 mM MES, pH 6.0, 100 mM KCl, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 1.80 Å R-free 0.259
4CD2 LIGAND INDUCED CONFORMATIONAL CHANGES IN THE CRYSTAL STRUCTURES OF PNEUMOCYSTIS CARINII DIHYDROFOLATE REDUCTASE COMPLEXES WITH FOLATE AND NADP+ Deposited 1999-03-18	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–206（206 aa）	Not recorded	FOL FOLIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.00 Å
4G8Z pcDHFR K37S/F69N double mutant TMP NADPH ternary complex Deposited 2012-07-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 3–206（204 aa） Fragment：dihydrofolate reductase	Mutation：K37S and F69N	TOP TRIMETHOPRIM × 1 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；287 K；33-36% PEG 2K, 50 mM MES, pH 6.0, 100 mM KCl, VAPOR DIFFUSION, HANGING DROP, temperature 287K	Resolution 1.75 Å R-free 0.316
4IXE pcDHFR-NADPH-270 Deposited 2013-01-25	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–206（206 aa）	Not recorded	IXE N~6~-methyl-N~6~-(3,4,5-trifluorophenyl)pyrido[2,3-d]pyrimidine-2,4,6-triamine × 1 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；287 K；0.1 HEPS, 25% PEG2000 MME, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 287K	Resolution 1.54 Å R-free 0.220
4IXF pcDHFR-269 F69N variant Deposited 2013-01-25	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 1–206（206 aa）	Mutation：F69N	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 IXF N~6~-methyl-N~6~-[4-(propan-2-yl)phenyl]pyrido[2,3-d]pyrimidine-2,4,6-triamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；287 K；35% PEG 2000, 49 mM MES, 100 mM KCl, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 287K	Resolution 1.70 Å R-free 0.248
4IXG pcDHFR-268-K37S-N69F variant Deposited 2013-01-25	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 1–206（206 aa）	Mutation：K37S, F69N	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 IXG N~6~-methyl-N~6~-phenylpyrido[2,3-d]pyrimidine-2,4,6-triamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；287 K；35% PEG2000, 49 mM MES, 100 mM KCl, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 287K	Resolution 1.70 Å R-free 0.280
4QJZ Pneumocystis carinii dihydrofolate reductase ternary complex with NADPH and the inhibitor 24, (N~6~-METHYL-N~6~-(NAPHTHALEN-1-YL)PYRIDO[2,3-D]PYRIMIDINE-2,4,6-TRIAMINE) Deposited 2014-06-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–206（206 aa） Fragment：Pneumocystis carinii dihydrofolate reductase	Not recorded	33M N~6~-methyl-N~6~-(naphthalen-1-yl)pyrido[2,3-d]pyrimidine-2,4,6-triamine × 1 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；287 K；ProComplex #11: 0.1 M HEPES, pH 7.5, 25% PEG2KMME, VAPOR DIFFUSION, HANGING DROP, temperature 287K	Resolution 1.61 Å R-free 0.245

24 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DYR_PNECA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–206； UniProt 1–206

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2cd2
Deposition date deposition_date	1999-03-15
Structure title title	LIGAND INDUCED CONFORMATIONAL CHANGES IN THE CRYSTAL STRUCTURES OF PNEUMOCYSTIS CARINII DIHYDROFOLATE REDUCTASE COMPLEXES WITH FOLATE AND NADP+
Keywords keywords	OXIDO-REDUCTASE, FOLATE, NADPH, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.98 Å
Radius of gyration Rg (electron density) rg_electron	16.66 Å
Forward intensity I(0) i0	11321000.00
Molecular weight molecular_weight	25073.0 kDa
Excluded volume excluded_volume	31395 Å³
Envelope volume envelope_volume	35354 Å³
Hydration-shell volume shell_volume	17432 Å³
Envelope diameter envelope_diameter	57.7 Å
Shell Rg shell_rg	23.17 Å
Envelope Rg envelope_rg	17.07 Å
Shape Rg shape_rg	16.65 Å
Total Rg total_rg	17.74 Å
Total atoms total_atoms	1766
Residues n_residues	206
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.0 Å
Rg (real space) rg_real	17.82 Å
Rg uncertainty (real space) rg_real_error	0.08 Å
I(0) (real space) i0_real	1.0950e+07
I(0) uncertainty (real space) i0_real_error	1.0040e+05
Rg (reciprocal space) rg_reciprocal	17.85 Å
I(0) (reciprocal space) i0_reciprocal	11320000.0000
Solution quality estimate total_estimate	0.7254
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	23.6 Å
Skewness Skewness skewness	0.114
Kurtosis Kurtosis kurtosis	-0.401
Angular range angular_range	— – 0.4400 Å⁻¹
Current regularization parameter α current_alpha	10.3000
Highest regularization parameter α highest_alpha	2237000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.947; Stabil: 0.925; Sysdev: 0.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.854

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DIHYDROFOLATE REDUCTASE
Molecular weight formula_weight	23918.5 kDa
EC 编号 ec_number	1.5.1.3
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1841

MNQQKSLTLIVALTTSYGIGRSNSLPWKLKKEISYFKRVTSFVPTFDSFESMNVVLMGRKTWESIPLQFRPLKGRINVVITRNESLDLGNGIHSAKSLDHALELLYRTYGSESSVQINRIFVIGGAQLYKAAMDHPKLDRIMATIIYKDIHCDVFFPLKFRDKEWSSVWKKEKHSDLESWVGTKVPHGKINEDGFDYEFEMWTRDL

来源 Source

来源生物 organism	Pneumocystis carinii
NCBI Class编号 ncbi_taxonomy_id	4754
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	743.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	FOLIC ACID
Molecular weight formula_weight	441.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	75

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2cd2a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.71 — Dihydrofolate reductase-like
Superfamily Superfamily superfamily	c.71.1 — Dihydrofolate reductase-like
Family Family family	c.71.1.1 — Dihydrofolate reductases

CATH v4.4 (1 domains)

Domain ID domain_id	2cd2A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	430 — Dihydrofolate Reductase, subunit A
Homologous superfamily homologous superfamily	10 — Dihydrofolate Reductase, subunit A

▶

8. Citations (2)

▶

Unit-cell length a length_a	37.305 Å
Unit-cell length b length_b	43.145 Å
Unit-cell length c length_c	61.147 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.77 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.1960
R_free r_free	—

fit	/app/data/saxs_computation/cd/2cd2/2cd2.fit
pddf	/app/data/pr_computation/cd/2cd2/2cd2.pr.out
profile	/app/data/saxs_computation/cd/2cd2/2cd2.dat

LIGAND INDUCED CONFORMATIONAL CHANGES IN THE CRYSTAL STRUCTURES OF PNEUMOCYSTIS CARINII DIHYDROFOLATE REDUCTASE COMPLEXES WITH FOLATE AND NADP+

1. Protein Identity and Related Structures Protein Identity & Related Structures

DIHYDROFOLATE REDUCTASE

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

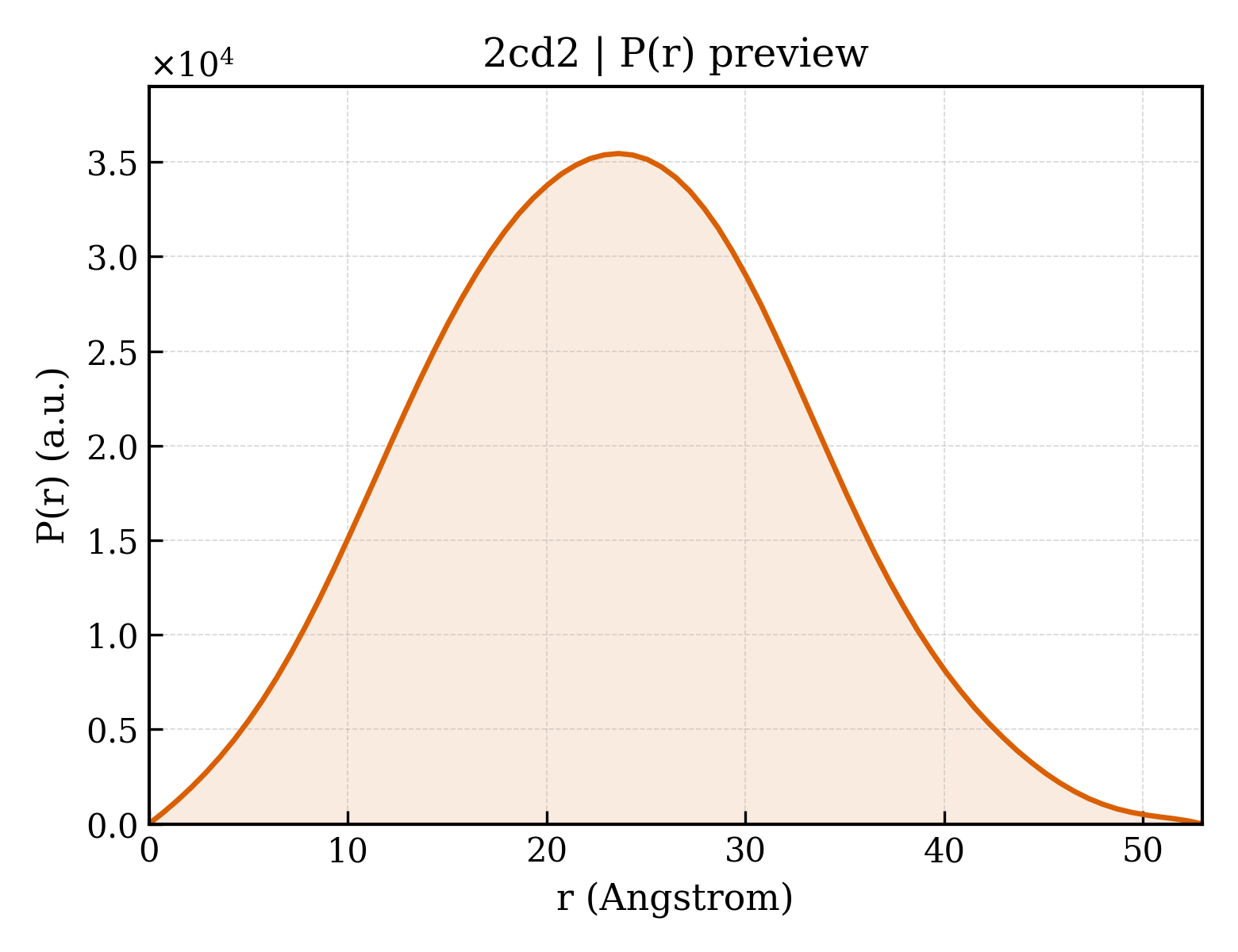

P(r) Distance Distribution P(r) Distribution
