1e14

PHOTOSYNTHETIC REACTION CENTER MUTANT WITH PHE M197 REPLACED WITH ARG (CHAIN M, FM197R) AND GLY M203 REPLACED WITH ASP (CHAIN M, GM203D)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Reaction center protein H chain

Rhodobacter sphaeroides

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Reaction center protein L chain × 1 （P0C0Y8） Reaction center protein M chain × 1 （P0C0Y9） LAURYL DIMETHYLAMINE-N-OXIDE × 3 BACTERIOCHLOROPHYLL A × 4 BACTERIOPHEOPHYTIN A × 2 UBIQUINONE-10 × 2 FE (III) ION × 1 SPEROIDENONE × 1 CARDIOLIPIN × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RCEH_RHOSH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain H； PDBConstruct 1–260； UniProt 1–260

Reaction center protein L chain

Rhodobacter sphaeroides

UniProt P0C0Y8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Reaction center protein H chain × 1 （P0C0Y7） Reaction center protein M chain × 1 （P0C0Y9） LAURYL DIMETHYLAMINE-N-OXIDE × 3 BACTERIOCHLOROPHYLL A × 4 BACTERIOPHEOPHYTIN A × 2 UBIQUINONE-10 × 2 FE (III) ION × 1 SPEROIDENONE × 1 CARDIOLIPIN × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RCEL_RHOSH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain L； PDBConstruct 1–281； UniProt 2–282

Reaction center protein M chain

Rhodobacter sphaeroides

UniProt P0C0Y9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Reaction center protein H chain × 1 （P0C0Y7） Reaction center protein L chain × 1 （P0C0Y8） LAURYL DIMETHYLAMINE-N-OXIDE × 3 BACTERIOCHLOROPHYLL A × 4 BACTERIOPHEOPHYTIN A × 2 UBIQUINONE-10 × 2 FE (III) ION × 1 SPEROIDENONE × 1 CARDIOLIPIN × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RCEM_RHOSH
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain M； PDBConstruct 1–307； UniProt 2–308

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e14
Deposition date deposition_date	2000-04-18
Structure title title	PHOTOSYNTHETIC REACTION CENTER MUTANT WITH PHE M197 REPLACED WITH ARG (CHAIN M, FM197R) AND GLY M203 REPLACED WITH ASP (CHAIN M, GM203D)
Keywords keywords	TRANSMEMBRANE, ELECTRON TRANSPORT, PHOTOSYNTHESIS; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1e14__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1e14__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

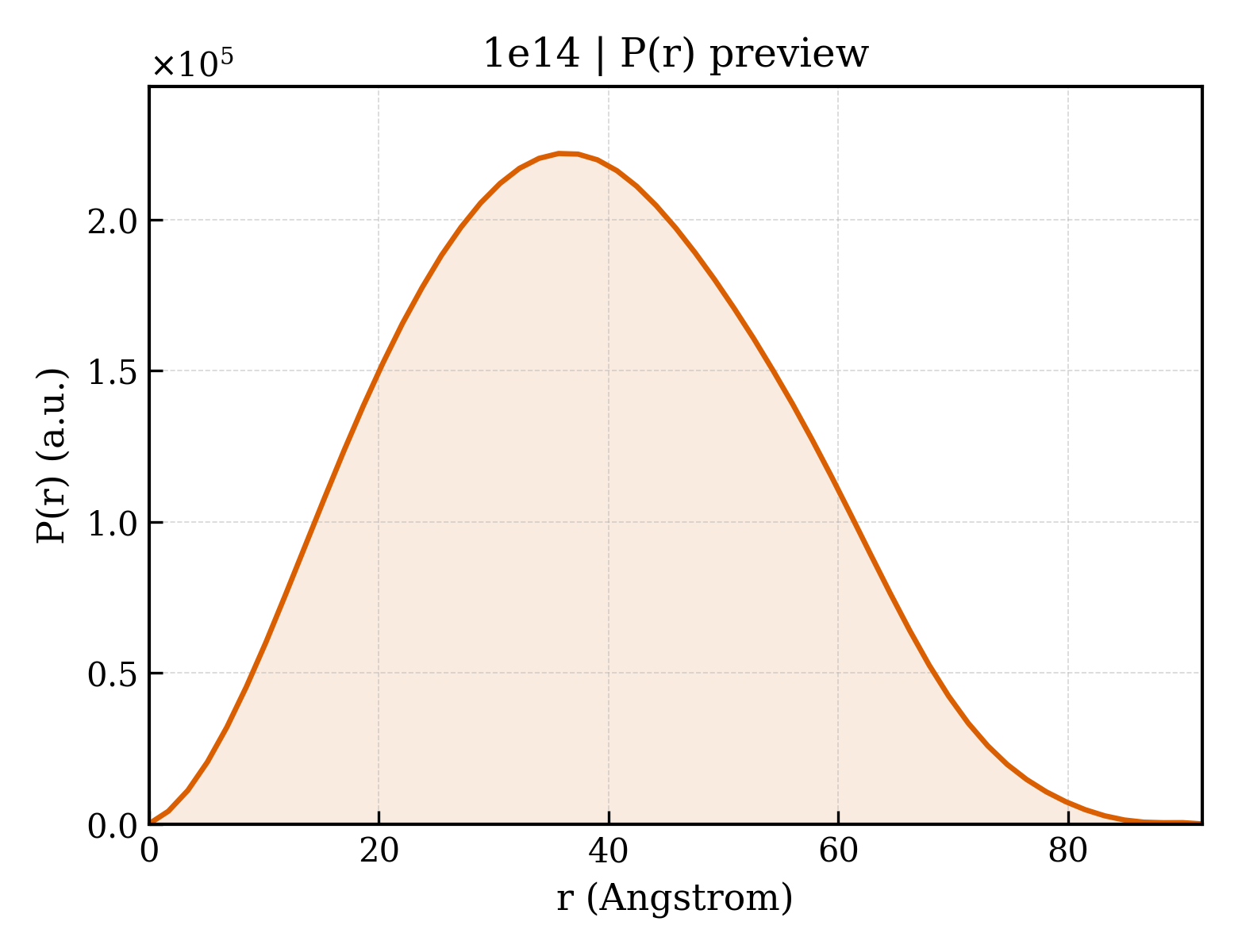

1e14__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.56 Å
Rg (electron density)	28.18 Å
Total Rg	29.08 Å
Atom count	7138
Residues	825
Excluded volume	130930 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1e14__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	Reaction center protein H chain
Molecular weight formula_weight	28066.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	7250

MVGVTAFGNFDLASLAIYSFWIFLAGLIYYLQTENMREGYPLENEDGTPAANQGPFPLPKPKTFILPHGRGTLTVPGPESEDRPIALARTAVSEGFPHAPTGDPMKDGVGPASWVARRDLPELDGHGHNKIKPMKAAAGFHVSAGKNPIGLPVRGCDLEIAGKVVDIWVDIPEQMARFLEVELKDGSTRLLPMQMVKVQSNRVHVNALSSDLFAGIPTIKSPTEVTLLEEDKICGYVAGGLMYAAPKRKSVVAAMLAEYA

Source Source

Source organism organism	Rhodobacter sphaeroides
NCBI taxonomy ID ncbi_taxonomy_id	1063
Host organism host_organism	RHODOBACTER SPHAEROIDES

Entity 2 Entity 2 polymer

Description description	Reaction center protein L chain
Molecular weight formula_weight	31346.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

ALLSFERKYRVPGGTLVGGNLFDFWVGPFYVGFFGVATFFFAALGIILIAWSAVLQGTWNPQLISVYPPALEYGLGGAPLAKGGLWQIITICATGAFVSWALREVEICRKLGIGYHIPFAFAFAILAYLTLVLFRPVMMGAWGYAFPYGIWTHLDWVSNTGYTYGNFHYNPAHMIAISFFFTNALALALHGALVLSAANPEKGKEMRTPDHEDTFFRDLVGYSIGTLGIHRLGLLLSLSAVFFSALCMIITGTIWFDQWVDWWQWWVKLPWWANIPGGING

Source Source

Source organism organism	Rhodobacter sphaeroides
NCBI taxonomy ID ncbi_taxonomy_id	1063
Host organism host_organism	RHODOBACTER SPHAEROIDES

Entity 3 Entity 3 polymer

Description description	Reaction center protein M chain
Molecular weight formula_weight	34466.6 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

AEYQNIFSQVQVRGPADLGMTEDVNLANRSGVGPFSTLLGWFGNAQLGPIYLGSLGVLSLFSGLMWFFTIGIWFWYQAGWNPAVFLRDLFFFSLEPPAPEYGLSFAAPLKEGGLWLIASFFMFVAVWSWWGRTYLRAQALGMGKHTAWAFLSAIWLWMVLGFIRPILMGSWSEAVPYGIFSHLDWTNNFSLVHGNLRYNPFHDLSIAFLYGSALLFAMHGATILAVSRFGGERELEQIADRGTAAERAALFWRWTMGFNATMEGIHRWAIWMAVLVTLTGGIGILLSGTVVDNWYVWGQNHGMAPLN

Source Source

Source organism organism	Rhodobacter sphaeroides
NCBI taxonomy ID ncbi_taxonomy_id	1063
Host organism host_organism	RHODOBACTER SPHAEROIDES

Entity 4 Entity 4 non-polymer

Description description	LAURYL DIMETHYLAMINE-N-OXIDE
Molecular weight formula_weight	229.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	BACTERIOCHLOROPHYLL A
Molecular weight formula_weight	911.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	BACTERIOPHEOPHYTIN A
Molecular weight formula_weight	889.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	UBIQUINONE-10
Molecular weight formula_weight	863.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	SPEROIDENONE
Molecular weight formula_weight	595.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 non-polymer

Description description	CARDIOLIPIN
Molecular weight formula_weight	1464.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 11 Entity 11 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	112

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1e14h1
Class class	b — All beta proteins
Fold Fold fold	b.41 — PRC-barrel domain
Superfamily Superfamily superfamily	b.41.1 — PRC-barrel domain
Family Family family	b.41.1.1 — Photosynthetic reaction centre, H-chain, cytoplasmic domain

Domain ID domain_id	d1e14h2
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.23 — Single transmembrane helix
Superfamily Superfamily superfamily	f.23.10 — Photosystem II reaction centre subunit H, transmembrane region
Family Family family	f.23.10.1 — Photosystem II reaction centre subunit H, transmembrane region

Domain ID domain_id	d1e14l_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.26 — Bacterial photosystem II reaction centre, L and M subunits
Superfamily Superfamily superfamily	f.26.1 — Bacterial photosystem II reaction centre, L and M subunits
Family Family family	f.26.1.1 — Bacterial photosystem II reaction centre, L and M subunits

Domain ID domain_id	d1e14m_
Class class	f — Membrane and cell surface proteins and peptides
Fold Fold fold	f.26 — Bacterial photosystem II reaction centre, L and M subunits
Superfamily Superfamily superfamily	f.26.1 — Bacterial photosystem II reaction centre, L and M subunits
Family Family family	f.26.1.1 — Bacterial photosystem II reaction centre, L and M subunits

CATH v4.4 (6 domains)

Domain ID domain_id	1e14H01
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	540 — Photosynthetic Reaction Center; Chain H, domain 1
Homologous superfamily homologous superfamily	10 — Photosynthetic reaction centre, H subunit, N-terminal domain

Domain ID domain_id	1e14H02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	50 — Photosynthetic Reaction Center; Chain H, domain 2
Homologous superfamily homologous superfamily	10 — Photosynthetic Reaction Center, subunit H, domain 2

Domain ID domain_id	1e14L01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
Homologous superfamily homologous superfamily	10 — Photosystem II protein D1-like

Domain ID domain_id	1e14L02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
Homologous superfamily homologous superfamily	10 — Photosystem II protein D1-like

Domain ID domain_id	1e14M01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
Homologous superfamily homologous superfamily	10 — Photosystem II protein D1-like

Domain ID domain_id	1e14M02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	85 — Photosynthetic Reaction Center, subunit M; domain 1
Homologous superfamily homologous superfamily	10 — Photosystem II protein D1-like

▶

Unit-cell length a length_a	140.000 Å
Unit-cell length b length_b	140.000 Å
Unit-cell length c length_c	184.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.2260
R_free r_free	0.2680
