1z9j

Photosynthetic Reaction Center from Rhodobacter sphaeroides

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Reaction center protein L chain

Rhodobacter sphaeroides

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Reaction center protein M chain × 1 （P0C0Y9） Reaction center protein H chain × 1 （P0C0Y7） BACTERIOCHLOROPHYLL A × 4 BACTERIOPHEOPHYTIN A × 2 UBIQUINONE-10 × 2 FE (III) ION × 1 MANGANESE (II) ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RCEL_RHOSH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–281； UniProt 2–282

Reaction center protein M chain

Rhodobacter sphaeroides

UniProt P0C0Y9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Reaction center protein L chain × 1 （P0C0Y8） Reaction center protein H chain × 1 （P0C0Y7） BACTERIOCHLOROPHYLL A × 4 BACTERIOPHEOPHYTIN A × 2 UBIQUINONE-10 × 2 FE (III) ION × 1 MANGANESE (II) ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RCEM_RHOSH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–307； UniProt 2–308

Reaction center protein H chain

Rhodobacter sphaeroides

UniProt P0C0Y7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Reaction center protein L chain × 1 （P0C0Y8） Reaction center protein M chain × 1 （P0C0Y9） BACTERIOCHLOROPHYLL A × 4 BACTERIOPHEOPHYTIN A × 2 UBIQUINONE-10 × 2 FE (III) ION × 1 MANGANESE (II) ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RCEH_RHOSH
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–260； UniProt 1–260

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1z9j
Deposition date deposition_date	2005-04-02
Structure title title	Photosynthetic Reaction Center from Rhodobacter sphaeroides
Keywords keywords	Alpha Helix, Membrane Protein, Mutant, PHOTOSYNTHESIS; PHOTOSYNTHESIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1z9j__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1z9j__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

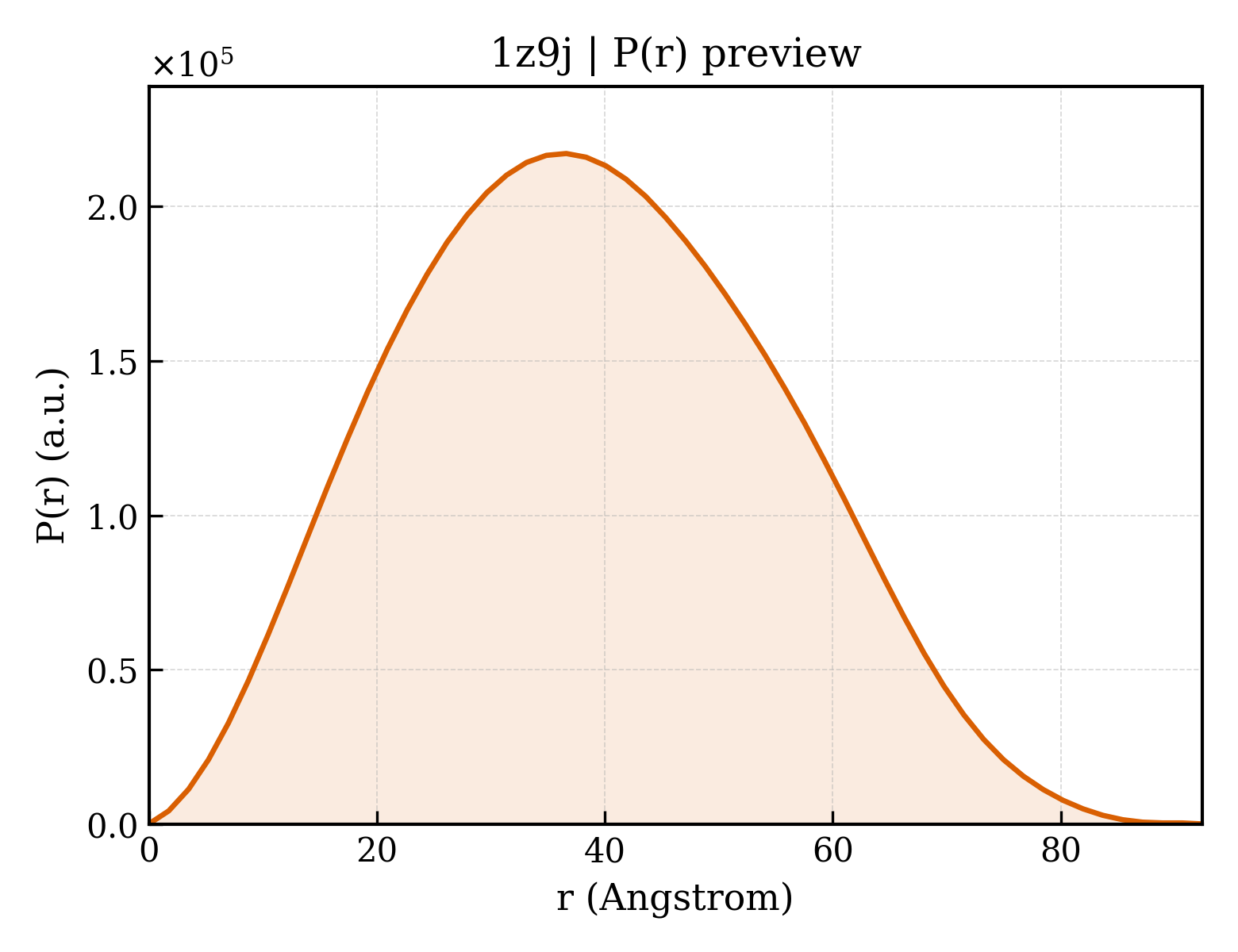

1z9j__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.80 Å
Rg (electron density)	28.52 Å
Total Rg	29.41 Å
Atom count	6955
Residues	821
Excluded volume	126610 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1z9j__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Reaction center protein L chain
Molecular weight formula_weight	31371.4 kDa
Mutation mutation	L131H
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6957

ALLSFERKYRVPGGTLVGGNLFDFWVGPFYVGFFGVATFFFAALGIILIAWSAVLQGTWNPQLISVYPPALEYGLGGAPLAKGGLWQIITICATGAFVSWALREVEICRKLGIGYHIPFAFAFAILAYLTHVLFRPVMMGAWGYAFPYGIWTHLDWVSNTGYTYGNFHYNPAHMIAISFFFTNALALALHGALVLSAANPEKGKEMRTPDHEDTFFRDLVGYSIGTLGIHRLGLLLSLSAVFFSALCMIITGTIWFDQWVDWWQWWVKLPWWANIPGGING

Source Source

Source organism organism	Rhodobacter sphaeroides
Common name common_name	Rhodopseudomonas sphaeroides
NCBI taxonomy ID ncbi_taxonomy_id	1063
Host organism host_organism	Rhodobacter sphaeroides

Entity 2 Entity 2 polymer

Description description	Reaction center protein M chain
Molecular weight formula_weight	34476.4 kDa
Mutation mutation	L160H, R164Y, M168E, F197H, G288D
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

AEYQNIFSQVQVRGPADLGMTEDVNLANRSGVGPFSTLLGWFGNAQLGPIYLGSLGVLSLFSGLMWFFTIGIWFWYQAGWNPAVFLRDLFFFSLEPPAPEYGLSFAAPLKEGGLWLIASFFMFVAVWSWWGRTYLRAQALGMGKHTAWAFLSAIWLWMVHGFIYPILEGSWSEAVPYGIFSHLDWTNNFSLVHGNLHYNPFHGLSIAFLYGSALLFAMHGATILAVSRFGGERELEQIADRGTAAERAALFWRWTMGFNATMEGIHRWAIWMAVLVTLTGGIGILLSDTVVDNWYVWGQNHGMAPLN

Source Source

Source organism organism	Rhodobacter sphaeroides
Common name common_name	Rhodopseudomonas sphaeroides
NCBI taxonomy ID ncbi_taxonomy_id	1063
Host organism host_organism	Rhodobacter sphaeroides

Entity 3 Entity 3 polymer

Description description	Reaction center protein H chain
Molecular weight formula_weight	28066.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MVGVTAFGNFDLASLAIYSFWIFLAGLIYYLQTENMREGYPLENEDGTPAANQGPFPLPKPKTFILPHGRGTLTVPGPESEDRPIALARTAVSEGFPHAPTGDPMKDGVGPASWVARRDLPELDGHGHNKIKPMKAAAGFHVSAGKNPIGLPVRGCDLEIAGKVVDIWVDIPEQMARFLEVELKDGSTRLLPMQMVKVQSNRVHVNALSSDLFAGIPTIKSPTEVTLLEEDKICGYVAGGLMYAAPKRKSVVAAMLAEYA

Source Source

Source organism organism	Rhodobacter sphaeroides
Common name common_name	Rhodopseudomonas sphaeroides
NCBI taxonomy ID ncbi_taxonomy_id	1063
Host organism host_organism	Rhodobacter sphaeroides

Entity 4 Entity 4 non-polymer

Description description	BACTERIOCHLOROPHYLL A
Molecular weight formula_weight	911.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	BACTERIOPHEOPHYTIN A
Molecular weight formula_weight	889.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	UBIQUINONE-10
Molecular weight formula_weight	863.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2

▶

Unit-cell length a length_a	203.840 Å
Unit-cell length b length_b	203.840 Å
Unit-cell length c length_c	119.890 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 42 2 2
Space-group number int_tables_number	93
Crystal system crystal_system	—

Resolution resolution	4.500 Å
Low-resolution limit resolution_low	19.960 Å
R factor r_factor	0.2990
R_work r_work	0.2990
R_free r_free	0.3380
