1e22

LYSYL-TRNA SYNTHETASE (LYSU) HEXAGONAL FORM complexed with lysine and the non-hydrolysable atp analogue amp-pcp

Method: X-RAY DIFFRACTION D_max: 93.2 Å Quality: GOOD

SAXS Profile

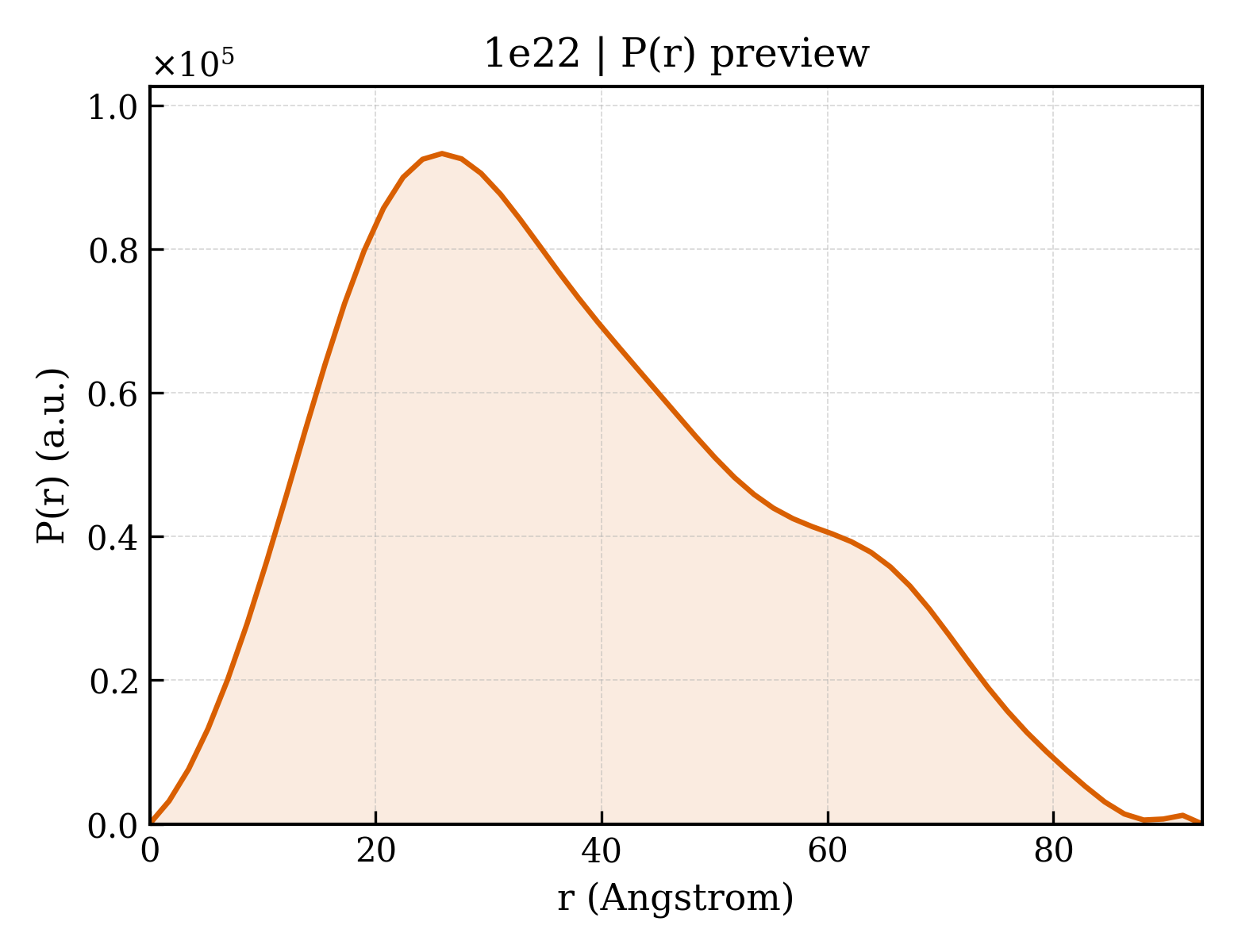

P(r) Distribution

▼

1. Structure Basics

entry_id	1e22
deposition_date	2000-05-15
title	LYSYL-TRNA SYNTHETASE (LYSU) HEXAGONAL FORM complexed with lysine and the non-hydrolysable atp analogue amp-pcp
keywords	LIGASE, AMINOACYL-TRNA SYNTHETASE, PROTEIN BIOSYNTHESIS; LIGASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.12 Å
rg_electron	28.59 Å
i0	51133400.00
molecular_weight	55406.0 kDa
excluded_volume	69134 Å³
envelope_volume	87307 Å³
shell_volume	27009 Å³
envelope_diameter	99.2 Å
shell_rg	34.12 Å
envelope_rg	28.67 Å
shape_rg	28.61 Å
total_rg	29.06 Å
total_atoms	3896
n_residues	485
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	93.2 Å
rg_real	29.31 Å
rg_real_error	0.81 Å
i0_real	5.1130e+07
i0_real_error	8.6070e+05
rg_reciprocal	29.23 Å
i0_reciprocal	51130000.0000
total_estimate	0.8554
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	25.9 Å
skewness	0.448
kurtosis	-0.586
angular_range	— – 0.2700 Å⁻¹
current_alpha	0.0000
highest_alpha	10720000.0000
n_real_points	55
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.825; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.862; Smooth: 0.779

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	LYSYL-TRNA SYNTHETASE
formula_weight	57767.2 kDa
ec_number	6.1.1.6
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4202

SEQETRGANEAIDFNDELRNRREKLAALRQQGVAFPNDFRRDHTSDQLHEEFDAKDNQELESLNIEVSVAGRMMTRRIMGKASFVTLQDVGGRIQLYVARDSLPEGVYNDQFKKWDLGDIIGARGTLFKTQTGELSIHCTELRLLTKALRPLPDKFHGLQDQEVRYRQRYLDLIANDKSRQTFVVRSKILAAIRQFMVARGFMEVETPMMQVIPGGASARPFITHHNALDLDMYLRIAPELYLKRLVVGGFERVFEINRNFRNEGISVRHNPEFTMMELYMAYADYHDLIELTESLFRTLAQEVLGTTKVTYGEHVFDFGKPFEKLTMREAIKKYRPETDMADLDNFDAAKALAESIGITVEKSWGLGRIVTEIFDEVAEAHLIQPTFITEYPAEVSPLARRNDVNPEITDRFEFFIGGREIGNGFSELNDAEDQAERFQEQVNAKAAGDDEAMFYDEDYVTALEYGLPPTAGLGIGIDRMIMLFTNSHTIRDVILFPAMRPQK

Source

organism	ESCHERICHIA COLI
ncbi_taxonomy_id	83333
host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

description	LYSINE
formula_weight	147.2 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER
formula_weight	505.2 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	3

Entity 5 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	6

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	306

▶

6. Citations (1)

▶

length_a	142.020 Å
length_b	142.020 Å
length_c	175.390 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 61 2 2
int_tables_number	178
crystal_system	—

resolution	2.430 Å
resolution_low	12.000 Å
r_factor	0.1760
r_work	0.1760
r_free	0.2280
