SAXSdb — 1e24

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LYSYL-TRNA SYNTHETASE

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	LYSINE × 2 ADENOSINE-5'-TRIPHOSPHATE × 2 MANGANESE (II) ION × 6 GLYCEROL × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SYK2_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–504； UniProt 1–504

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e24
Deposition date deposition_date	2000-05-16
Structure title title	LYSYL-TRNA SYNTHETASE (LYSU) HEXAGONAL FORM complexed with lysine and ATP and MN2+
Keywords keywords	LIGASE, AMINOACYL-TRNA SYNTHETASE, PROTEIN BIOSYNTHESIS; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1e24__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1e24__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

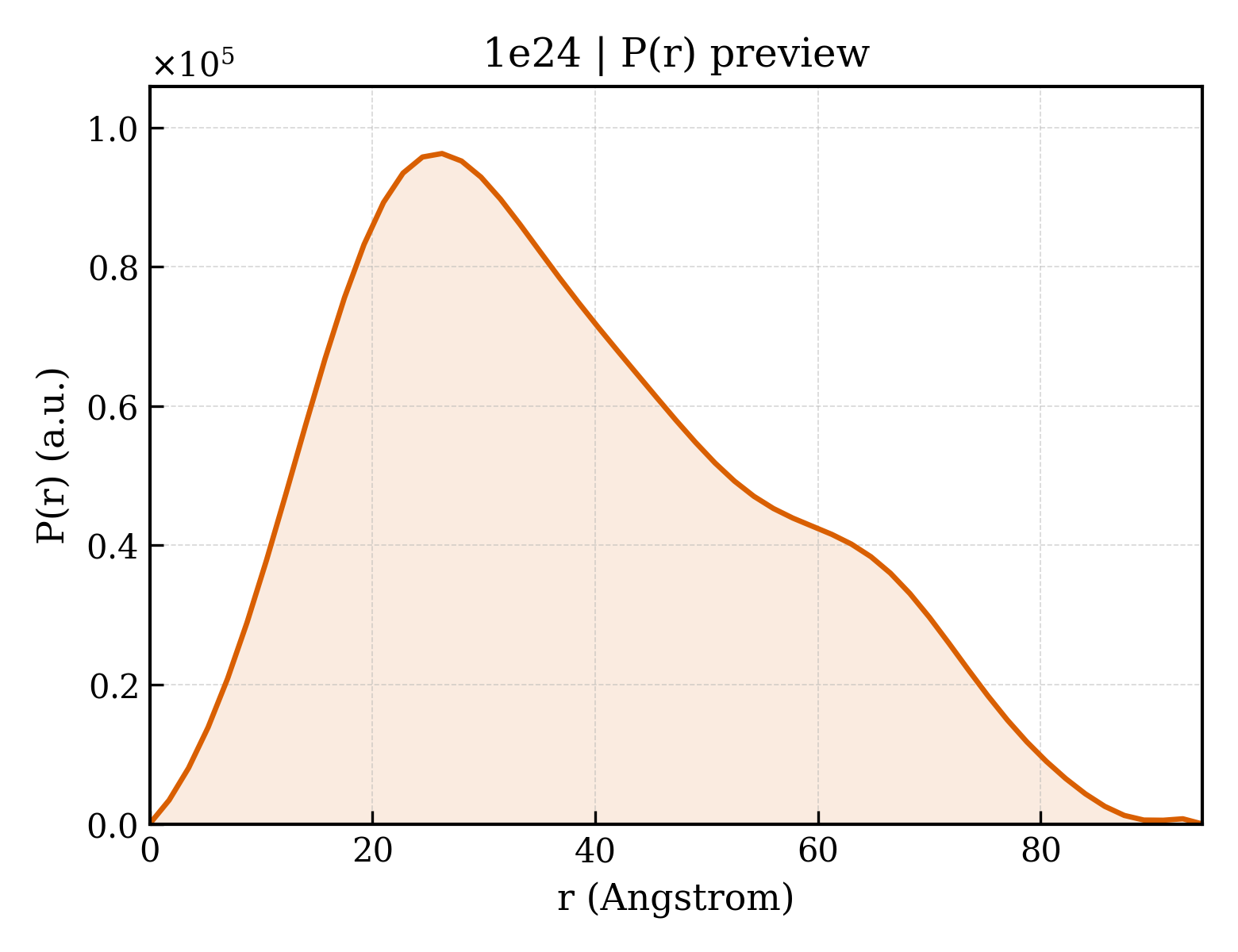

1e24__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.88 Å
Rg (electron density)	31.04 Å
Total Rg	31.52 Å
Atom count	7854
Residues	970
Excluded volume	139050 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1e24__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	LYSYL-TRNA SYNTHETASE
Molecular weight formula_weight	57767.2 kDa
EC 编号 ec_number	6.1.1.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4287

SEQETRGANEAIDFNDELRNRREKLAALRQQGVAFPNDFRRDHTSDQLHEEFDAKDNQELESLNIEVSVAGRMMTRRIMGKASFVTLQDVGGRIQLYVARDSLPEGVYNDQFKKWDLGDIIGARGTLFKTQTGELSIHCTELRLLTKALRPLPDKFHGLQDQEVRYRQRYLDLIANDKSRQTFVVRSKILAAIRQFMVARGFMEVETPMMQVIPGGASARPFITHHNALDLDMYLRIAPELYLKRLVVGGFERVFEINRNFRNEGISVRHNPEFTMMELYMAYADYHDLIELTESLFRTLAQEVLGTTKVTYGEHVFDFGKPFEKLTMREAIKKYRPETDMADLDNFDAAKALAESIGITVEKSWGLGRIVTEIFDEVAEAHLIQPTFITEYPAEVSPLARRNDVNPEITDRFEFFIGGREIGNGFSELNDAEDQAERFQEQVNAKAAGDDEAMFYDEDYVTALEYGLPPTAGLGIGIDRMIMLFTNSHTIRDVILFPAMRPQK

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	LYSINE
Molecular weight formula_weight	147.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	360

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1e24a1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.1 — Anticodon-binding domain

Domain ID domain_id	d1e24a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

CATH v4.4 (2 domains)

Domain ID domain_id	1e24A01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1e24A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

▶

Unit-cell length a length_a	143.600 Å
Unit-cell length b length_b	143.600 Å
Unit-cell length c length_c	177.230 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.1820
R_work r_work	0.1820
R_free r_free	0.2490
