1e2z
Q158L mutant of cytochrome f from Chlamydomonas reinhardtii
SAXS Profile

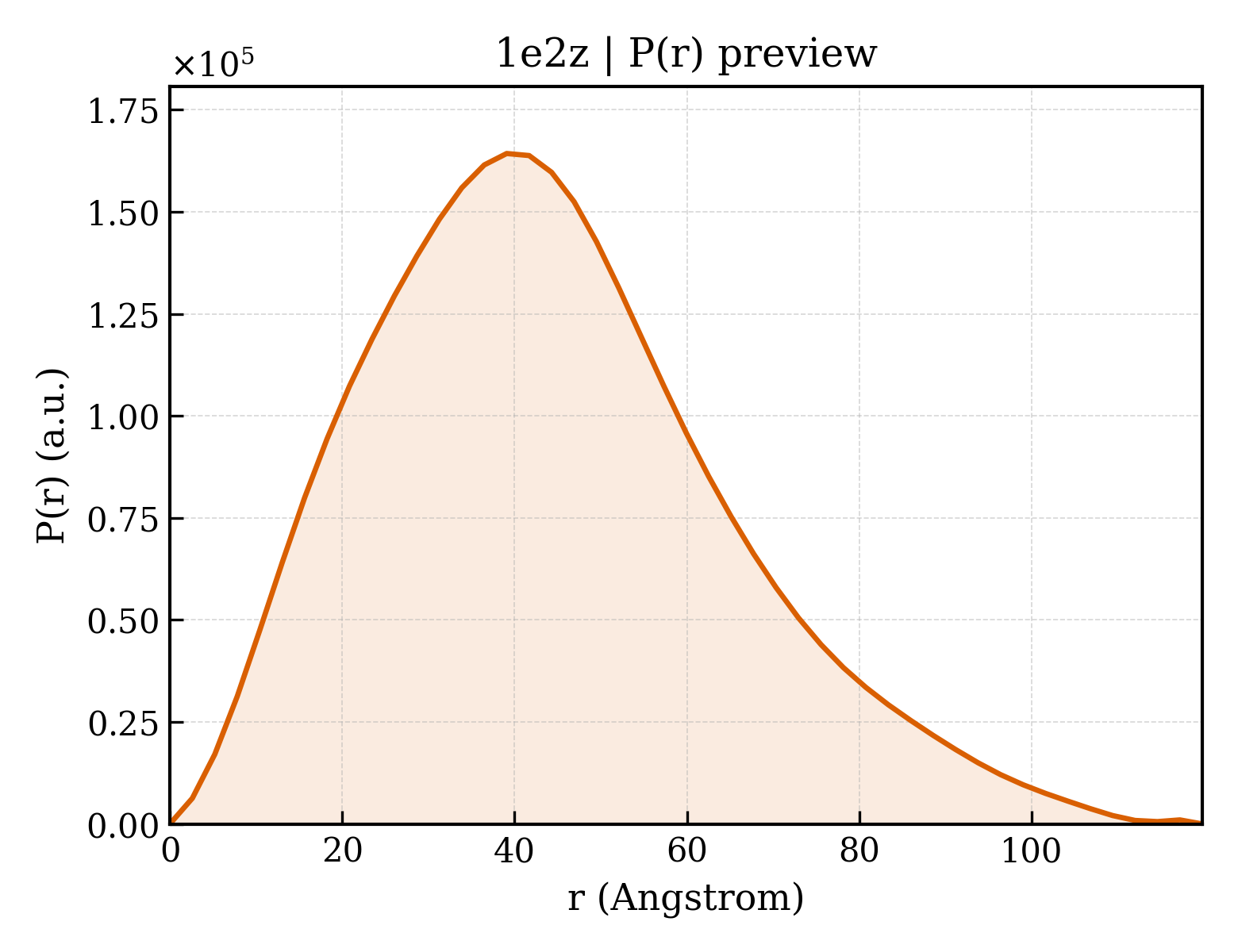

P(r) Distribution
1. Structure Basics
| entry_id | 1e2z |
| deposition_date | 2000-05-30 |
| title | Q158L mutant of cytochrome f from Chlamydomonas reinhardtii |
| keywords | ELECTRON TRANSPORT PROTEINS, INTERNAL WATER CHAIN, PHOTOSYNTHETIC FUNCTION IMPAIRED; ELECTRON TRANSPORT PROTEINS |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 34.10 Å |
| rg_electron | 33.91 Å |
| i0 | 102818000.00 |
| molecular_weight | 83273.0 kDa |
| excluded_volume | 105490 ų |
| envelope_volume | 145750 ų |
| shell_volume | 37913 ų |
| envelope_diameter | 128.5 Å |
| shell_rg | 37.98 Å |
| envelope_rg | 33.93 Å |
| shape_rg | 33.89 Å |
| total_rg | 34.36 Å |
| total_atoms | 5874 |
| n_residues | 753 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 119.8 Å |
| rg_real | 34.25 Å |
| rg_real_error | 1.14 Å |
| i0_real | 1.0280e+08 |
| i0_real_error | 1.7160e+06 |
| rg_reciprocal | 34.16 Å |
| i0_reciprocal | 102800000.0000 |
| total_estimate | 0.8583 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 39.1 Å |
| skewness | 0.511 |
| kurtosis | -0.029 |
| angular_range | — – 0.2300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8120000.0000 |
| n_real_points | 47 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.763; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.899 |
