SAXSdb — 1e3e

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ALCOHOL DEHYDROGENASE, CLASS II

MUS MUSCULUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 2 ZINC ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9QYY9
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–376； UniProt 2–377 Author chain B； PDBConstruct 1–376； UniProt 2–377

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e3e
Deposition date deposition_date	2000-06-14
Structure title title	Mouse class II alcohol dehydrogenase complex with NADH
Keywords keywords	OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1e3e__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1e3e__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

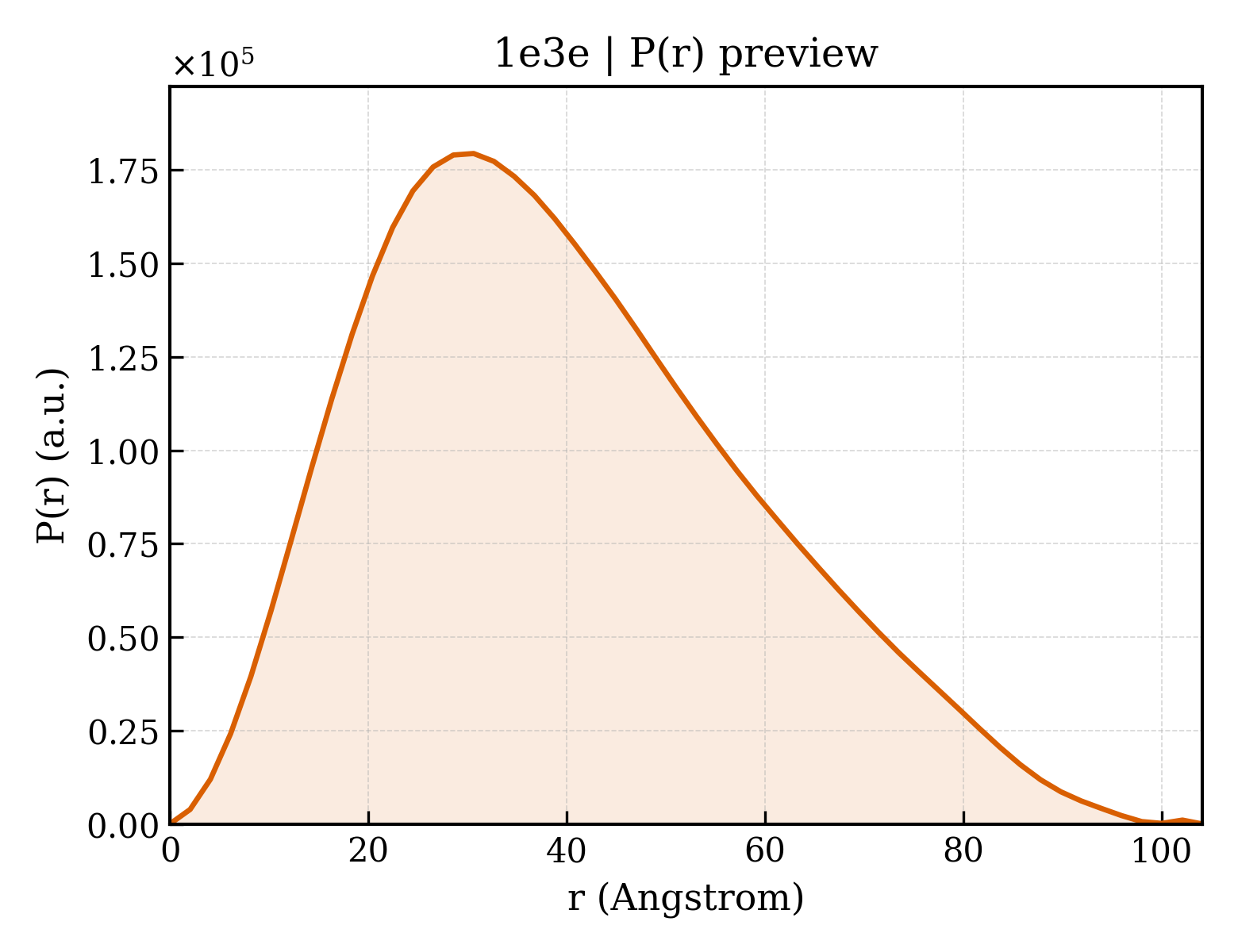

1e3e__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.93 Å
Rg (electron density)	30.84 Å
Total Rg	31.28 Å
Atom count	5670
Residues	749
Excluded volume	101980 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1e3e__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ALCOHOL DEHYDROGENASE, CLASS II
Molecular weight formula_weight	40094.4 kDa
EC 编号 ec_number	1.1.1.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6172

GTQGKVIKCKAAIAWKTGSPLCIEEIEVSPPKACEVRIQVIATCVCPTDINATDPKKKALFPVVLGHECAGIVESVGPGVTNFKPGDKVIPFFAPQCKRCKLCLSPLTNLCGKLRNFKYPTIDQELMEDRTSRFTCKGRSIYHFMGVSSFSQYTVVSEANLARVDDEANLERVCLIGCGFSSGYGAAINTAKVTPGSTCAVFGLGCVGLSAIIGCKIAGASRIIAIDINGEKFPKAKALGATDCLNPRELDKPVQDVITELTAGGVDYSLDCAGTAQTLKAAVDCTVLGWGSCTVVGAKVDEMTIPTVDVILGRSINGTFFGGWKSVDSVPNLVSDYKNKKFDLDLLVTHALPFESINDAIDLMKEGKSIRTILTF

Source Source

Source organism organism	MUS MUSCULUS
Common name common_name	HOUSE MOUSE
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE
Molecular weight formula_weight	665.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	502

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1e3ea1
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1e3ea2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain

Domain ID domain_id	d1e3eb1
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1e3eb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain

CATH v4.4 (4 domains)

Domain ID domain_id	1e3eA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	180 — Quinone Oxidoreductase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Medium-chain alcohol dehydrogenases, catalytic domain

Domain ID domain_id	1e3eA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1e3eB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	180 — Quinone Oxidoreductase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Medium-chain alcohol dehydrogenases, catalytic domain

Domain ID domain_id	1e3eB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

▶

Unit-cell length a length_a	81.275 Å
Unit-cell length b length_b	82.900 Å
Unit-cell length c length_c	105.528 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.120 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.2020
R_work r_work	0.2020
R_free r_free	0.2590
