1e3l

P47H mutant of mouse class II alcohol dehydrogenase complex with NADH

Method: X-RAY DIFFRACTION D_max: 101.2 Å Quality: GOOD

SAXS Profile

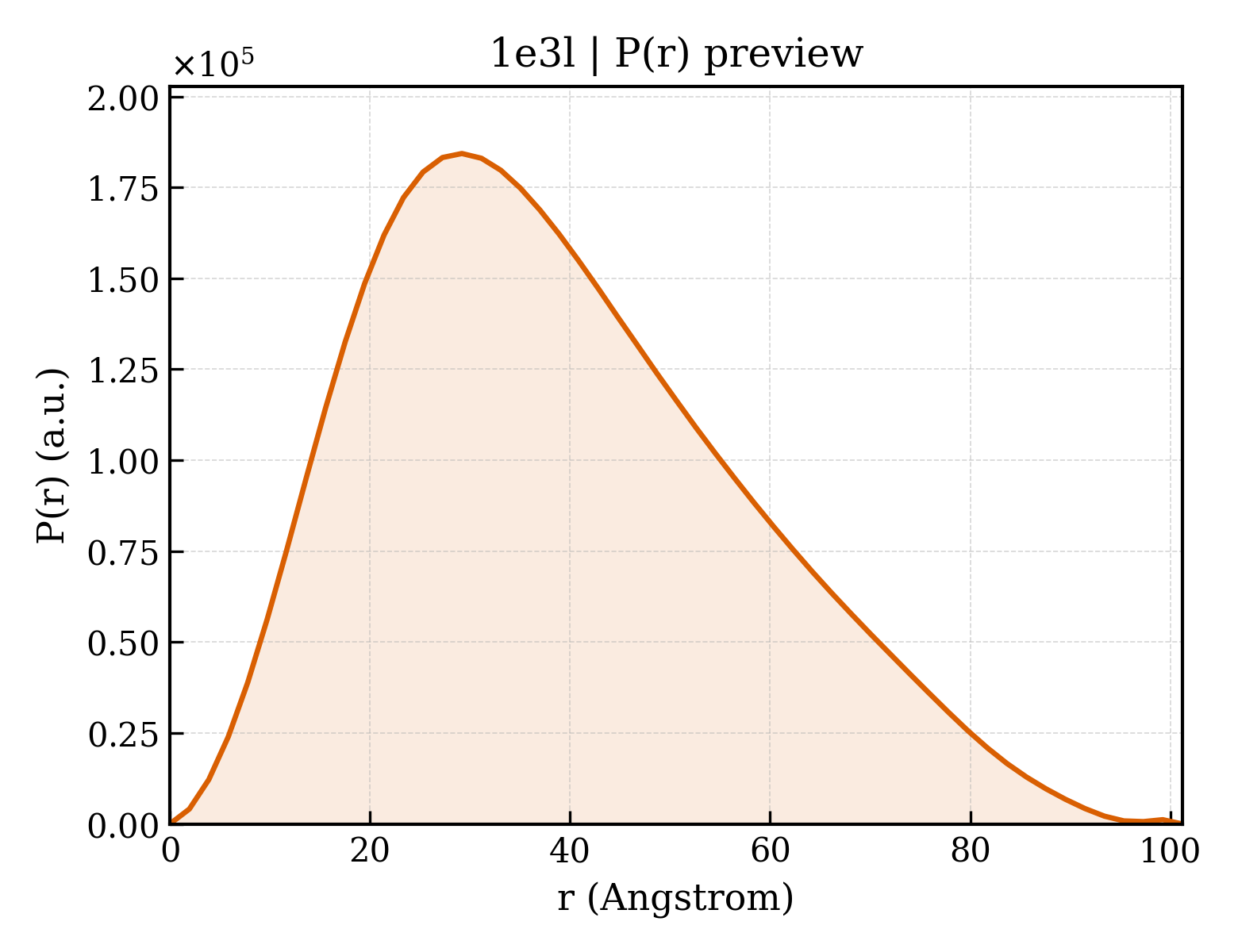

P(r) Distribution

▼

1. Structure Basics

entry_id	1e3l
deposition_date	2000-06-19
title	P47H mutant of mouse class II alcohol dehydrogenase complex with NADH
keywords	ALCOHOL DEHYDROGENASE; ALCOHOL DEHYDROGENASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.20 Å
rg_electron	30.09 Å
i0	105512000.00
molecular_weight	81487.0 kDa
excluded_volume	102040 Å³
envelope_volume	120000 Å³
shell_volume	34166 Å³
envelope_diameter	109.5 Å
shell_rg	36.20 Å
envelope_rg	30.17 Å
shape_rg	30.10 Å
total_rg	30.56 Å
total_atoms	5678
n_residues	749
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	101.2 Å
rg_real	30.37 Å
rg_real_error	0.76 Å
i0_real	1.0550e+08
i0_real_error	1.6560e+06
rg_reciprocal	30.30 Å
i0_reciprocal	105500000.0000
total_estimate	0.8591
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	29.2 Å
skewness	0.485
kurtosis	-0.367
angular_range	— – 0.2600 Å⁻¹
current_alpha	0.0000
highest_alpha	60040000.0000
n_real_points	53
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.807; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.865; Smooth: 0.879

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	ALCOHOL DEHYDROGENASE, CLASS II
formula_weight	40135.4 kDa
ec_number	1.1.1.1
mutation	YES
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	5855

GTQGKVIKCKAAIAWKTGSPLCIEEIEVSPPKACEVRIQVIATCVCHTDINATDPKKKALFPVVLGHECAGIVESVGPGVTNFKPGDKVIPFFAPQCKRCKLCLSPLTNLCGKLRNFKYPTIDQELMEDRTSRFTCKGRSIYHFMGVSSFSQYTVVSEANLARVDDEANLERVCLIGCGFSSGYGAAINTAKVTPGSTCAVFGLGCVGLSAIIGCKIAGASRIIAIDINGEKFPKAKALGATDCLNPRELDKPVQDVITELTAGGVDYSLDCAGTAQTLKAAVDCTVLGWGSCTVVGAKVDEMTIPTVDVILGRSINGTFFGGWKSVDSVPNLVSDYKNKKFDLDLLVTHALPFESINDAIDLMKEGKSIRTILTF

Source

organism	MUS MUSCULUS
common_name	HOUSE MOUSE
ncbi_taxonomy_id	10090
host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
formula_weight	663.4 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	4

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	177

▶

6. Citations (1)

▶

length_a	79.156 Å
length_b	80.639 Å
length_c	102.757 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.500 Å
resolution_low	25.000 Å
r_factor	0.1973
r_work	0.1973
r_free	0.2598
