1e41
Death domain from human FADD/MORT1

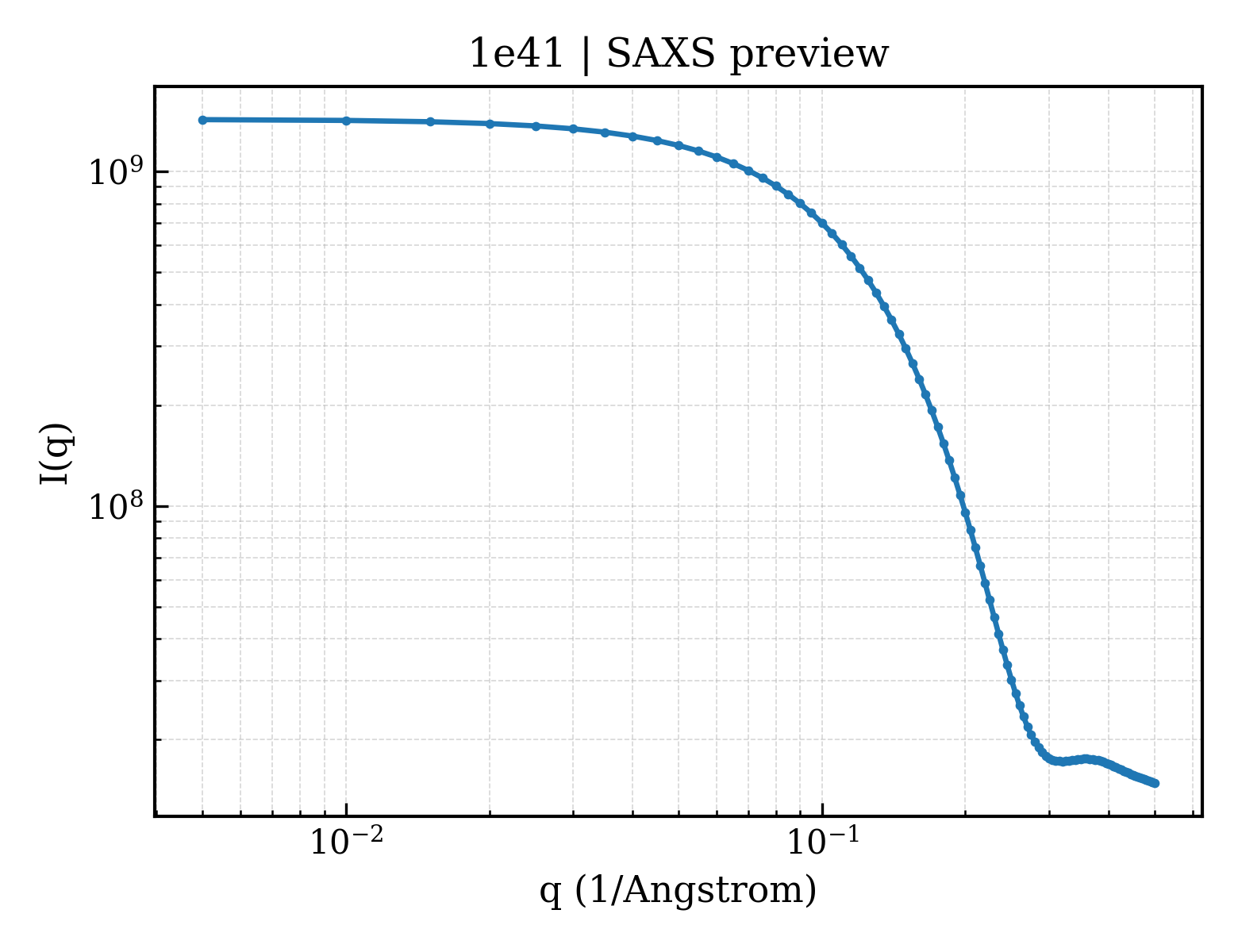

SAXS Profile

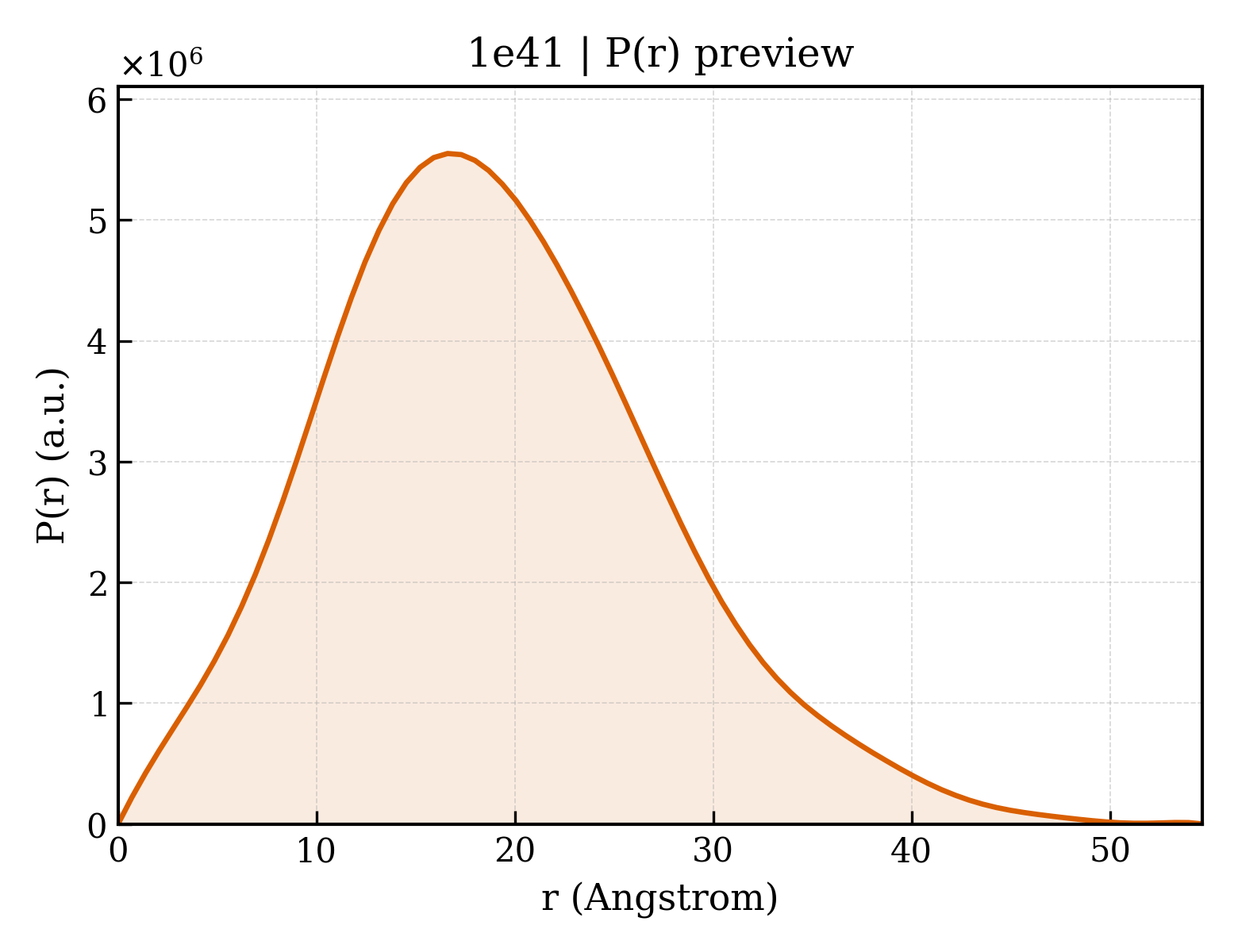

P(r) Distribution
1. Structure Basics
| entry_id | 1e41 |
| deposition_date | 2000-06-27 |
| title | Death domain from human FADD/MORT1 |
| keywords | APOPTOSIS, DEATH DOMAIN, ADAPTER MOLECULE, FAS RECEPTOR DEATH INDUCING SIGNALLING COMPLEX; APOPTOSIS |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.67 Å |
| rg_electron | 14.08 Å |
| i0 | 1428550000.00 |
| molecular_weight | 296310.0 kDa |
| excluded_volume | 362020 ų |
| envelope_volume | 36716 ų |
| shell_volume | 17298 ų |
| envelope_diameter | 59.4 Å |
| shell_rg | 24.21 Å |
| envelope_rg | 18.64 Å |
| shape_rg | 14.07 Å |
| total_rg | 14.28 Å |
| total_atoms | 41350 |
| n_residues | 2600 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.7 Å |
| rg_real | 14.69 Å |
| rg_real_error | 0.34 Å |
| i0_real | 1.4290e+09 |
| i0_real_error | 1.4670e+07 |
| rg_reciprocal | 14.69 Å |
| i0_reciprocal | 1429000000.0000 |
| total_estimate | 0.8148 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.6 Å |
| skewness | 0.446 |
| kurtosis | 0.086 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0001 |
| highest_alpha | 341900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.579; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.854; Smooth: 0.998 |
