1e3y
Death domain from human FADD/MORT1
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1e3y |
| deposition_date | 2000-06-26 |
| title | Death domain from human FADD/MORT1 |
| keywords | APOPTOSIS, DEATH DOMAIN, ADAPTER MOLECULE, FAS RECEPTOR DEATH INDUCING SIGNALLING COMPLEX; APOPTOSIS |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.40 Å |
| rg_electron | 13.99 Å |
| i0 | 3333830.00 |
| molecular_weight | 11852.0 kDa |
| excluded_volume | 14481 ų |
| envelope_volume | 16974 ų |
| shell_volume | 10721 ų |
| envelope_diameter | 56.4 Å |
| shell_rg | 19.22 Å |
| envelope_rg | 14.73 Å |
| shape_rg | 13.97 Å |
| total_rg | 15.12 Å |
| total_atoms | 1654 |
| n_residues | 104 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

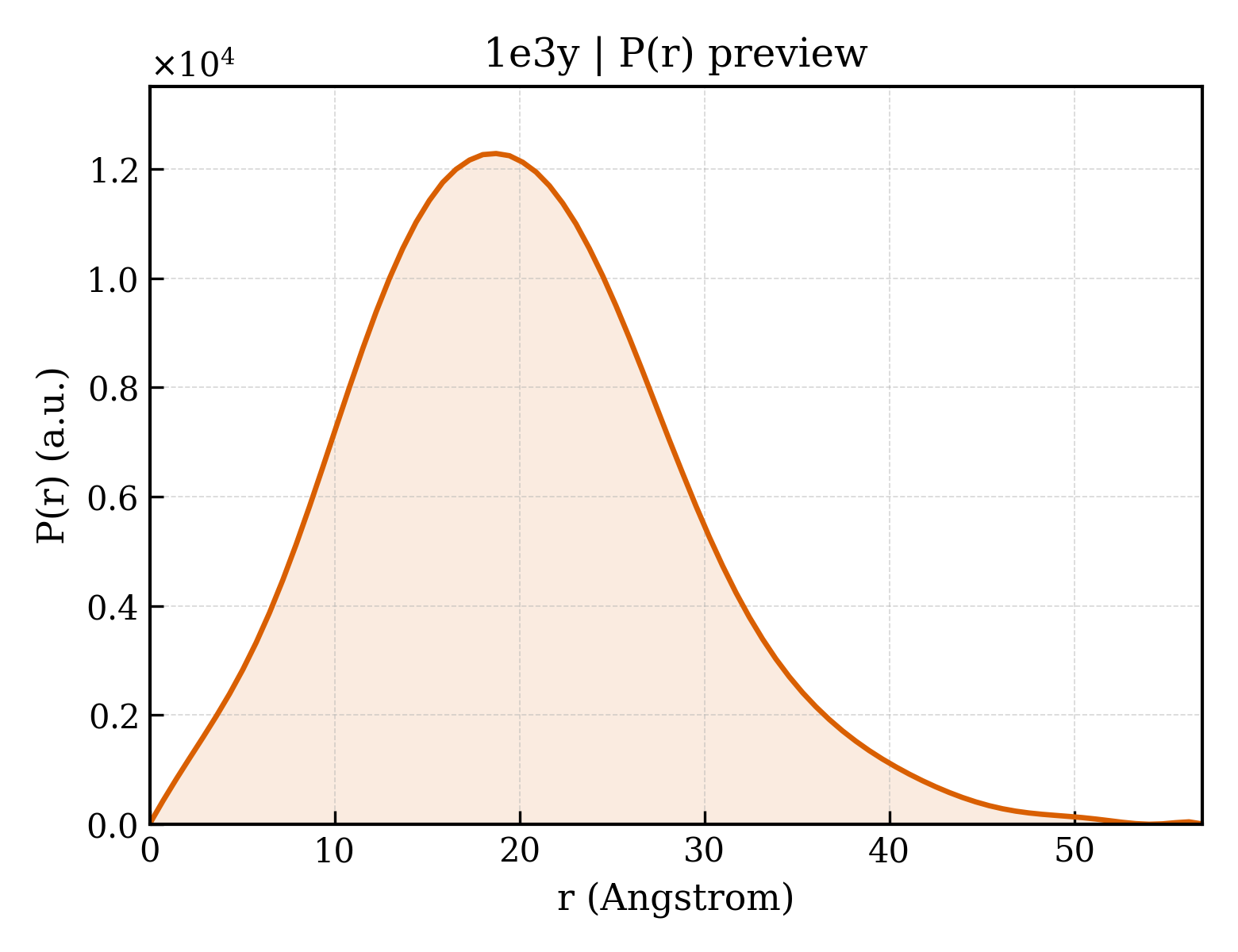

3. P(r) Analysis (GNOM)
| dmax | 56.9 Å |
| rg_real | 15.39 Å |
| rg_real_error | 0.46 Å |
| i0_real | 3.3340e+06 |
| i0_real_error | 4.1190e+04 |
| rg_reciprocal | 15.39 Å |
| i0_reciprocal | 3334000.0000 |
| total_estimate | 0.5998 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 18.7 Å |
| skewness | 0.405 |
| kurtosis | 0.097 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 499900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.597; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.899; Smooth: 0.000 |
