SAXSdb — 8ybx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Caspase-8 subunit p10

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	CASP8 and FADD-like apoptosis regulator subunit p43 × 4 （O15519） FAS-associated death domain protein × 3 （Q13158）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CASP8_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–479； UniProt 1–479 Author chain B； PDBConstruct 1–479； UniProt 1–479 Author chain C； PDBConstruct 1–479； UniProt 1–479

CASP8 and FADD-like apoptosis regulator subunit p43

Homo sapiens

UniProt O15519

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Caspase-8 subunit p10 × 3 （Q14790） FAS-associated death domain protein × 3 （Q13158）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CFLAR_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 1–181； UniProt 1–181 Author chain I； PDBConstruct 1–181； UniProt 1–181 Author chain J； PDBConstruct 1–181； UniProt 1–181 Author chain K； PDBConstruct 1–181； UniProt 1–181

FAS-associated death domain protein

Homo sapiens

UniProt Q13158

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Caspase-8 subunit p10 × 3 （Q14790） CASP8 and FADD-like apoptosis regulator subunit p43 × 4 （O15519）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FADD_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain L； PDBConstruct 1–208； UniProt 1–208 Author chain Q； PDBConstruct 1–208； UniProt 1–208 Author chain R； PDBConstruct 1–208； UniProt 1–208

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ybx
Deposition date deposition_date	2024-02-16
Last revision last_revision	2024-05-15
Structure title title	Structure of the FADD/Caspase-8/cFLIP death effector domain assembly
Keywords keywords	FADD, caspase-8, cellular FLICE-like inhibitory protein, Death effector domain, APOPTOSIS; APOPTOSIS
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ybx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

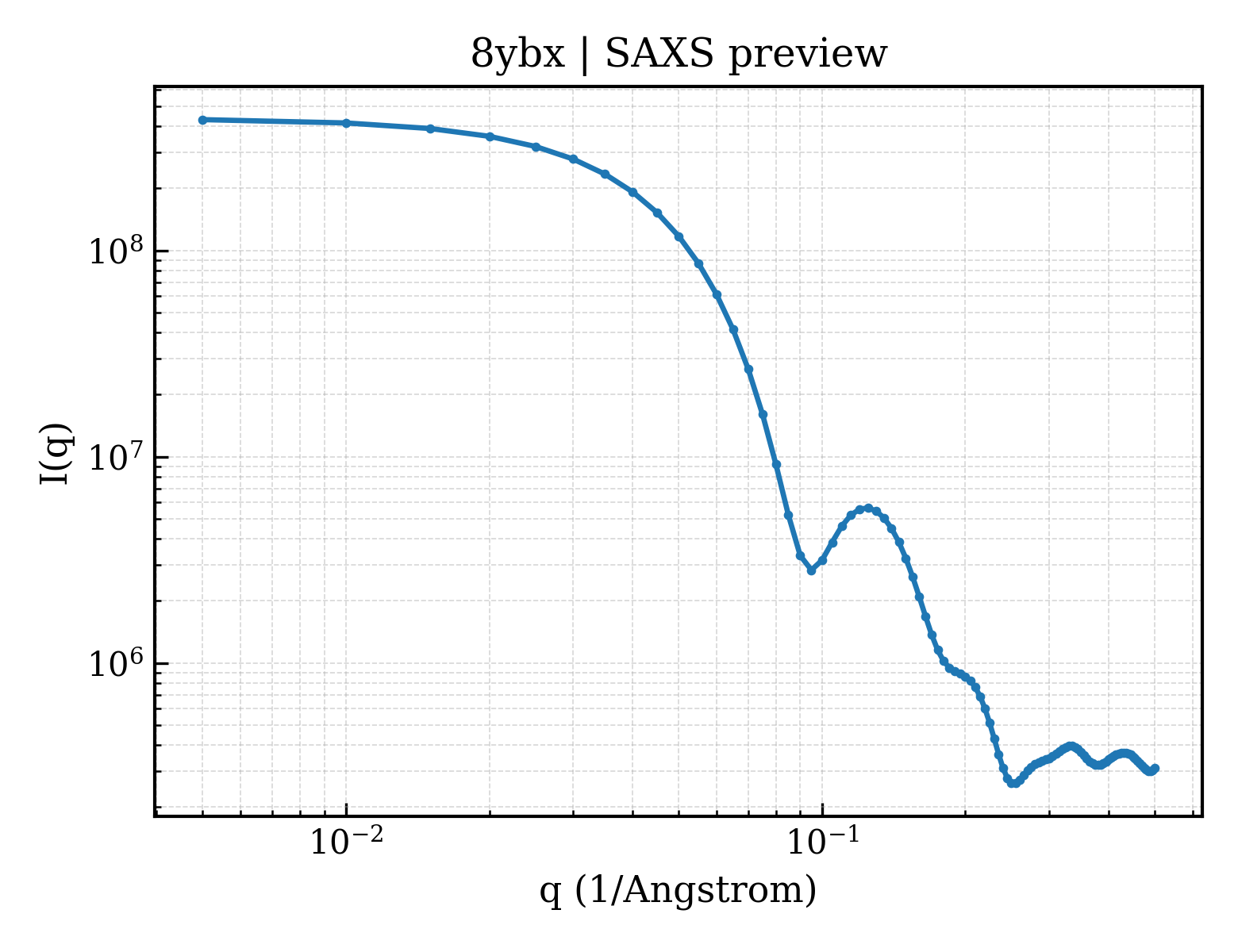

8ybx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8ybx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.68 Å
Rg (electron density)	37.67 Å
Total Rg	38.16 Å
Atom count	12126
Residues	1482
Excluded volume	218760 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ybx__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Caspase-8 subunit p10
Molecular weight formula_weight	55191.6 kDa
Mutation mutation	F122G/L123G, C360A, D374A, D384A
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	12126

MDFSRNLYDIGEQLDSEDLASLKFLSLDYIPQRKQEPIKDALMLFQRLQEKRMLEESNLSFLKELLFRINRLDLLITYLNTRKEEMERELQTPGRAQISAYRVMLYQISEEVSRSELRSFKGGLQEEISKCKLDDDMNLLDIFIEMEKRVILGEGKLDILKRVCAQINKSLLKIINDYEEFSKERSSSLEGSPDEFSNGEELCGVMTISDSPREQDSESQTLDKVYQMKSKPRGYCLIINNHNFAKAREKVPKLHSIRDRNGTHLDAGALTTTFEELHFEIKPHDDCTVEQIYEILKIYQLMDHSNMDCFICCILSHGDKGIIYGTDGQEAPIYELTSQFTGLKCPSLAGKPKVFFIQAAQGDNYQKGIPVETASEEQPYLEMALSSPQTRYIPDEADFLLGMATVNNCVSYRNPAEGTWYIQSLCQSLRERCPRGDDILTILTEVNYEVSNKDDKKNMGKQMPQPTFTLRKKLVFPSD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	CASP8 and FADD-like apoptosis regulator subunit p43
Molecular weight formula_weight	20878.5 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,I,J,K

MSAEVIHQVEEALDTDEKEMLLFLCRDVAIDVVPPNVRDLLDILRERGKLSVGDLAELLYRVRRFDLLKRILKMDRKAVETHLLRNPHLVSDYRVLMAEIGEDLDKSDVSSLIFLMKDYMGRGKISKEKSFLDLVVELEKLNLVAPDQLDLLEKCLKNIHRIDLKTKIQKYKQSVQGAGTS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 polymer

Description description	FAS-associated death domain protein
Molecular weight formula_weight	24381.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,R,Q

MDPFLVLLHSVSSSLSSSELTELKFLCLGRVGKRKLERVQSGLDLFSMLLEQNDLEPGHTELLRELLASLRRHDLLRRVDDFEAGAAAGAAPGEEDLCAAFNVICDNVGKDWRRLARQLKVSDTKIDSIEDRYPRNLTERVRESLRIWKNTEKENATVAHLVGALRSCQMNLVADLVQEVQQARDLQNRSGAMSPMSWNSDASTSEASLEHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.68 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	28685
