1qdu

CRYSTAL STRUCTURE OF THE COMPLEX OF CASPASE-8 WITH THE TRIPEPTIDE KETONE INHIBITOR ZEVD-DCBMK

Method: X-RAY DIFFRACTION D_max: 133.9 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CASPASE-8 ALPHA-CHAIN

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 222–374 Chain B； UniProt 390–477 Chain C； UniProt 222–374 Chain D； UniProt 390–477	Not recorded	PHQ-GLU-VAL-ASP-DICHLOROMETHYLKETONE INHIBITOR × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.3；277 K；300mM ammonium phosphate, 27% (w/v) isopropanol, 100mM sodium phosphate, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.80 Å R-free 0.302
2	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain E； UniProt 222–374 Chain F； UniProt 390–477 Chain G； UniProt 222–374 Chain H； UniProt 390–477	Not recorded	PHQ-GLU-VAL-ASP-DICHLOROMETHYLKETONE INHIBITOR × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.3；277 K；300mM ammonium phosphate, 27% (w/v) isopropanol, 100mM sodium phosphate, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.80 Å R-free 0.302
3	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain I； UniProt 222–374 Chain J； UniProt 390–477 Chain K； UniProt 222–374 Chain L； UniProt 390–477	Not recorded	PHQ-GLU-VAL-ASP-DICHLOROMETHYLKETONE INHIBITOR × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.3；277 K；300mM ammonium phosphate, 27% (w/v) isopropanol, 100mM sodium phosphate, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.80 Å R-free 0.302

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1QDU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1F9E CASPASE-8 SPECIFICITY PROBED AT SUBSITE S4: CRYSTAL STRUCTURE OF THE CASPASE-8-Z-DEVD-CHO Deposited 2000-07-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 222–374（153 aa） Chain B 390–478（89 aa） Chain C 222–374（153 aa） Chain D 390–478（89 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；1-propanol, sodium citrate, MES , pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 4.0K, temperature 277K	Resolution 2.90 Å R-free 0.289
1F9E CASPASE-8 SPECIFICITY PROBED AT SUBSITE S4: CRYSTAL STRUCTURE OF THE CASPASE-8-Z-DEVD-CHO Deposited 2000-07-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 222–374（153 aa） Chain F 390–478（89 aa） Chain G 222–374（153 aa） Chain H 390–478（89 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；1-propanol, sodium citrate, MES , pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 4.0K, temperature 277K	Resolution 2.90 Å R-free 0.289
1F9E CASPASE-8 SPECIFICITY PROBED AT SUBSITE S4: CRYSTAL STRUCTURE OF THE CASPASE-8-Z-DEVD-CHO Deposited 2000-07-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain I 222–374（153 aa） Chain J 390–478（89 aa） Chain K 222–374（153 aa） Chain L 390–478（89 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；1-propanol, sodium citrate, MES , pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 4.0K, temperature 277K	Resolution 2.90 Å R-free 0.289
1I4E CRYSTAL STRUCTURE OF THE CASPASE-8/P35 COMPLEX Deposited 2001-02-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 222–479（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP	Resolution 3.00 Å R-free 0.296
1I4E CRYSTAL STRUCTURE OF THE CASPASE-8/P35 COMPLEX Deposited 2001-02-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 222–479（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；VAPOR DIFFUSION, HANGING DROP	Resolution 3.00 Å R-free 0.296
1QTN CRYSTAL STRUCTURE OF THE COMPLEX OF CASPASE-8 WITH THE TETRAPEPTIDE INHIBITOR ACE-IETD-ALDEHYDE Deposited 1999-06-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 223–374（152 aa） Fragment：P18 FRAGMENT Chain B 390–479（90 aa） Fragment：P11 FRAGMENT	Not recorded	DTD DITHIANE DIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；282 K；3 MICROLITERS PROTEIN (8.4 MG/ ML IN 20 MM TRISHCL, 100MM DTT AT PH 8.0) MIXED WITH 3 MICROLITERS WELL BUFFER (1.4 SODIUM CITRATE, 0.1M HEPES, AT PH 8.0) AT 4 DEG. C, VAPOR DIFFUSION, SITTING DROP, temperature 282K	Resolution 1.20 Å R-free 0.188
2C2Z Crystal structure of caspase-8 in complex with aza-peptide Michael acceptor inhibitor Deposited 2005-10-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 218–374（157 aa） Fragment：ALPHA SUB-UNIT, RESIDUES 218-374 Chain B 376–479（104 aa） Fragment：BETA-SUBUNIT, RESIDUES 376-479	Not recorded	DTD DITHIANE DIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；1.4M SODIUM CITRATE, 100MM HEPES PH 8.0	Resolution 1.95 Å R-free 0.187
2FUN alternative p35-caspase-8 complex Deposited 2006-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 222–479（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；VAPOR DIFFUSION, HANGING DROP, pH 7, temperature 295K	Resolution 3.00 Å R-free 0.260
2FUN alternative p35-caspase-8 complex Deposited 2006-01-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 222–479（258 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295 K；VAPOR DIFFUSION, HANGING DROP, pH 7, temperature 295K	Resolution 3.00 Å R-free 0.260
2K7Z Solution Structure of the Catalytic Domain of Procaspase-8 Deposited 2008-08-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 217–479（263 aa） Fragment：UNP residues 213-479	Mutation：C360A	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 8；305 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.8 mM [U-99% 13C; U-99% 15N] procaspase8, 10 mM DTT, 100 mM sodium chloride, 20 mM [U-2H] TRIS, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.8 mM [U-100% 13C; U-100% 15N; 80% 2H] procaspase8, 10 mM DTT, 100 mM sodium chloride, 20 mM [U-2H] TRIS, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2Y1L Caspase-8 in Complex with DARPin-8.4 Deposited 2010-12-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: octameric	Chain A 217–374（158 aa） Fragment：P18 SUBUNIT, RESIDUES 218-374 Chain B 376–479（104 aa） Fragment：P10 SUBUNIT, RESIDUES 376-479 Chain C 217–374（158 aa） Fragment：P18 SUBUNIT, RESIDUES 218-374 Chain D 376–479（104 aa） Fragment：P10 SUBUNIT, RESIDUES 376-479	Not recorded	SO4 SULFATE ION × 3 EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.8；100 MM CITRIC ACID PH 4.9 (RT), 200 MM LI2SO4, 22.5% PEG 4K.	Resolution 1.80 Å R-free 0.218
3H11 Zymogen caspase-8:c-FLIPL protease domain complex Deposited 2009-04-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 217–479（263 aa）	Mutation：D359A, D369A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10.5；293 K；0.9 M sodium dihydrogen phosphate, 0.8 M dipotassium hydrogen phosphate, 0.1 M N-cyclohexyl-3-aminopropanesulfonic acid (CAPS), 0.2 M lithium sulfate, pH 10.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.250
3KJN Caspase 8 bound to a covalent inhibitor Deposited 2009-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 211–374（164 aa） Fragment：residues 211-374 Chain B 385–479（95 aa） Fragment：residues 385-479	Not recorded	DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 B93 (3S)-3-({[(5S)-2-{2-[(1H-benzimidazol-5-ylcarbonyl)amino]ethyl}-7-(cyclohexylmethyl)-1,3-dioxo-2,3,5,8-tetrahydro-1H-[1,2,4]triazolo[1,2-a]pyridazin-5-yl]carbonyl}amino)-4-oxopentanoic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；277 K；2 microliters of 100 mM inhibitor stock in DMSO was added to 100 microliters of 8.4 mg/mL protein in 20 mM Tris, 100 mM DTT, pH 8.0. Protein solution was mixed with an equal volume of well solution (1.0-1.1 M Citrate, 50 mM HEPES or PIPES pH 6.5, 25 mM DTT), VAPOR DIFFUSION, temperature 277K	Resolution 1.80 Å R-free 0.202
3KJQ Caspase 8 with covalent inhibitor Deposited 2009-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 211–374（164 aa） Chain B 385–479（95 aa）	Not recorded	B94 (3S)-3-({[(5S,8R)-2-(3-carboxypropyl)-8-(2-{[(4-chlorophenyl)acetyl]amino}ethyl)-1,3-dioxo-2,3,5,8-tetrahydro-1H-[1,2,4]triazolo[1,2-a]pyridazin-5-yl]carbonyl}amino)-4-oxopentanoic acid × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.8；277 K；2 microliters of 100 mM inhibitor stock in DMSO was added to 100 microliters of 8.4 mg/mL protein in 20 mM Tris, 100 mM DTT, pH 8.0. Protein solution was mixed with an equal volume of well solution (1.0-1.1 M Citrate, 50 mM HEPES or PIPES pH 6.5, 25 mM DTT), VAPOR DIFFUSION, temperature 277K	Resolution 1.80 Å R-free 0.207
4JJ7 Caspase-3 specific unnatural amino acid-based peptides Deposited 2013-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 217–479（263 aa）	Not recorded	DTD DITHIANE DIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；1 M Sodium citrate, 0.1M HEPES pH 7.4, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.18 Å R-free 0.157
4PRZ Caspase-8 specific unnatural amino acid peptides Deposited 2014-03-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 217–479（263 aa） Fragment：UNP RESIDUES 217-479	Not recorded	DTD DITHIANE DIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；295 K；1.0 M sodium citrate, 0.1 M HEPES, pH 7.4, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.12 Å R-free 0.218
4PS1 Caspase-8 specific unnatural amino acid peptides Deposited 2014-03-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 217–479（263 aa） Fragment：UNP RESIDUES 217-479	Not recorded	DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；0.1 M Sodium citrate, pH 5.5, 36% PEG600, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.73 Å R-free 0.185
4PS1 Caspase-8 specific unnatural amino acid peptides Deposited 2014-03-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 217–479（263 aa） Fragment：UNP RESIDUES 217-479	Not recorded	DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；0.1 M Sodium citrate, pH 5.5, 36% PEG600, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.73 Å R-free 0.185
4PS1 Caspase-8 specific unnatural amino acid peptides Deposited 2014-03-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 217–479（263 aa） Fragment：UNP RESIDUES 217-479	Not recorded	DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；0.1 M Sodium citrate, pH 5.5, 36% PEG600, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.73 Å R-free 0.185
4PS1 Caspase-8 specific unnatural amino acid peptides Deposited 2014-03-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 217–479（263 aa） Fragment：UNP RESIDUES 217-479	Not recorded	DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；295 K；0.1 M Sodium citrate, pH 5.5, 36% PEG600, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.73 Å R-free 0.185
4ZBW Crystal structure of death effector domain of Caspase8 in Homo Sapiens Deposited 2015-04-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 61–247（187 aa） Chain B 61–247（187 aa）	Mutation：F122A, I128D Mutation：F122A, I128D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.5；293 K；0.2M sodium chloride, 25% PEG3350	Resolution 2.20 Å R-free 0.251
5H31 Structural basis for dimerization of the death effector domains of Caspase-8 Deposited 2016-10-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–188（188 aa） Fragment：UNP residues 1-188 Chain B 1–188（188 aa） Fragment：UNP residues 1-188	Mutation：F122A Mutation：F122A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.5；293 K；100 mM sodium chloride, 100 mM Tris, 21% PEG3350, 10 mM Sarcosine,	Resolution 3.17 Å R-free 0.268
5H31 Structural basis for dimerization of the death effector domains of Caspase-8 Deposited 2016-10-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–188（188 aa） Fragment：UNP residues 1-188 Chain D 1–188（188 aa） Fragment：UNP residues 1-188	Mutation：F122A Mutation：F122A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.5；293 K；100 mM sodium chloride, 100 mM Tris, 21% PEG3350, 10 mM Sarcosine,	Resolution 3.17 Å R-free 0.268
5H33 Structural basis for dimerization of the death effector domains of Caspase-8 Deposited 2016-10-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–188（188 aa） Chain B 1–188（188 aa）	Mutation：F122A Mutation：F122A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.5；293 K；50mM sodium chloride, 100mM Tris pH 8.5, 22.5% PEG3350	Resolution 3.60 Å R-free 0.313
5JQE Crystal structure of caspase8 tDED Deposited 2016-05-04	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–186（186 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8；293 K；0.1M MMT buffer, pH 8.0, 25% PEG 1500	Resolution 3.16 Å R-free 0.274
5L08 Cryo-EM structure of Casp-8 tDED filament Deposited 2016-07-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 9 PDB declaration: nonameric	Chain A 60–243（184 aa） Chain B 60–243（184 aa） Chain C 60–243（184 aa） Chain D 60–243（184 aa） Chain E 60–243（184 aa） Chain F 60–243（184 aa） Chain G 60–243（184 aa） Chain H 60–243（184 aa） Chain I 60–243（184 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å
6AGW Pro-domain of Caspase-8 Deposited 2018-08-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–180（180 aa） Fragment：UNP residues 1-180	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；(NH4)2SO4, Cacodylate, NaCl	Resolution 2.09 Å R-free 0.269
6PX9 Crystal structure of procaspase-8 in complex with covalent small molecule inhibitor 63-R Deposited 2019-07-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 276–538（263 aa） Fragment：UNP residues 276-538 Chain B 276–538（263 aa） Fragment：UNP residues 276-538	Mutation：D374A, D384A, C409S, C433S Mutation：D374A, D384A, C409S, C433S	63R N-{(3R)-1-[4-(morpholin-4-yl)benzene-1-carbonyl]piperidin-3-yl}-N-phenylacetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1 M imidazole, pH 8.0, 1.0 M sodium citrate	Resolution 2.88 Å R-free 0.366
6PX9 Crystal structure of procaspase-8 in complex with covalent small molecule inhibitor 63-R Deposited 2019-07-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 276–538（263 aa） Fragment：UNP residues 276-538 Chain D 276–538（263 aa） Fragment：UNP residues 276-538	Mutation：D374A, D384A, C409S, C433S Mutation：D374A, D384A, C409S, C433S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1 M imidazole, pH 8.0, 1.0 M sodium citrate	Resolution 2.88 Å R-free 0.366
6PX9 Crystal structure of procaspase-8 in complex with covalent small molecule inhibitor 63-R Deposited 2019-07-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 276–538（263 aa） Fragment：UNP residues 276-538 Chain F 276–538（263 aa） Fragment：UNP residues 276-538	Mutation：D374A, D384A, C409S, C433S Mutation：D374A, D384A, C409S, C433S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1 M imidazole, pH 8.0, 1.0 M sodium citrate	Resolution 2.88 Å R-free 0.366
6X8H Caspase-8 in complex with AOMK inhibitor, Ac-DW3-KE, forms tetrahedral adduct Deposited 2020-06-01	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 276–443（168 aa） Fragment：p18 (UNP residues 276-443) Chain B 444–538（95 aa） Fragment：p10 (UNP residues 444-538)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.1；295 K；1:1 protein : 0.10 M HEPES, 1.0 M sodium citrate	Resolution 1.48 Å R-free 0.167
7LVM CASP8 isoform B DED domain Deposited 2021-02-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–188（187 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；294 K；100mM Hepes pH 7.5, 20% Ethylene Glycol, 18% PEG 3350, 200mM Sodium Chloride	Resolution 1.47 Å R-free 0.233
8YBX Structure of the FADD/Caspase-8/cFLIP death effector domain assembly Deposited 2024-02-16	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–479（479 aa） Chain B 1–479（479 aa） Chain C 1–479（479 aa）	Mutation：F122G/L123G, C360A, D374A, D384A Mutation：F122G/L123G, C360A, D374A, D384A Mutation：F122G/L123G, C360A, D374A, D384A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.68 Å
8YD7 Structure of FADD/Caspase-8/cFLIP death effector domain assembly Deposited 2024-02-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–185（185 aa） Chain B 1–185（185 aa） Chain C 1–185（185 aa） Chain D 1–185（185 aa） Chain E 1–185（185 aa）	Mutation：F122G,L123G Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：F122G,L123G Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：F122G,L123G Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：F122G,L123G Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：F122G,L123G Non-standard monomer：Yes (specific site not provided by mmCIF)	SE SELENIUM ATOM × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；HEPES, TBG, PEG8000, TCEP, sodium chloride	Resolution 3.32 Å R-free 0.231
8YD8 Structure of FADD/Caspase-8/cFLIP death effector domain assembly Deposited 2024-02-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–185（185 aa） Chain B 1–185（185 aa） Chain C 1–185（185 aa） Chain D 1–185（185 aa） Chain E 1–185（185 aa）	Mutation：F122G, L123G Mutation：F122G, L123G Mutation：F122G, L123G Mutation：F122G, L123G Mutation：F122G, L123G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；HEPES, PEG 8000, TBG, TCEP, sodium chloride	Resolution 3.11 Å R-free 0.241
8YM4 Structure of Caspase-8/cFLIP death effector domain assembly Deposited 2024-03-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–185（185 aa） Chain B 1–185（185 aa） Chain C 1–185（185 aa） Chain D 1–185（185 aa）	Mutation：F122G, L123G Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：F122G, L123G Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：F122G, L123G Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：F122G, L123G Non-standard monomer：Yes (specific site not provided by mmCIF)	SE SELENIUM ATOM × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M MES pH 6.5, 0.08 M sodium chloride, 0.2 M Potassium Thiocyanate, 10 % PEG 4000, 0.01 M TCEP	Resolution 2.34 Å R-free 0.253
8YM5 Structure of Caspase-8/cFLIP death effector domain assembly Deposited 2024-03-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–185（185 aa） Chain B 1–185（185 aa） Chain C 1–185（185 aa） Chain D 1–185（185 aa）	Mutation：F122G, L123G Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：F122G, L123G Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：F122G, L123G Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：F122G, L123G Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M MES pH 6.5, 0.08 M sodium chloride, 0.2 M Potassium Thiocyanate, 10 % PEG 4000, 0.01 M TCEP	Resolution 2.09 Å R-free 0.231
8YM6 Structure of Caspase-8/cFLIP death effector domain assembly Deposited 2024-03-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric	Chain A 1–185（185 aa） Chain B 1–185（185 aa） Chain C 1–185（185 aa） Chain D 1–185（185 aa）	Mutation：F122G, L123G Mutation：F122G, L123G Mutation：F122G, L123G Mutation：F122G, L123G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M HEPES pH 7.5, 0.2 M Lithium chloride, 20 % PEG 400, 0.1 M TBG pH 9.0	Resolution 3.30 Å R-free 0.264
8YNI Structure of the FADD/Caspase-8/cFLIP death effector domain assembly Deposited 2024-03-11	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: 11-meric	Chain A 1–479（479 aa） Chain B 1–479（479 aa） Chain C 1–479（479 aa）	Mutation：F122G, L123G, C360A, D374A, D384A Mutation：F122G, L123G, C360A, D374A, D384A Mutation：F122G, L123G, C360A, D374A, D384A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.66 Å
8YNK Structure of the Caspase-8/cFLIP death effector domain assembly Deposited 2024-03-11	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–479（479 aa） Chain B 1–479（479 aa） Chain C 1–479（479 aa）	Mutation：F122G, L123G, C360A, D374A, D384A Mutation：F122G, L123G, C360A, D374A, D384A Mutation：F122G, L123G, C360A, D374A, D384A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.62 Å
8YNL Structure of the Caspase-8/cFLIP death effector domain assembly Deposited 2024-03-11	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–479（479 aa） Chain B 1–479（479 aa） Chain C 1–479（479 aa）	Mutation：F122G, L123G, C360A, D374A, D384A Mutation：F122G, L123G, C360A, D374A, D384A Mutation：F122G, L123G, C360A, D374A, D384A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.55 Å
8YNM Structure of the Caspase-8/cFLIP death effector domain assembly Deposited 2024-03-11	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 1–479（479 aa） Chain B 1–479（479 aa） Chain C 1–479（479 aa）	Mutation：F122G, L123G, C360A, D374A, D384A Mutation：F122G, L123G, C360A, D374A, D384A Mutation：F122G, L123G, C360A, D374A, D384A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.49 Å
8YNN Structure of the Caspase-8/cFLIP death effector domain assembly Deposited 2024-03-11	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–479（479 aa） Chain B 1–479（479 aa） Chain C 1–479（479 aa）	Mutation：F122G, L123G, C360A, D374A, D384A Mutation：F122G, L123G, C360A, D374A, D384A Mutation：F122G, L123G, C360A, D374A, D384A	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.97 Å

33 other PDB entries and 43 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ICE8_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–153； UniProt 222–374 Author chain C； PDBConstruct 1–153； UniProt 222–374 Author chain E； PDBConstruct 1–153； UniProt 222–374 Author chain G； PDBConstruct 1–153； UniProt 222–374 Author chain I； PDBConstruct 1–153； UniProt 222–374 Author chain K； PDBConstruct 1–153； UniProt 222–374 Author chain B； PDBConstruct 1–88； UniProt 390–477 Author chain D； PDBConstruct 1–88； UniProt 390–477 Author chain F； PDBConstruct 1–88； UniProt 390–477 Author chain H； PDBConstruct 1–88； UniProt 390–477 Author chain J； PDBConstruct 1–88； UniProt 390–477 Author chain L； PDBConstruct 1–88； UniProt 390–477

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1qdu
Deposition date deposition_date	1999-07-10
Structure title title	CRYSTAL STRUCTURE OF THE COMPLEX OF CASPASE-8 WITH THE TRIPEPTIDE KETONE INHIBITOR ZEVD-DCBMK
Keywords keywords	APOPTOSIS, CYSTEINE PROTEASE, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	42.86 Å
Radius of gyration Rg (electron density) rg_electron	42.41 Å
Forward intensity I(0) i0	824793000.00
Molecular weight molecular_weight	156600.0 kDa
Excluded volume excluded_volume	150800 Å³
Envelope volume envelope_volume	273540 Å³
Hydration-shell volume shell_volume	52620 Å³
Envelope diameter envelope_diameter	139.2 Å
Shell Rg shell_rg	49.08 Å
Envelope Rg envelope_rg	41.36 Å
Shape Rg shape_rg	42.41 Å
Total Rg total_rg	42.62 Å
Total atoms total_atoms	11802
Residues n_residues	1368
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

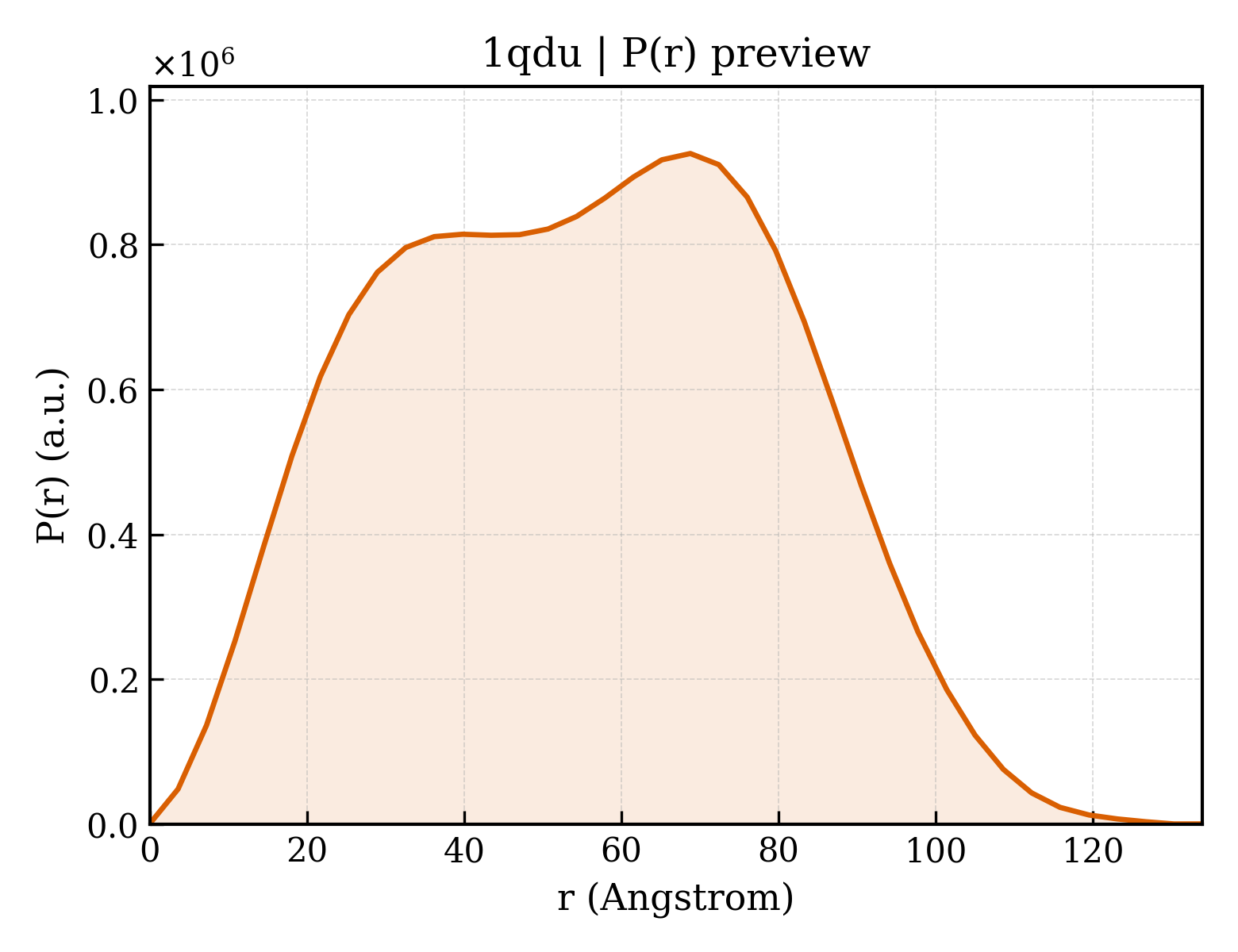

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	133.9 Å
Rg (real space) rg_real	42.74 Å
Rg uncertainty (real space) rg_real_error	1.06 Å
I(0) (real space) i0_real	8.2480e+08
I(0) uncertainty (real space) i0_real_error	1.4800e+07
Rg (reciprocal space) rg_reciprocal	42.86 Å
I(0) (reciprocal space) i0_reciprocal	824900000.0000
Solution quality estimate total_estimate	0.8910
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	68.8 Å
Skewness Skewness skewness	0.043
Kurtosis Kurtosis kurtosis	-0.812
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	37980000.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.903; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.874

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CASPASE-8 ALPHA-CHAIN
Molecular weight formula_weight	17417.0 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G,I,K
Atom count atom_count	11948

LDKVYQMKSKPRGYCLIINNHNFAKAREKVPKLHSIRDRNGTHLDAGALTTTFEELHFEIKPHHDCTVEQIYEILKIYQLMDHSNMDCFICCILSHGDKGIIYGTDGQEAPIYELTSQFTGLKCPSLAGKPKVFFIQACQGDNYQKGIPVETD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	CASPASE-8 BETA-CHAIN
Molecular weight formula_weight	10186.6 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H,J,L

TRYIPDEADFLLGMATVNNCVSYRNPAEGTWYIQSLCQSLRERCPRGDDILTILTEVNYEVSNKDDKKNMGKQMPQPTFTLRKKLVFP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	PHQ-GLU-VAL-ASP-DICHLOROMETHYLKETONE INHIBITOR
Molecular weight formula_weight	546.4 kDa
Source method src_method	syn
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	T,U,V,W,X,Y

XEVDX

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	146

▼

7. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1qdu.1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.17 — Caspase-like
Superfamily Superfamily superfamily	c.17.1 — Caspase-like
Family Family family	c.17.1.1 — Caspase catalytic domain

Domain ID domain_id	d1qdu.2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.17 — Caspase-like
Superfamily Superfamily superfamily	c.17.1 — Caspase-like
Family Family family	c.17.1.1 — Caspase catalytic domain

Domain ID domain_id	d1qdu.3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.17 — Caspase-like
Superfamily Superfamily superfamily	c.17.1 — Caspase-like
Family Family family	c.17.1.1 — Caspase catalytic domain

Domain ID domain_id	d1qdu.4
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.17 — Caspase-like
Superfamily Superfamily superfamily	c.17.1 — Caspase-like
Family Family family	c.17.1.1 — Caspase catalytic domain

Domain ID domain_id	d1qdu.5
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.17 — Caspase-like
Superfamily Superfamily superfamily	c.17.1 — Caspase-like
Family Family family	c.17.1.1 — Caspase catalytic domain

Domain ID domain_id	d1qdu.6
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.17 — Caspase-like
Superfamily Superfamily superfamily	c.17.1 — Caspase-like
Family Family family	c.17.1.1 — Caspase catalytic domain

CATH v4.4 (12 domains)

Domain ID domain_id	1qduA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	1qduB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1470 — Caspase-like

Domain ID domain_id	1qduC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	1qduD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1470 — Caspase-like

Domain ID domain_id	1qduE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	1qduF00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1470 — Caspase-like

Domain ID domain_id	1qduG00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	1qduH00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1470 — Caspase-like

Domain ID domain_id	1qduI00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	1qduJ00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1470 — Caspase-like

Domain ID domain_id	1qduK00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	1qduL00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1470 — Caspase-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	93.900 Å
Unit-cell length b length_b	206.530 Å
Unit-cell length c length_c	102.050 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	102.30 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	100.000 Å
R factor r_factor	—
R_work r_work	0.2300
R_free r_free	0.3020

fit	/app/data/saxs_computation/qd/1qdu/1qdu.fit
pddf	/app/data/pr_computation/qd/1qdu/1qdu.pr.out
profile	/app/data/saxs_computation/qd/1qdu/1qdu.dat

CRYSTAL STRUCTURE OF THE COMPLEX OF CASPASE-8 WITH THE TRIPEPTIDE KETONE INHIBITOR ZEVD-DCBMK

1. Protein Identity and Related Structures Protein Identity & Related Structures

CASPASE-8 ALPHA-CHAIN

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 water

7. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

CATH v4.4 (12 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
