SAXSdb — 2fun

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Early 35 kDa protein

Autographa californica nucleopolyhedrovirus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	caspase-8 × 1 （Q14790） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	caspase-8 × 1 （Q14790） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VP35_NPVAC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–298； UniProt 2–299 Author chain C； PDBConstruct 1–298； UniProt 2–299

caspase-8

Homo sapiens

UniProt Q14790

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Early 35 kDa protein × 1 （P08160） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Early 35 kDa protein × 1 （P08160） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CASP8_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–258； UniProt 222–479 Author chain D； PDBConstruct 1–256； UniProt 222–479

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2fun
Deposition date deposition_date	2006-01-27
Structure title title	alternative p35-caspase-8 complex
Keywords keywords	APOPTOSIS/HYDROLASE, APOPTOSIS-HYDROLASE complex; APOPTOSIS/HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2fun__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2fun__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

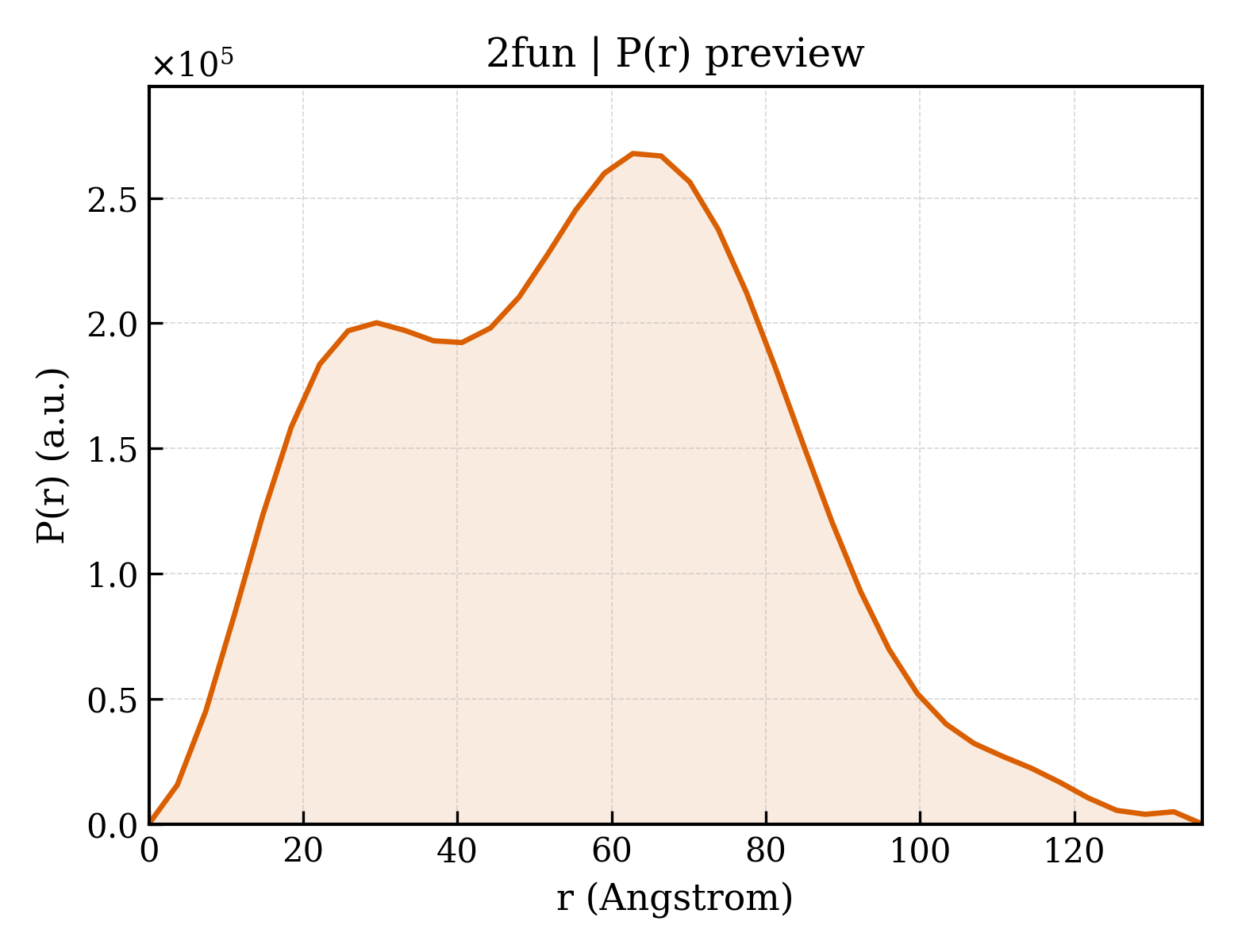

2fun__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.43 Å
Rg (electron density)	30.55 Å
Total Rg	31.12 Å
Atom count	4351
Residues	536
Excluded volume	77688 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2fun__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2fun__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Early 35 kDa protein
Molecular weight formula_weight	34742.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	8713

CVIFPVEIDVSQTIIRDCQVDKQTRELVYINKIMNTQLTKPVLMMFNISGPIRSVTRKNNNLRDRIKSKVDEQFDQLERDYSDQMDGFHDSIKYFKDEHYSVSCQNGSVLKSKFAKILKSHDYTDKKSIEAYEKYCLPKLVDERNDYYVAVCVLKPGFENGSNQVLSFEYNPIGNKVIVPFAHEINDTGLYEYDVVAYVDSVQFDGEQFEEFVQSLILPSSFKNSEKVLYYNEASKNKSMIYKALEFTTESSWGKSEKYNWKIFCNGFIYDKKSKVLYVKLHNVTSALNKNVILNTIK

Source Source

Source organism organism	Autographa californica nucleopolyhedrovirus
NCBI taxonomy ID ncbi_taxonomy_id	46015
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	caspase-8
Molecular weight formula_weight	29522.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

LDKVYQMKSKPRGYCLIINNHNFAKAREKVPKLHSIRDRNGTHLDAGALTTTFEELHFEIKPHHDCTVEQIYEILKIYQLMDHSNMDCFICCILSHGDKGIIYGTDGQEAPIYELTSQFTGLKCPSLAGKPKVFFIQACQGDNYQKGIPVETDSEEQPYLEMDLSSPQTRYIPDEADFLLGMATVNNCVSYRNPAEGTWYIQSLCQSLRERCPRGDDILTILTEVNYEVSNKDDKKNMGKQMPQPTFTLRKKLVFPSD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	26

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2funa_
Class class	b — All beta proteins
Fold Fold fold	b.28 — Baculovirus p35 protein
Superfamily Superfamily superfamily	b.28.1 — Baculovirus p35 protein
Family Family family	b.28.1.1 — Baculovirus p35 protein

Domain ID domain_id	d2funb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.17 — Caspase-like
Superfamily Superfamily superfamily	c.17.1 — Caspase-like
Family Family family	c.17.1.1 — Caspase catalytic domain

Domain ID domain_id	d2func_
Class class	b — All beta proteins
Fold Fold fold	b.28 — Baculovirus p35 protein
Superfamily Superfamily superfamily	b.28.1 — Baculovirus p35 protein
Family Family family	b.28.1.1 — Baculovirus p35 protein

Domain ID domain_id	d2fund_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.17 — Caspase-like
Superfamily Superfamily superfamily	c.17.1 — Caspase-like
Family Family family	c.17.1.1 — Caspase catalytic domain

CATH v4.4 (4 domains)

Domain ID domain_id	2funA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	250 — Baculovirus p35
Homologous superfamily homologous superfamily	10 — Baculovirus p35

Domain ID domain_id	2funB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	2funC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	250 — Baculovirus p35
Homologous superfamily homologous superfamily	10 — Baculovirus p35

Domain ID domain_id	2funD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

▶

Unit-cell length a length_a	99.970 Å
Unit-cell length b length_b	117.340 Å
Unit-cell length c length_c	346.450 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	24.000 Å
R factor r_factor	0.2599
R_work r_work	0.2292
R_free r_free	0.2599
