1e43

Native structure of chimaeric amylase from B. amyloliquefaciens and B. licheniformis at 1.7A

Method: X-RAY DIFFRACTION D_max: 86.4 Å Quality: GOOD

SAXS Profile

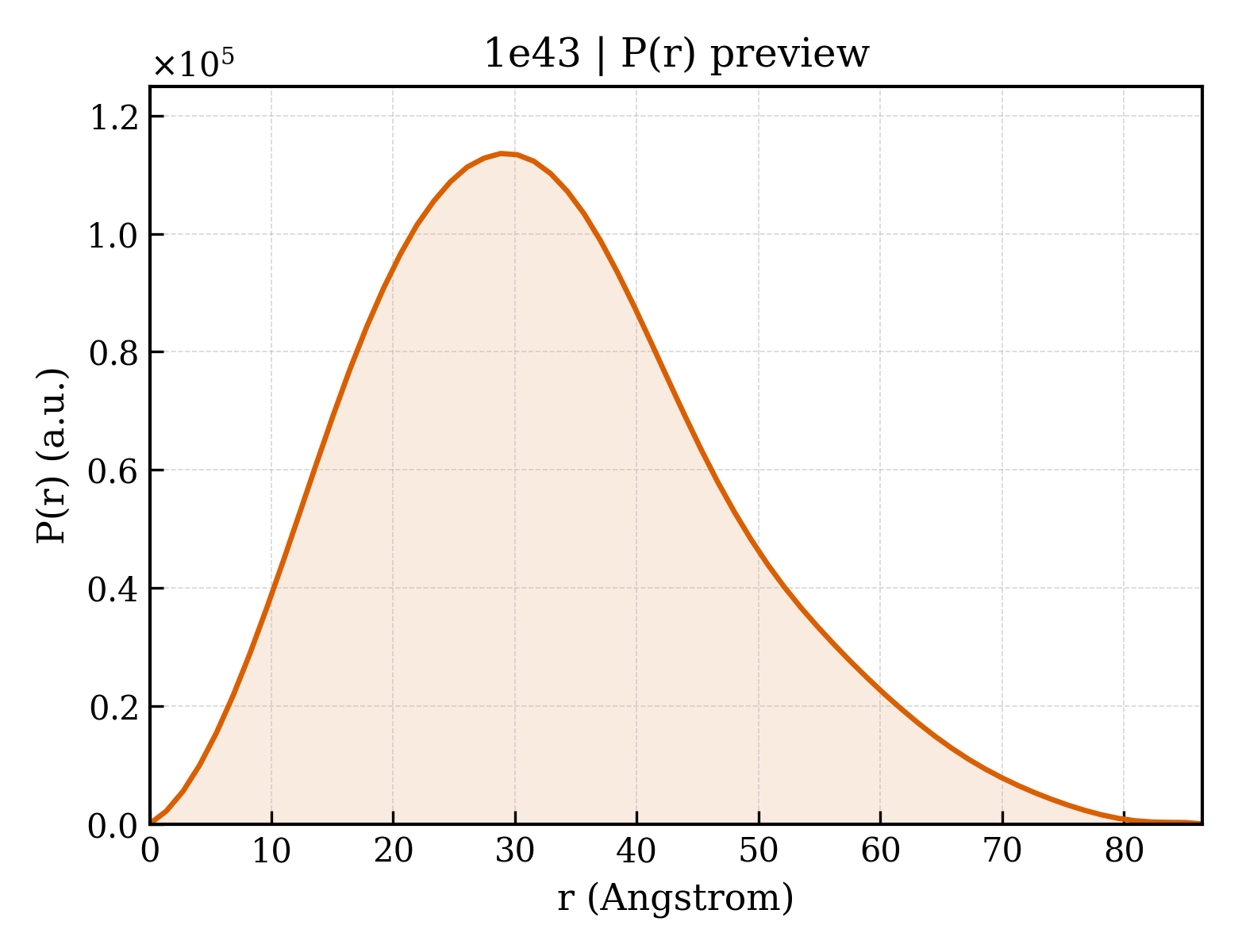

P(r) Distribution

▼

1. Structure Basics

entry_id	1e43
deposition_date	2000-06-27
title	Native structure of chimaeric amylase from B. amyloliquefaciens and B. licheniformis at 1.7A
keywords	HYDROLASE, AMYLASE, FAMILY 13; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	25.17 Å
rg_electron	24.07 Å
i0	51747200.00
molecular_weight	55142.0 kDa
excluded_volume	68324 Å³
envelope_volume	76053 Å³
shell_volume	26950 Å³
envelope_diameter	87.1 Å
shell_rg	30.99 Å
envelope_rg	24.30 Å
shape_rg	24.05 Å
total_rg	24.84 Å
total_atoms	3905
n_residues	483
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	86.4 Å
rg_real	25.21 Å
rg_real_error	0.78 Å
i0_real	5.1750e+07
i0_real_error	7.9270e+05
rg_reciprocal	25.20 Å
i0_reciprocal	51750000.0000
total_estimate	0.8647
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	28.8 Å
skewness	0.459
kurtosis	-0.125
angular_range	— – 0.3150 Å⁻¹
current_alpha	0.0000
highest_alpha	8064000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.776; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.933; Smooth: 0.977

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	ALPHA-AMYLASE
formula_weight	55038.4 kDa
ec_number	3.2.1.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4877

VNGTLMQYFEWYTPNDGQHWKRLQNDAEHLSDIGITAVWIPPAYKGLSQSDNGYGPYDLYDLGEFQQKGTVRTKYGTKSELQDAIGSLHSRNVQVYGDVVLNHKAGADATEDVTAVEVNPANRNQETSEEYQIKAWTDFRFPGRGNTYSDFKWHWYHFDGADWDESRKISRIFKFRGEGKAWDWEVSSENGNYDYLMYADVDYDHPDVVAETKKWGIWYANELSLDGFRIDAAKHIKFSFLRDWVQAVRQATGKEMFTVAEYWQNNAGKLENYLNKTSFNQSVFDVPLHFNLQAASSQGGGYDMRKLLNGTVVSKHPLKSVTFVDNHDTQPGQSLESTVQTWFKPLAYAFILTRESGYPQVFYGDMYGTKGDSQREIPALKHKIEPILKARKQYAYGAQHDYFDHHDIVGWTREGDSSVANSGLAALITDGPGGAKRMYVGRQNAGETWHDITGNRSEPVVINSEGWGEFHVNGGSVSIYVQR

Source

organism	BACILLUS AMYLOLIQUEFACIENS
ncbi_taxonomy_id	1390
host_organism	BACILLUS AMYLOLIQUEFACIENS

Entity 2 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	4

Entity 3 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	933

▶

6. Citations (1)

▶

length_a	52.200 Å
length_b	76.100 Å
length_c	236.500 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	1.700 Å
resolution_low	20.000 Å
r_factor	—
r_work	0.1330
r_free	0.1850
