SAXSdb — 1e4i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-GLUCOSIDASE

BACILLUS POLYMYXA

UniProt P22073

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 2–448	Mutation：YES	G2F 2-deoxy-2-fluoro-alpha-D-glucopyranose × 8 NFG 2,4-dinitrophenyl 2-deoxy-2-fluoro-beta-D-glucopyranoside × 8	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；DROP: 10 MICROL PROTEIN (8 MG/ML)+ 5 MICROL PP(1M, PH=7)+5 MICROL INH (5MM) RESERVOIR: 1.3M PP, pH 7.00	Resolution 2.00 Å R-free 0.250

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1E4I	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BGA BETA-GLUCOSIDASE A FROM BACILLUS POLYMYXA Deposited 1997-04-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 2–448（447 aa） Chain B 2–448（447 aa） Chain C 2–448（447 aa） Chain D 2–448（447 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.3；PROTEIN WAS CRYSTALLIZED FROM 1.3 M NA/K PHOSPHATE, PH 8.3, 5 MICRO-L PROTEIN, 14 MG/ML, 5 MICRO-L RESERVOIR	Resolution 2.40 Å R-free 0.270
1BGG GLUCOSIDASE A FROM BACILLUS POLYMYXA COMPLEXED WITH GLUCONATE Deposited 1997-05-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–448（448 aa） Chain B 1–448（448 aa） Chain C 1–448（448 aa） Chain D 1–448（448 aa）	Not recorded	GCO D-gluconic acid × 6	X-RAY DIFFRACTION X-ray crystallization conditions co-crystallization；pH 8.3；COMPLEX WAS OBTAINED BY CO-CRYSTALLIZATION, 5 MICRO-L BGLA (14 MG/ML) / 5 MICRO-L 10MM LIGAND / 5 MICRO-L PP 1.3M, PH 8.3, co-crystallization	Resolution 2.30 Å R-free 0.250
1TR1 CRYSTAL STRUCTURE OF E96K MUTATED BETA-GLUCOSIDASE A FROM BACILLUS POLYMYXA, AN ENZYME WITH INCREASED THERMORESISTANCE Deposited 1998-03-12	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 2–448（447 aa） Chain B 2–448（447 aa） Chain C 2–448（447 aa） Chain D 2–448（447 aa）	Mutation：E96K Mutation：E96K Mutation：E96K Mutation：E96K	GOL GLYCEROL × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.3；pH 8.3	Resolution 2.20 Å R-free 0.282
1UYQ mutated b-glucosidase A from Paenibacillus polymyxa showing increased stability Deposited 2004-03-02	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 2–448（447 aa）	Mutation：YES	G2F 2-deoxy-2-fluoro-alpha-D-glucopyranose × 8 NFG 2,4-dinitrophenyl 2-deoxy-2-fluoro-beta-D-glucopyranoside × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；DROP: 1 MICROL PROTEIN (8 MG/ML)+ 1 MICROL PB(3M, PH=7)+1 MICROL INH (35MM) RESERVOIR: 1.3M PB, pH 7.00	Resolution 2.20 Å R-free 0.227
6QWI Structure of beta-glucosidase A from Paenibacillus polymyxa complexed with multivalent inhibitors. Deposited 2019-03-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–448（448 aa） Chain B 1–448（448 aa）	Not recorded	JJW (2~{S},3~{S},4~{R})-2-[[4-[4-(2-ethoxyethoxy)phenyl]-1,2,3-triazol-1-yl]methyl]pyrrolidine-3,4-diol × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；13% (v/v) PEG 3350, 0.2M sodium nitrate, 3% 2-Methyl-2,4-pentanediol (MPD) and 0.1 M BisTris propane, pH 7.5 and 0.56 mM 6-Cyclohexylhexyl beta-D-maltoside. Cryoprotectant mother liquor supplemented with 25% glycerol.	Resolution 2.85 Å R-free 0.231
6R4K Structure of beta-glucosidase A from Paenibacillus polymyxa complexed with a monovalent inhibitor Deposited 2019-03-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–448（448 aa） Chain B 1–448（448 aa）	Not recorded	JSK (2~{S},3~{S},4~{R})-2-[[4-[4-[2-[2-(2-azanylidenehydrazinyl)ethoxy]ethoxy]phenyl]-1,2,3-triazol-1-yl]methyl]pyrrolidine-3,4-diol × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；18% (v/v) PEG 3350, 0.2M sodium nitrate, 3% 2-Methyl-2,4-pentanediol (MPD), 0.1 M Bis-Tris propane, pH 7.5, and 5% n-Dodecyl beta-D-maltoside. Cryoprotectant mother liquor supplemented with 25% glycerol.	Resolution 2.13 Å R-free 0.241

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BGLA_PAEPO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–447； UniProt 2–448

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e4i
Deposition date deposition_date	2000-07-06
Structure title title	2-deoxy-2-fluoro-beta-D-glucosyl/enzyme intermediate complex of the beta-glucosidase from Bacillus polymyxa
Keywords keywords	HYDROLASE, FAMILY 1 GLYCOSYL HYDROLASE, COVALENT ENZYME-GLYCOSIDE INTERMEDIATE, ALPHA/BETA BARREL; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.21 Å
Radius of gyration Rg (electron density) rg_electron	20.83 Å
Forward intensity I(0) i0	45673200.00
Molecular weight molecular_weight	52010.0 kDa
Excluded volume excluded_volume	64581 Å³
Envelope volume envelope_volume	71191 Å³
Hydration-shell volume shell_volume	27188 Å³
Envelope diameter envelope_diameter	70.9 Å
Shell Rg shell_rg	28.75 Å
Envelope Rg envelope_rg	21.14 Å
Shape Rg shape_rg	20.81 Å
Total Rg total_rg	21.75 Å
Total atoms total_atoms	3679
Residues n_residues	447
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	72.7 Å
Rg (real space) rg_real	22.01 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	4.5670e+07
I(0) uncertainty (real space) i0_real_error	4.9310e+05
Rg (reciprocal space) rg_reciprocal	22.05 Å
I(0) (reciprocal space) i0_reciprocal	45670000.0000
Solution quality estimate total_estimate	0.8019
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.2 Å
Skewness Skewness skewness	0.079
Kurtosis Kurtosis kurtosis	-0.495
Angular range angular_range	— – 0.3600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11570000.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.808; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	BETA-GLUCOSIDASE
Molecular weight formula_weight	51566.6 kDa
EC 编号 ec_number	3.2.1.21
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3913

TIFQFPQDFMWGTATAAYQIEGAYQEDGRGLSIWDTFAHTPGKVFNGDNGNVACDSYHRYEEDIRLMKELGIRTYRFSVSWPRIFPNGDGEVNQKGLDYYHRVVDLLNDNGIEPFCTLYHWDLPQALQDAGGWGNRRTIQAFVQFAETMFREFHGKIQHWLTFNEPWCIAFLSNMLGVHAPGLTNLQTAIDVGHHLLVAHGLSVRRFRELGTSGQIGIAPNVSWAVPYSTSEEDKAACARTISLHSDWFLQPIYQGSYPQFLVDWFAEQGATVPIQDGDMDIIGEPIDMIGINYYSMSVNRFNPEAGFLQSEEINMGLPVTDIGWPVESRGLYEVLHYLQKYGNIDIYITENGACINDEVVNGKVQDDRRISYMQQHLVQVHRTIHDGLHVKGYMAWSLLDNFEWAEGYNMRFGMIHVDFRTQVRTPKQSYYWYRNVVSNNWLETRR

来源 Source

来源生物 organism	BACILLUS POLYMYXA
NCBI Class编号 ncbi_taxonomy_id	1406
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	2-deoxy-2-fluoro-alpha-D-glucopyranose
Molecular weight formula_weight	182.1 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	2,4-dinitrophenyl 2-deoxy-2-fluoro-beta-D-glucopyranoside
Molecular weight formula_weight	348.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	234

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1e4ia_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.4 — Family 1 of glycosyl hydrolase

CATH v4.4 (1 domains)

Domain ID domain_id	1e4iA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

▶

8. Citations (2)

▶

Unit-cell length a length_a	136.230 Å
Unit-cell length b length_b	136.230 Å
Unit-cell length c length_c	173.260 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4 2 2
Space-group number int_tables_number	97
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2100
R_work r_work	0.2100
R_free r_free	0.2500

fit	/app/data/saxs_computation/e4/1e4i/1e4i.fit
pddf	/app/data/pr_computation/e4/1e4i/1e4i.pr.out
profile	/app/data/saxs_computation/e4/1e4i/1e4i.dat

2-deoxy-2-fluoro-beta-D-glucosyl/enzyme intermediate complex of the beta-glucosidase from Bacillus polymyxa

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-GLUCOSIDASE

State in the Current Structure

Other States of the Same Protein in the Database

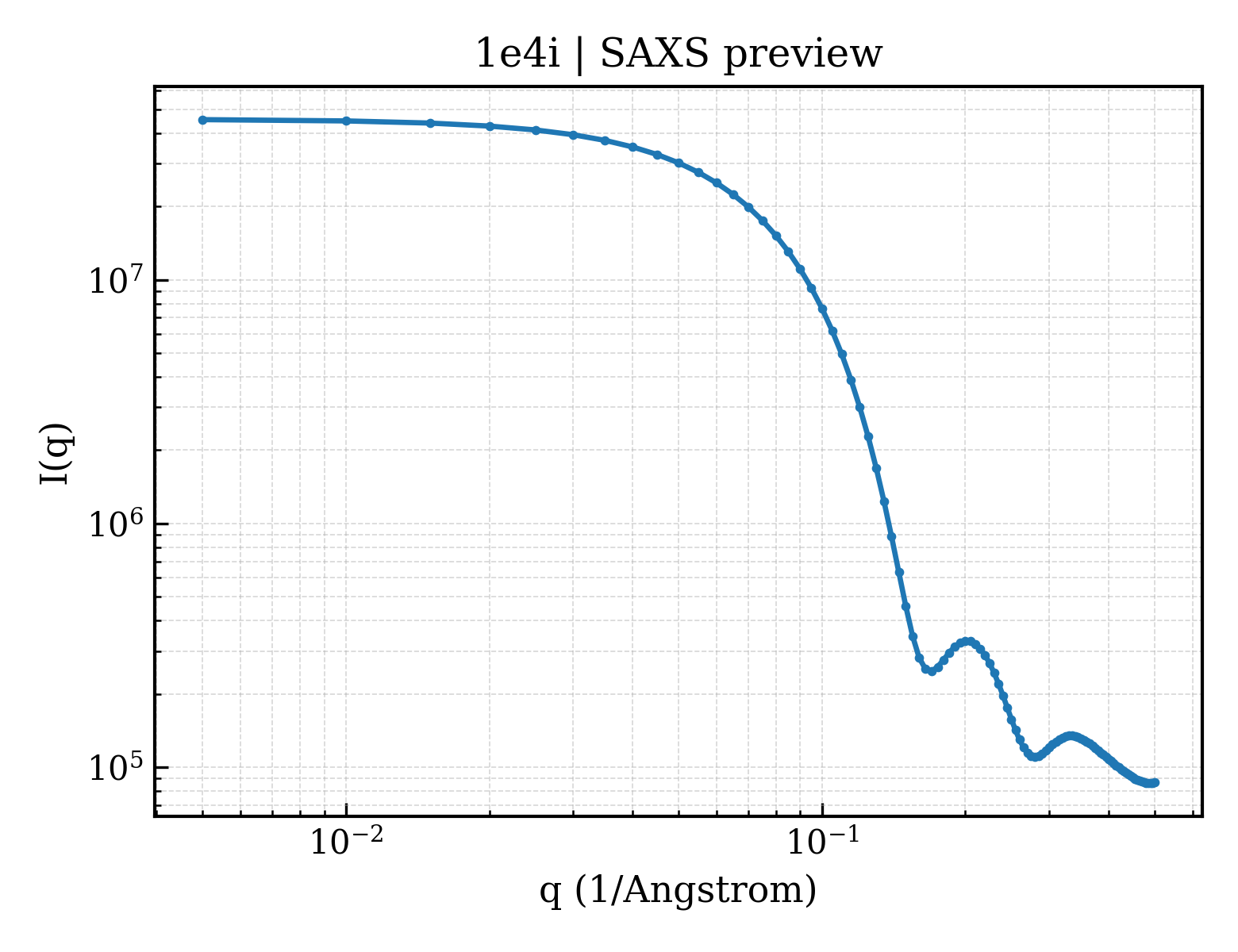

SAXS scattering curve SAXS Profile
