SAXSdb — 1bga

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-GLUCOSIDASE A

Paenibacillus polymyxa

UniProt P22073

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 2–448 Chain B； UniProt 2–448 Chain C； UniProt 2–448 Chain D； UniProt 2–448	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.3；PROTEIN WAS CRYSTALLIZED FROM 1.3 M NA/K PHOSPHATE, PH 8.3, 5 MICRO-L PROTEIN, 14 MG/ML, 5 MICRO-L RESERVOIR	Resolution 2.40 Å R-free 0.270

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BGA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BGG GLUCOSIDASE A FROM BACILLUS POLYMYXA COMPLEXED WITH GLUCONATE Deposited 1997-05-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–448（448 aa） Chain B 1–448（448 aa） Chain C 1–448（448 aa） Chain D 1–448（448 aa）	Not recorded	GCO D-gluconic acid × 6	X-RAY DIFFRACTION X-ray crystallization conditions co-crystallization；pH 8.3；COMPLEX WAS OBTAINED BY CO-CRYSTALLIZATION, 5 MICRO-L BGLA (14 MG/ML) / 5 MICRO-L 10MM LIGAND / 5 MICRO-L PP 1.3M, PH 8.3, co-crystallization	Resolution 2.30 Å R-free 0.250
1E4I 2-deoxy-2-fluoro-beta-D-glucosyl/enzyme intermediate complex of the beta-glucosidase from Bacillus polymyxa Deposited 2000-07-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 2–448（447 aa）	Mutation：YES	G2F 2-deoxy-2-fluoro-alpha-D-glucopyranose × 8 NFG 2,4-dinitrophenyl 2-deoxy-2-fluoro-beta-D-glucopyranoside × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；DROP: 10 MICROL PROTEIN (8 MG/ML)+ 5 MICROL PP(1M, PH=7)+5 MICROL INH (5MM) RESERVOIR: 1.3M PP, pH 7.00	Resolution 2.00 Å R-free 0.250
1TR1 CRYSTAL STRUCTURE OF E96K MUTATED BETA-GLUCOSIDASE A FROM BACILLUS POLYMYXA, AN ENZYME WITH INCREASED THERMORESISTANCE Deposited 1998-03-12	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 2–448（447 aa） Chain B 2–448（447 aa） Chain C 2–448（447 aa） Chain D 2–448（447 aa）	Mutation：E96K Mutation：E96K Mutation：E96K Mutation：E96K	GOL GLYCEROL × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.3；pH 8.3	Resolution 2.20 Å R-free 0.282
1UYQ mutated b-glucosidase A from Paenibacillus polymyxa showing increased stability Deposited 2004-03-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 2–448（447 aa）	Mutation：YES	G2F 2-deoxy-2-fluoro-alpha-D-glucopyranose × 8 NFG 2,4-dinitrophenyl 2-deoxy-2-fluoro-beta-D-glucopyranoside × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；DROP: 1 MICROL PROTEIN (8 MG/ML)+ 1 MICROL PB(3M, PH=7)+1 MICROL INH (35MM) RESERVOIR: 1.3M PB, pH 7.00	Resolution 2.20 Å R-free 0.227
6QWI Structure of beta-glucosidase A from Paenibacillus polymyxa complexed with multivalent inhibitors. Deposited 2019-03-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–448（448 aa） Chain B 1–448（448 aa）	Not recorded	JJW (2~{S},3~{S},4~{R})-2-[[4-[4-(2-ethoxyethoxy)phenyl]-1,2,3-triazol-1-yl]methyl]pyrrolidine-3,4-diol × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；13% (v/v) PEG 3350, 0.2M sodium nitrate, 3% 2-Methyl-2,4-pentanediol (MPD) and 0.1 M BisTris propane, pH 7.5 and 0.56 mM 6-Cyclohexylhexyl beta-D-maltoside. Cryoprotectant mother liquor supplemented with 25% glycerol.	Resolution 2.85 Å R-free 0.231
6R4K Structure of beta-glucosidase A from Paenibacillus polymyxa complexed with a monovalent inhibitor Deposited 2019-03-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–448（448 aa） Chain B 1–448（448 aa）	Not recorded	JSK (2~{S},3~{S},4~{R})-2-[[4-[4-[2-[2-(2-azanylidenehydrazinyl)ethoxy]ethoxy]phenyl]-1,2,3-triazol-1-yl]methyl]pyrrolidine-3,4-diol × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；18% (v/v) PEG 3350, 0.2M sodium nitrate, 3% 2-Methyl-2,4-pentanediol (MPD), 0.1 M Bis-Tris propane, pH 7.5, and 5% n-Dodecyl beta-D-maltoside. Cryoprotectant mother liquor supplemented with 25% glycerol.	Resolution 2.13 Å R-free 0.241

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BGLA_PAEPO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–447； UniProt 2–448 Author chain B； PDBConstruct 1–447； UniProt 2–448 Author chain C； PDBConstruct 1–447； UniProt 2–448 Author chain D； PDBConstruct 1–447； UniProt 2–448

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bga
Deposition date deposition_date	1997-04-04
Structure title title	BETA-GLUCOSIDASE A FROM BACILLUS POLYMYXA
Keywords keywords	FAMILY 1 BETA-GLUCOSIDASE, GLYCOSYL HYDROLASE, GLYCOSIDASE; GLYCOSIDASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	42.96 Å
Radius of gyration Rg (electron density) rg_electron	42.63 Å
Forward intensity I(0) i0	635092000.00
Molecular weight molecular_weight	205980.0 kDa
Excluded volume excluded_volume	255910 Å³
Envelope volume envelope_volume	319000 Å³
Hydration-shell volume shell_volume	60619 Å³
Envelope diameter envelope_diameter	140.6 Å
Shell Rg shell_rg	49.44 Å
Envelope Rg envelope_rg	41.76 Å
Shape Rg shape_rg	42.64 Å
Total Rg total_rg	42.90 Å
Total atoms total_atoms	14576
Residues n_residues	1788
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

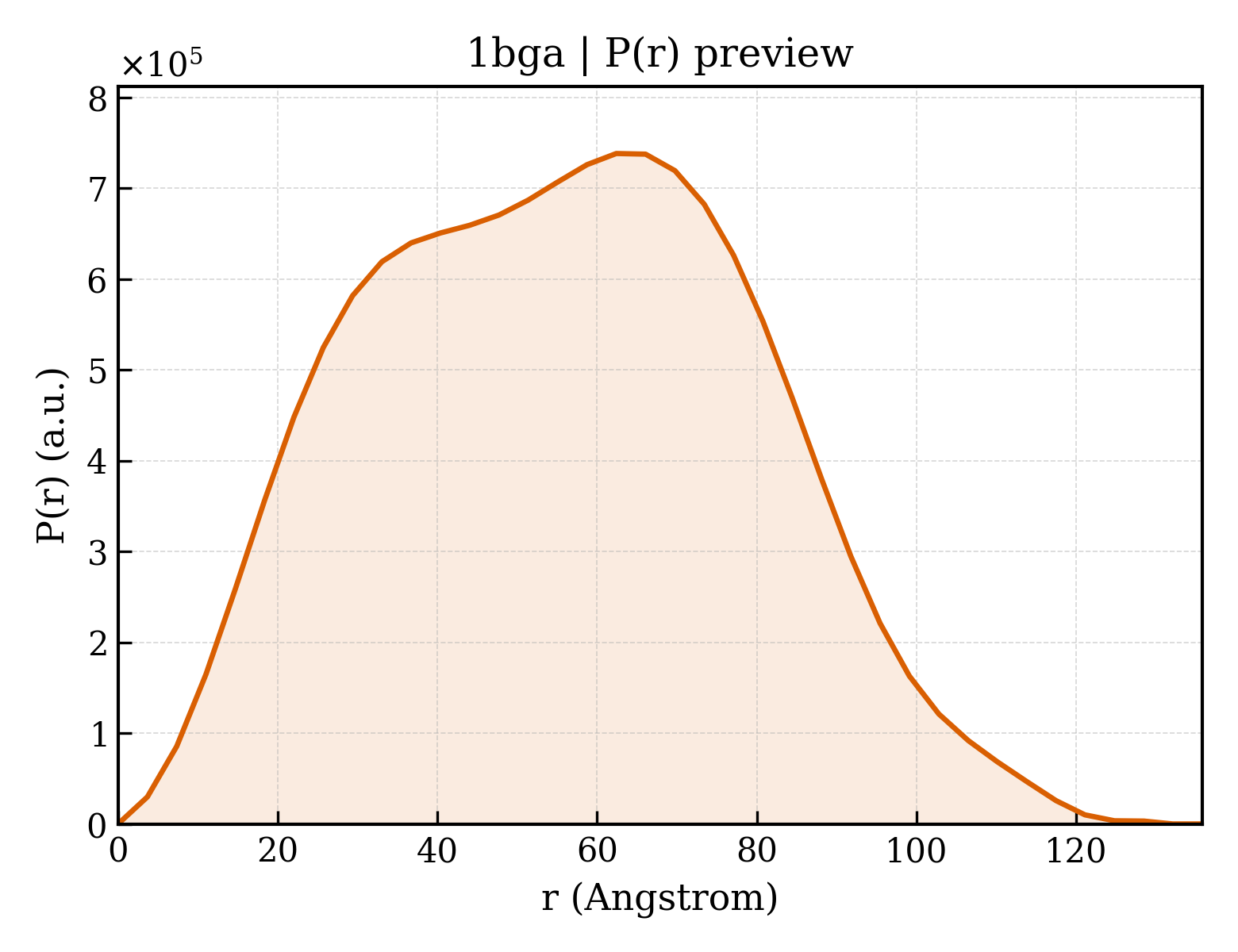

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	135.8 Å
Rg (real space) rg_real	42.83 Å
Rg uncertainty (real space) rg_real_error	1.15 Å
I(0) (real space) i0_real	6.3510e+08
I(0) uncertainty (real space) i0_real_error	1.0980e+07
Rg (reciprocal space) rg_reciprocal	42.96 Å
I(0) (reciprocal space) i0_reciprocal	635200000.0000
Solution quality estimate total_estimate	0.8860
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	62.4 Å
Skewness Skewness skewness	0.109
Kurtosis Kurtosis kurtosis	-0.654
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	232700000.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.791

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	BETA-GLUCOSIDASE A
Molecular weight formula_weight	51567.5 kDa
EC 编号 ec_number	3.2.1.21
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	16117

TIFQFPQDFMWGTATAAYQIEGAYQEDGRGLSIWDTFAHTPGKVFNGDNGNVACDSYHRYEEDIRLMKELGIRTYRFSVSWPRIFPNGDGEVNQEGLDYYHRVVDLLNDNGIEPFCTLYHWDLPQALQDAGGWGNRRTIQAFVQFAETMFREFHGKIQHWLTFNEPWCIAFLSNMLGVHAPGLTNLQTAIDVGHHLLVAHGLSVRRFRELGTSGQIGIAPNVSWAVPYSTSEEDKAACARTISLHSDWFLQPIYQGSYPQFLVDWFAEQGATVPIQDGDMDIIGEPIDMIGINYYSMSVNRFNPEAGFLQSEEINMGLPVTDIGWPVESRGLYEVLHYLQKYGNIDIYITENGACINDEVVNGKVQDDRRISYMQQHLVQVHRTIHDGLHVKGYMAWSLLDNFEWAEGYNMRFGMIHVDFRTQVRTPKESYYWYRNVVSNNWLETRR

来源 Source

来源生物 organism	Paenibacillus polymyxa
NCBI Class编号 ncbi_taxonomy_id	1406
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1541

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1bgaa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.4 — Family 1 of glycosyl hydrolase

Domain ID domain_id	d1bgab_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.4 — Family 1 of glycosyl hydrolase

Domain ID domain_id	d1bgac_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.4 — Family 1 of glycosyl hydrolase

Domain ID domain_id	d1bgad_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.4 — Family 1 of glycosyl hydrolase

CATH v4.4 (4 domains)

Domain ID domain_id	1bgaA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1bgaB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1bgaC00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1bgaD00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

▶

8. Citations (3)

▶

Unit-cell length a length_a	205.460 Å
Unit-cell length b length_b	205.460 Å
Unit-cell length c length_c	155.860 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2000
R_work r_work	0.2000
R_free r_free	0.2700

fit	/app/data/saxs_computation/bg/1bga/1bga.fit
pddf	/app/data/pr_computation/bg/1bga/1bga.pr.out
profile	/app/data/saxs_computation/bg/1bga/1bga.dat
