1e4v
Mutant G10V of adenylate kinase from E. coli, modified in the Gly-loop
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1e4v |
| deposition_date | 2000-07-12 |
| title | Mutant G10V of adenylate kinase from E. coli, modified in the Gly-loop |
| keywords | TRANSFERASE(PHOSPHOTRANSFERASE); TRANSFERASE(PHOSPHOTRANSFERASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.49 Å |
| rg_electron | 27.16 Å |
| i0 | 42876200.00 |
| molecular_weight | 49081.0 kDa |
| excluded_volume | 60771 ų |
| envelope_volume | 76008 ų |
| shell_volume | 24010 ų |
| envelope_diameter | 93.5 Å |
| shell_rg | 33.48 Å |
| envelope_rg | 26.85 Å |
| shape_rg | 27.17 Å |
| total_rg | 27.79 Å |
| total_atoms | 3432 |
| n_residues | 428 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

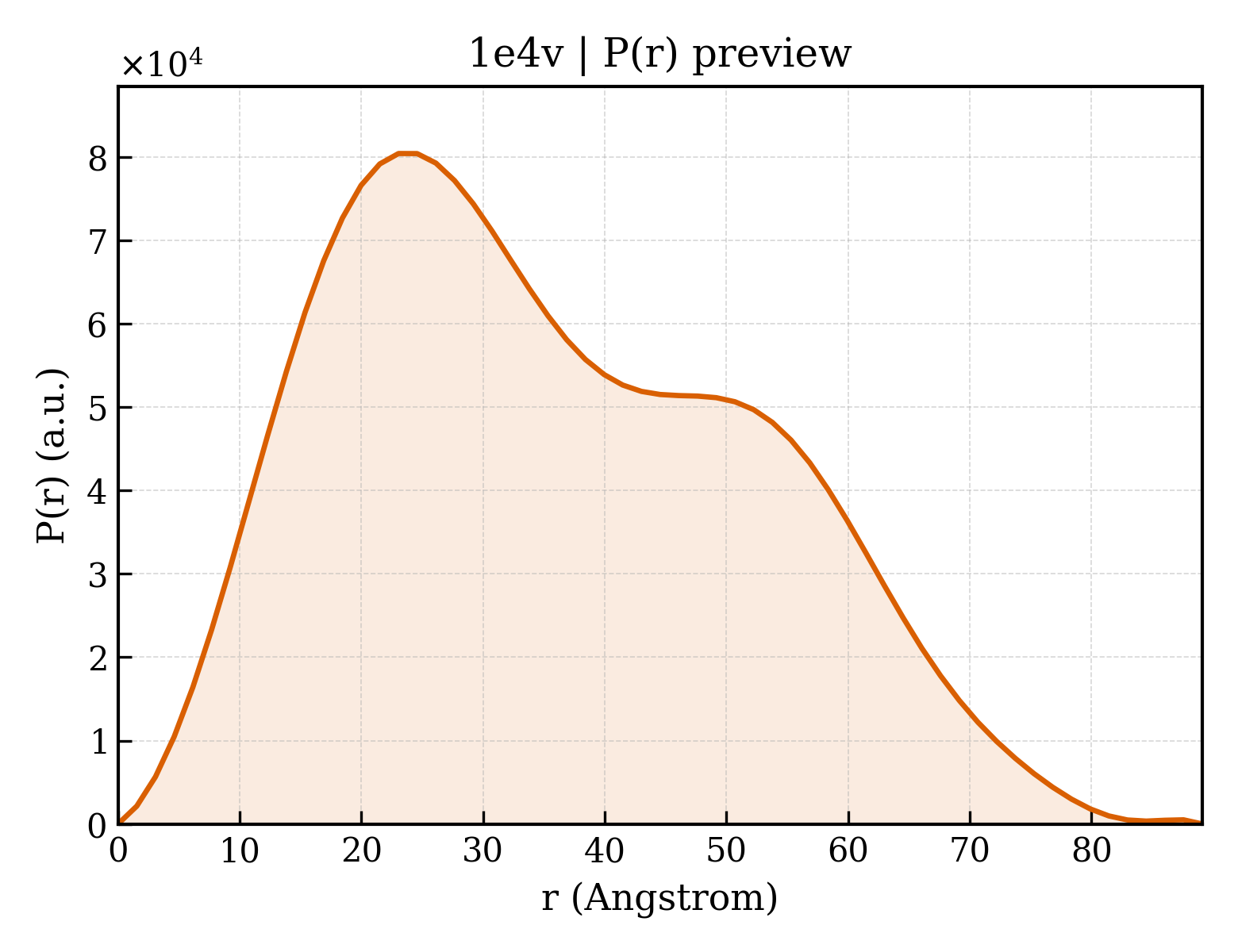

3. P(r) Analysis (GNOM)
| dmax | 89.1 Å |
| rg_real | 27.64 Å |
| rg_real_error | 0.64 Å |
| i0_real | 4.2880e+07 |
| i0_real_error | 6.2710e+05 |
| rg_reciprocal | 27.60 Å |
| i0_reciprocal | 42870000.0000 |
| total_estimate | 0.8588 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.1 Å |
| skewness | 0.349 |
| kurtosis | -0.728 |
| angular_range | — – 0.2900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10970000.0000 |
| n_real_points | 59 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.779; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.836; Smooth: 0.987 |
