1e4y
Mutant P9L of adenylate kinase from E. coli, modified in the Gly-loop
SAXS Profile

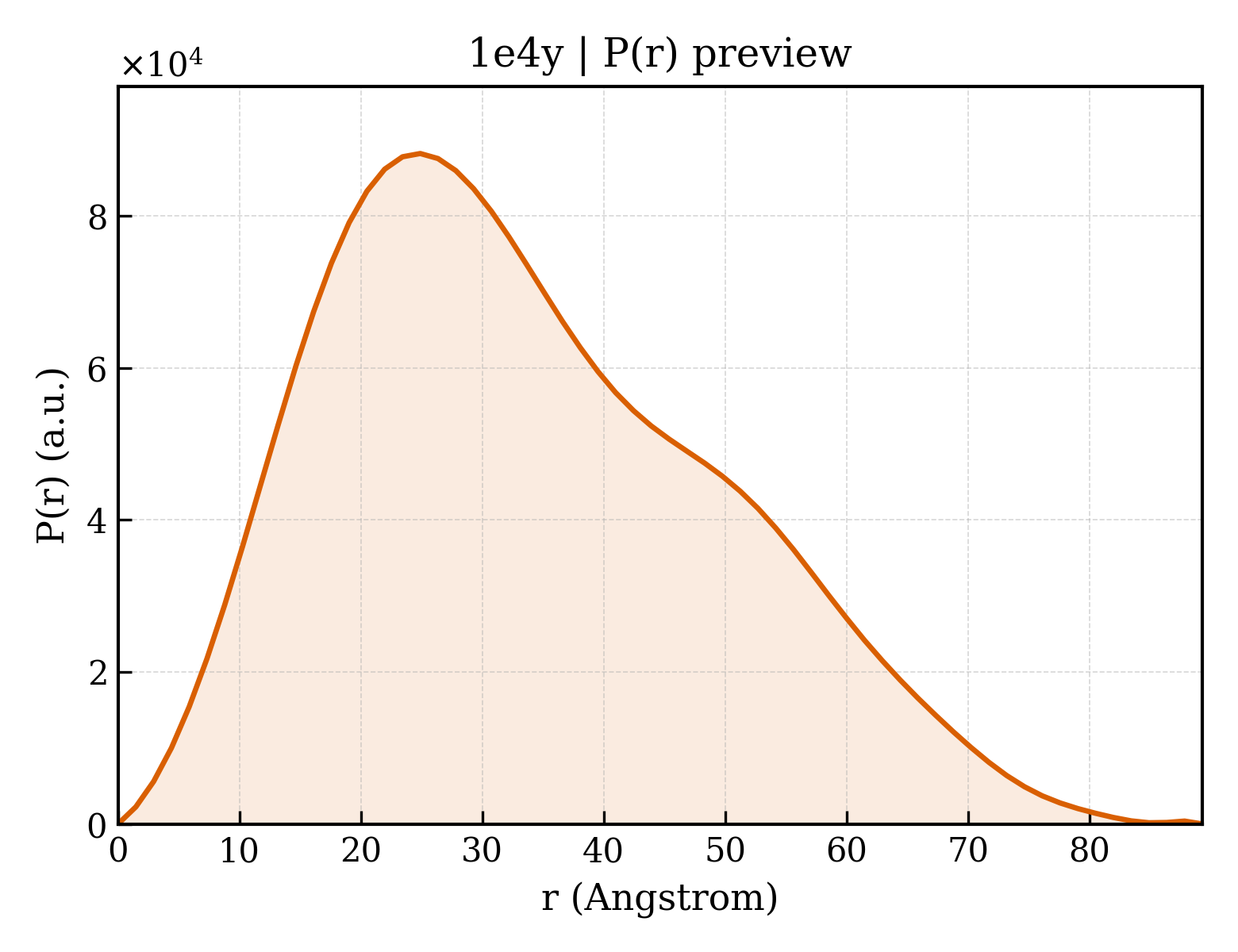

P(r) Distribution
1. Structure Basics
| entry_id | 1e4y |
| deposition_date | 2000-07-12 |
| title | Mutant P9L of adenylate kinase from E. coli, modified in the Gly-loop |
| keywords | TRANSFERASE(PHOSPHOTRANSFERASE); TRANSFERASE(PHOSPHOTRANSFERASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.18 Å |
| rg_electron | 25.86 Å |
| i0 | 43143100.00 |
| molecular_weight | 49027.0 kDa |
| excluded_volume | 60675 ų |
| envelope_volume | 73225 ų |
| shell_volume | 24720 ų |
| envelope_diameter | 92.0 Å |
| shell_rg | 31.86 Å |
| envelope_rg | 25.79 Å |
| shape_rg | 25.89 Å |
| total_rg | 26.40 Å |
| total_atoms | 3428 |
| n_residues | 428 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 89.3 Å |
| rg_real | 26.33 Å |
| rg_real_error | 0.72 Å |
| i0_real | 4.3140e+07 |
| i0_real_error | 6.2970e+05 |
| rg_reciprocal | 26.29 Å |
| i0_reciprocal | 43140000.0000 |
| total_estimate | 0.8463 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 24.9 Å |
| skewness | 0.463 |
| kurtosis | -0.443 |
| angular_range | — – 0.3050 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10460000.0000 |
| n_real_points | 62 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.743; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.813; Smooth: 0.956 |
