1e5b
Internal xylan binding domain from C. fimi Xyn10A, R262G mutant

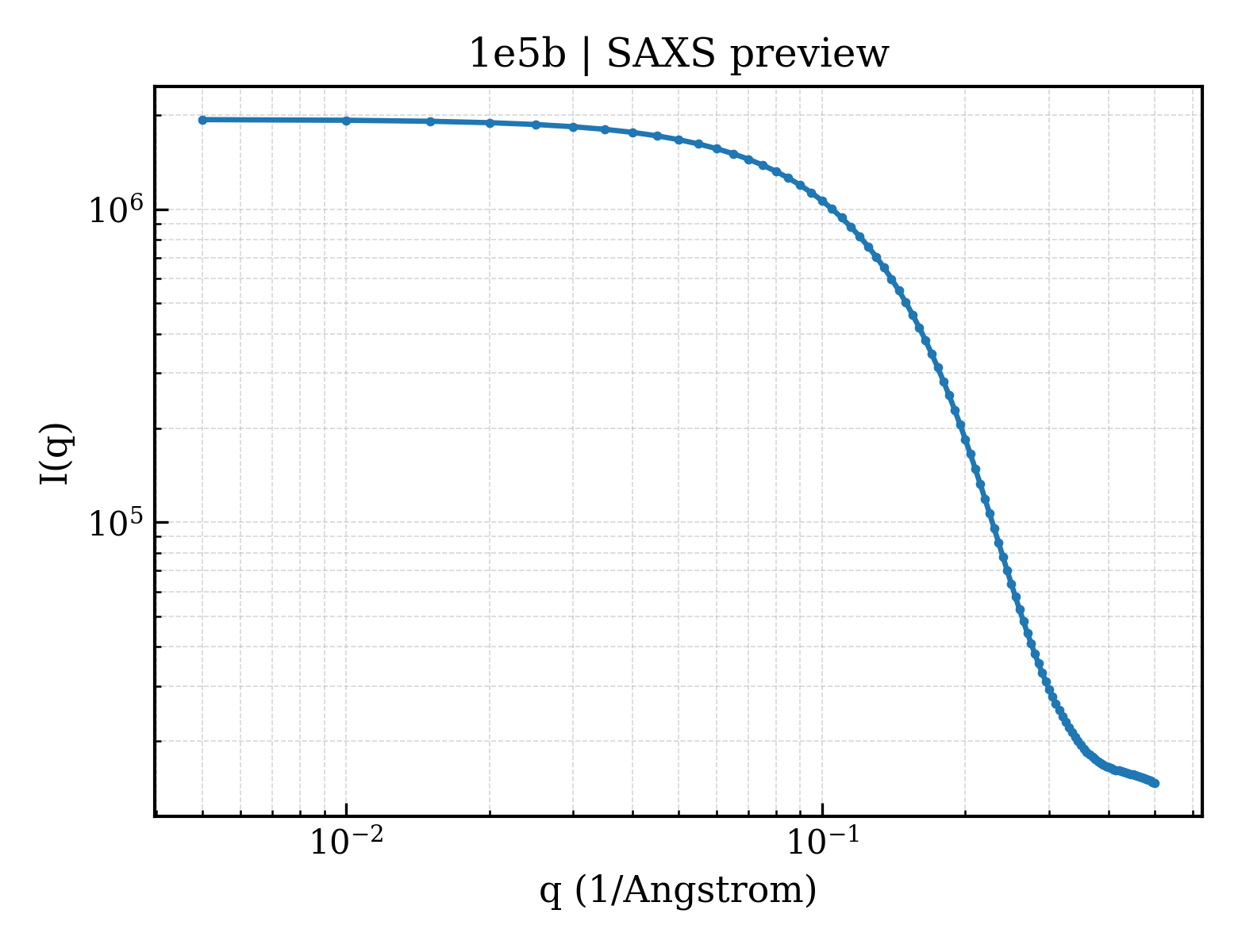

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1e5b |
| deposition_date | 2000-07-24 |
| title | Internal xylan binding domain from C. fimi Xyn10A, R262G mutant |
| keywords | HYDROLASE, XYLAN BINDING DOMAIN, XYLANASE, BETA-SHEET; HYDROLASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.37 Å |
| rg_electron | 11.93 Å |
| i0 | 1934080.00 |
| molecular_weight | 8684.0 kDa |
| excluded_volume | 10476 ų |
| envelope_volume | 11515 ų |
| shell_volume | 8582 ų |
| envelope_diameter | 45.0 Å |
| shell_rg | 17.14 Å |
| envelope_rg | 12.48 Å |
| shape_rg | 11.89 Å |
| total_rg | 13.19 Å |
| total_atoms | 1175 |
| n_residues | 87 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 45.4 Å |
| rg_real | 13.34 Å |
| rg_real_error | 0.30 Å |
| i0_real | 1.9340e+06 |
| i0_real_error | 1.9850e+04 |
| rg_reciprocal | 13.35 Å |
| i0_reciprocal | 1934000.0000 |
| total_estimate | 0.8010 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.5 Å |
| skewness | 0.308 |
| kurtosis | -0.264 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 392800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.811; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.000 |
