1e5c
Internal xylan binding domain from C. fimi Xyn10A, R262G mutant

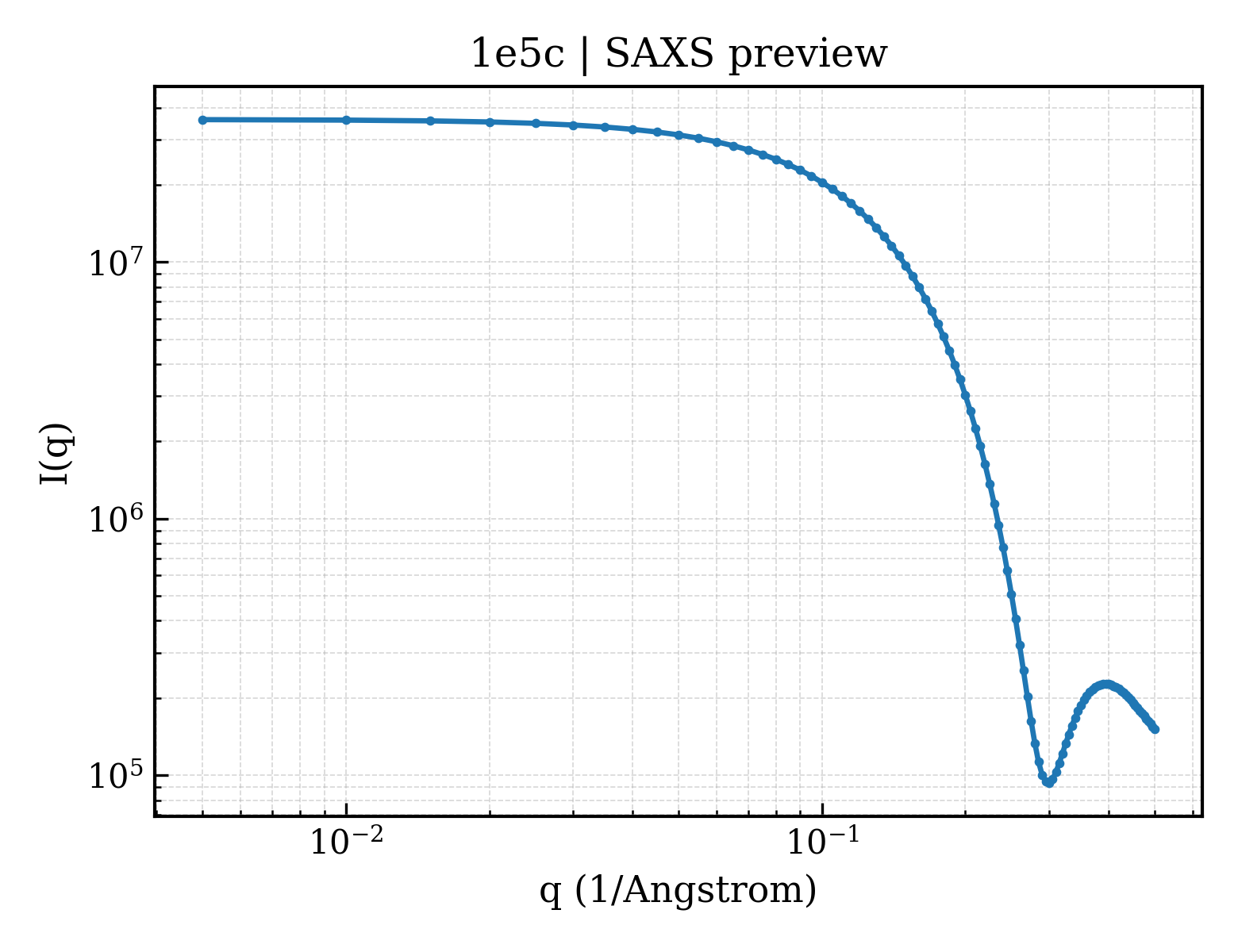

SAXS Profile

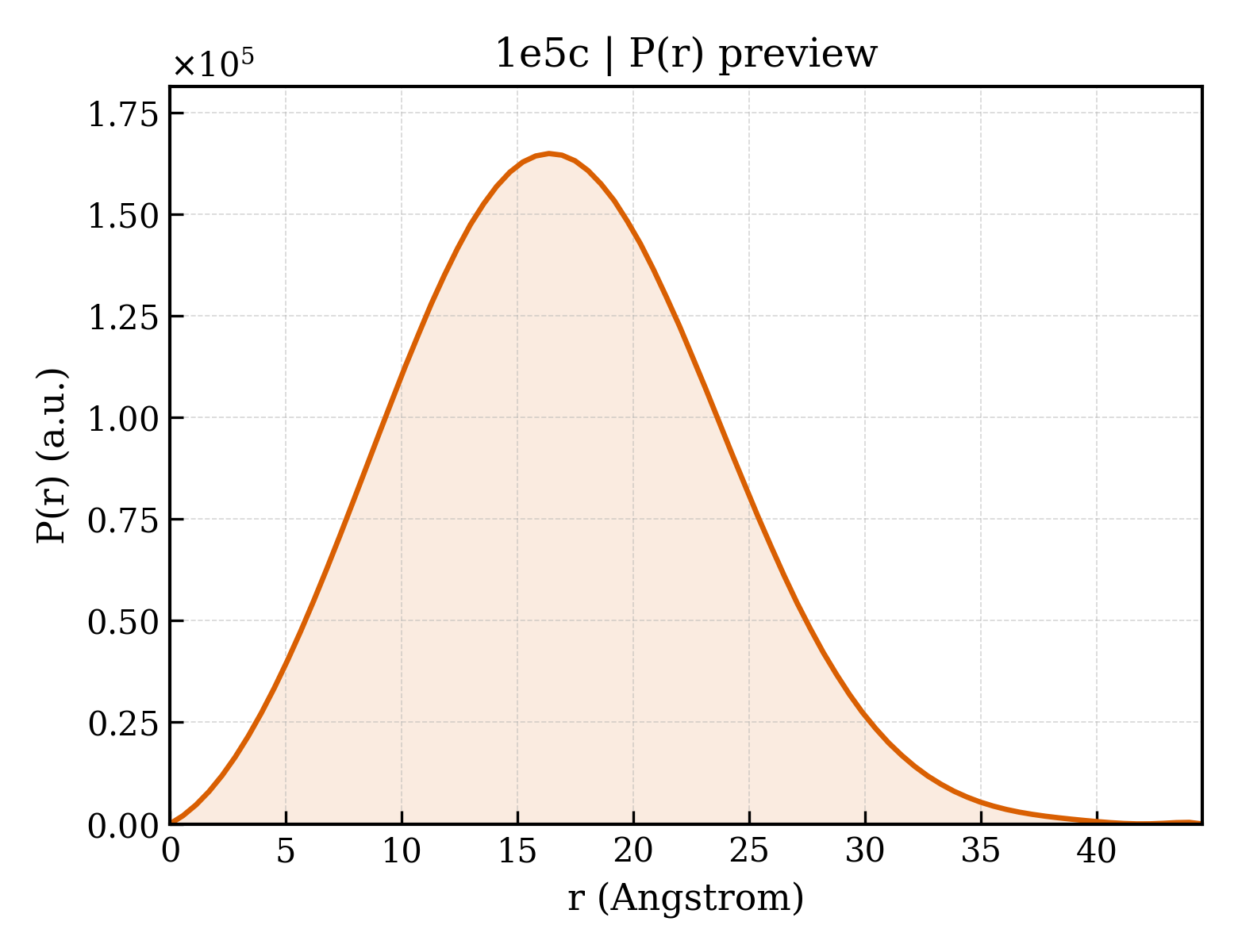

P(r) Distribution
1. Structure Basics
| entry_id | 1e5c |
| deposition_date | 2000-07-24 |
| title | Internal xylan binding domain from C. fimi Xyn10A, R262G mutant |
| keywords | HYDROLASE, XYLAN BINDING DOMAIN, XYLANASE, BETA-SHEET; HYDROLASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.93 Å |
| rg_electron | 11.86 Å |
| i0 | 35936700.00 |
| molecular_weight | 43422.0 kDa |
| excluded_volume | 52382 ų |
| envelope_volume | 23728 ų |
| shell_volume | 13908 ų |
| envelope_diameter | 45.8 Å |
| shell_rg | 20.40 Å |
| envelope_rg | 14.31 Å |
| shape_rg | 11.82 Å |
| total_rg | 12.68 Å |
| total_atoms | 5875 |
| n_residues | 435 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 44.6 Å |
| rg_real | 12.85 Å |
| rg_real_error | 0.26 Å |
| i0_real | 3.5940e+07 |
| i0_real_error | 3.7610e+05 |
| rg_reciprocal | 12.86 Å |
| i0_reciprocal | 35940000.0000 |
| total_estimate | 0.8520 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.4 Å |
| skewness | 0.215 |
| kurtosis | -0.224 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2124000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.694; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.990 |
