1e5u
NMR Representative Structure of Intimin-190 (Int190) from Enteropathogenic E. coli
SAXS Profile

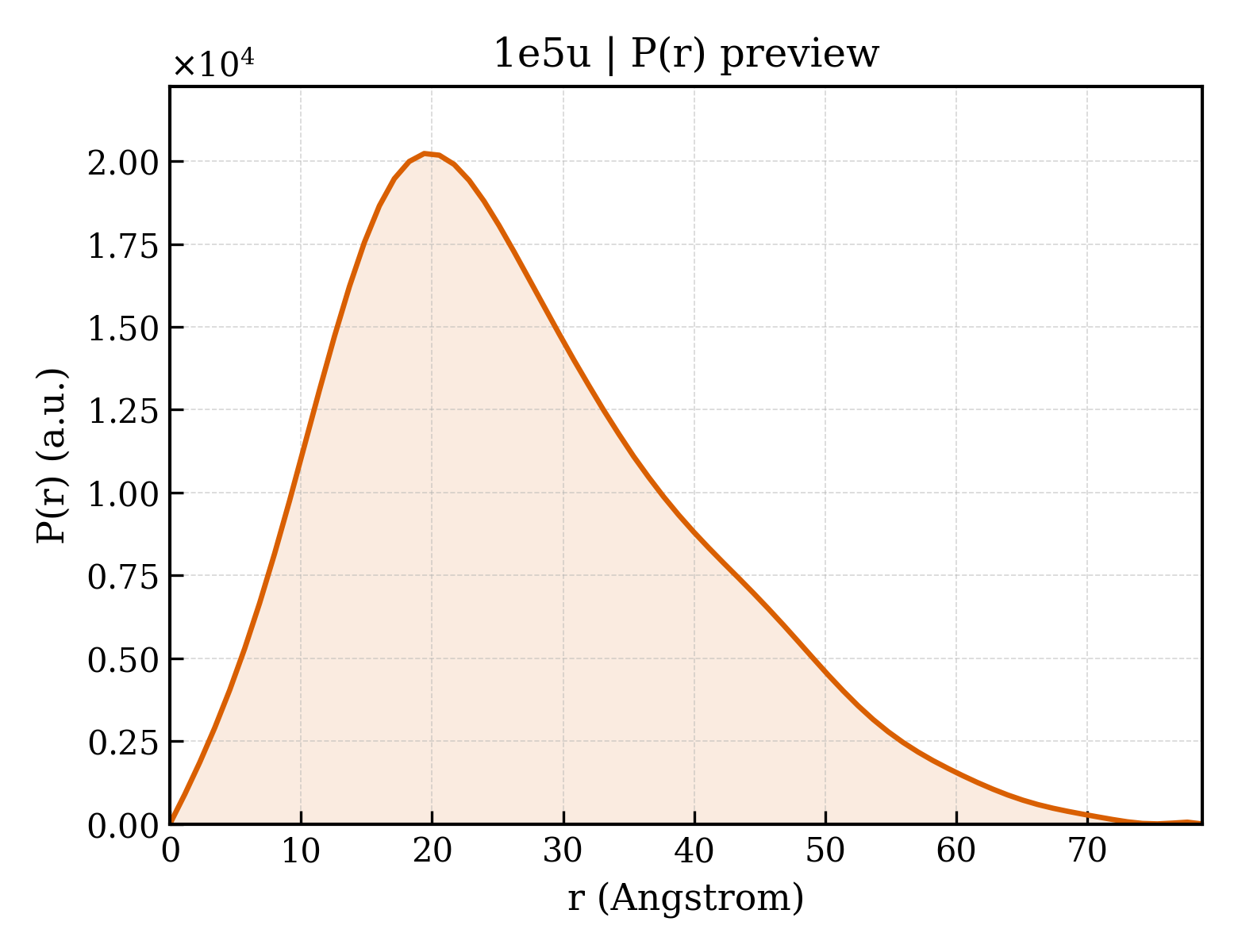

P(r) Distribution
1. Structure Basics
| entry_id | 1e5u |
| deposition_date | 2000-08-02 |
| title | NMR Representative Structure of Intimin-190 (Int190) from Enteropathogenic E. coli |
| keywords | INTIMIN, ESCHERICHIA COLI, CELL ADHESION, OUTER MEMBRANE PROTEIN, NMR SPECTROSCOPY; INTIMIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.80 Å |
| rg_electron | 20.01 Å |
| i0 | 7744260.00 |
| molecular_weight | 20061.0 kDa |
| excluded_volume | 25015 ų |
| envelope_volume | 30612 ų |
| shell_volume | 14326 ų |
| envelope_diameter | 78.0 Å |
| shell_rg | 24.10 Å |
| envelope_rg | 20.17 Å |
| shape_rg | 19.98 Å |
| total_rg | 20.75 Å |
| total_atoms | 2813 |
| n_residues | 187 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 78.8 Å |
| rg_real | 21.05 Å |
| rg_real_error | 0.78 Å |
| i0_real | 7.7440e+06 |
| i0_real_error | 1.0820e+05 |
| rg_reciprocal | 21.00 Å |
| i0_reciprocal | 7744000.0000 |
| total_estimate | 0.7732 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.4 Å |
| skewness | 0.619 |
| kurtosis | -0.045 |
| angular_range | — – 0.3800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1103000.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.532; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.478; Smooth: 0.974 |
