1f02

;CRYSTAL STRUCTURE OF C-TERMINAL 282-RESIDUE FRAGMENT OF INTIMIN IN COMPLEX WITH TRANSLOCATED INTIMIN RECEPTOR (TIR) INTIMIN-BINDING DOMAIN ;

Method: X-RAY DIFFRACTION D_max: 150.4 Å Quality: REASONABLE

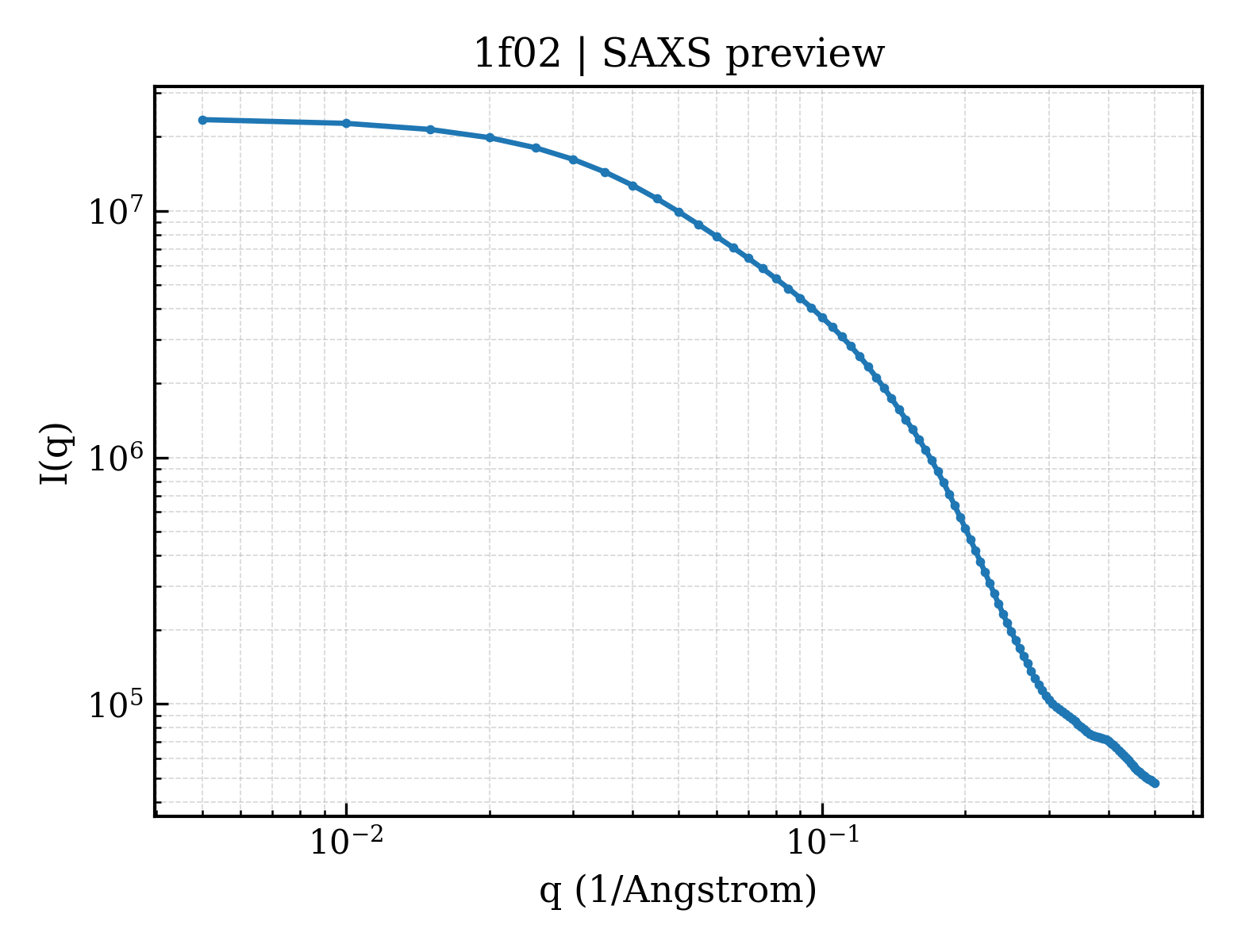

SAXS Profile

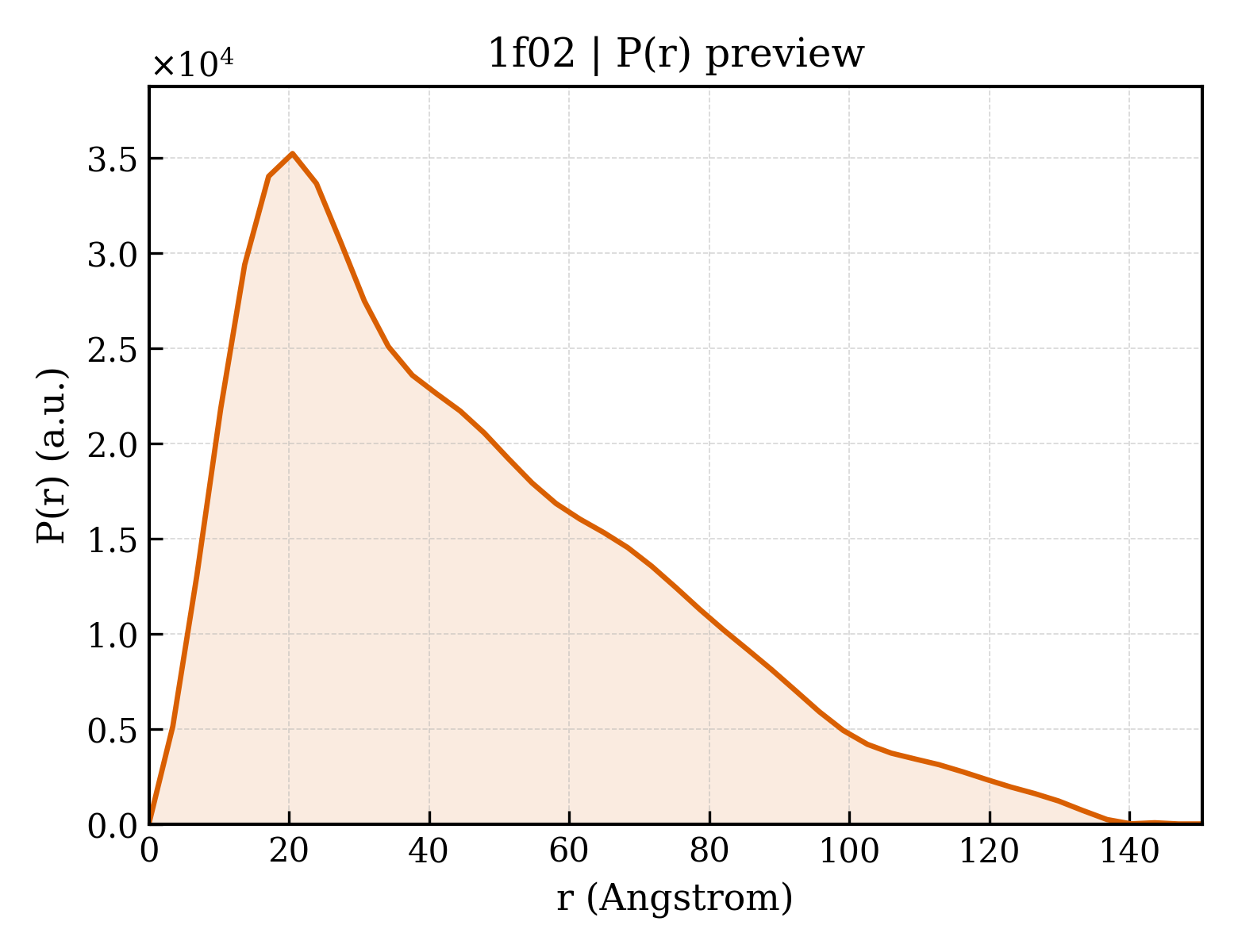

P(r) Distribution

▼

1. Structure Basics

entry_id	1f02
deposition_date	2000-05-14
title	;CRYSTAL STRUCTURE OF C-TERMINAL 282-RESIDUE FRAGMENT OF INTIMIN IN COMPLEX WITH TRANSLOCATED INTIMIN RECEPTOR (TIR) INTIMIN-BINDING DOMAIN ;
keywords	Immunoglobulin-like fold, C-type lectin-like fold, four-helix bundle, CELL ADHESION; CELL ADHESION
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	36.26 Å
rg_electron	37.46 Å
i0	23695500.00
molecular_weight	37107.0 kDa
excluded_volume	46091 Å³
envelope_volume	61334 Å³
shell_volume	18280 Å³
envelope_diameter	148.6 Å
shell_rg	31.66 Å
envelope_rg	39.11 Å
shape_rg	37.37 Å
total_rg	37.25 Å
total_atoms	2608
n_residues	348
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	150.4 Å
rg_real	37.46 Å
rg_real_error	2.84 Å
i0_real	2.3700e+07
i0_real_error	4.9560e+05
rg_reciprocal	36.71 Å
i0_reciprocal	23680000.0000
total_estimate	0.6152
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	20.5 Å
skewness	0.789
kurtosis	-0.038
angular_range	— – 0.2200 Å⁻¹
current_alpha	0.0000
highest_alpha	1090000.0000
n_real_points	45
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.032; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.002; Smooth: 0.896

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	INTIMIN
formula_weight	30084.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	I
atom_count	2608

ASITEIKADKTTAVANGQDAITYTVKVMKGDKPVSNQEVTFTTTLGKLSNSTEKTDTNGYAKVTLTSTTPGKSLVSARVSDVAVDVKAPEVEFFTTLTIDDGNIEIVGTGVKGKLPTVWLQYGQVNLKASGGNGKYTWRSANPAIASVDASSGQVTLKEKGTTTISVISSDNQTATYTIATPNSLIVPNMSKRVTYNDAVNTCKNFGGKLPSSQNELENVFKAWGAANKYEYYKSSQTIISWVQQTAQDAKSGVASTYDLVKQNPLNNIKASESNAYATCVK

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	TRANSLOCATED INTIMIN RECEPTOR
formula_weight	7058.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	T

MDQAANAAESATKDQLTQEAFKNPENQKVNIDANGNAIPSGELKDDIVEQIAQQAKEAGEVARQQA

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli BL21(DE3)

▶

6. Citations (1)

▶

length_a	90.500 Å
length_b	349.000 Å
length_c	47.800 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	2.900 Å
resolution_low	20.000 Å
r_factor	0.2470
r_work	0.2470
r_free	0.2960

fit	/app/data/saxs_computation/f0/1f02/1f02.fit
pddf	/app/data/pr_computation/f0/1f02/1f02.pr.out
profile	/app/data/saxs_computation/f0/1f02/1f02.dat
