1ebg

;CHELATION OF SER 39 TO MG2+ LATCHES A GATE AT THE ACTIVE SITE OF ENOLASE: STRUCTURE OF THE BIS(MG2+) COMPLEX OF YEAST ENOLASE AND THE INTERMEDIATE ANALOG PHOSPHONOACETOHYDROXAMATE AT 2.1 ANGSTROMS RESOLUTION ;

Method: X-RAY DIFFRACTION Dmax: 83.1 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 1ebg

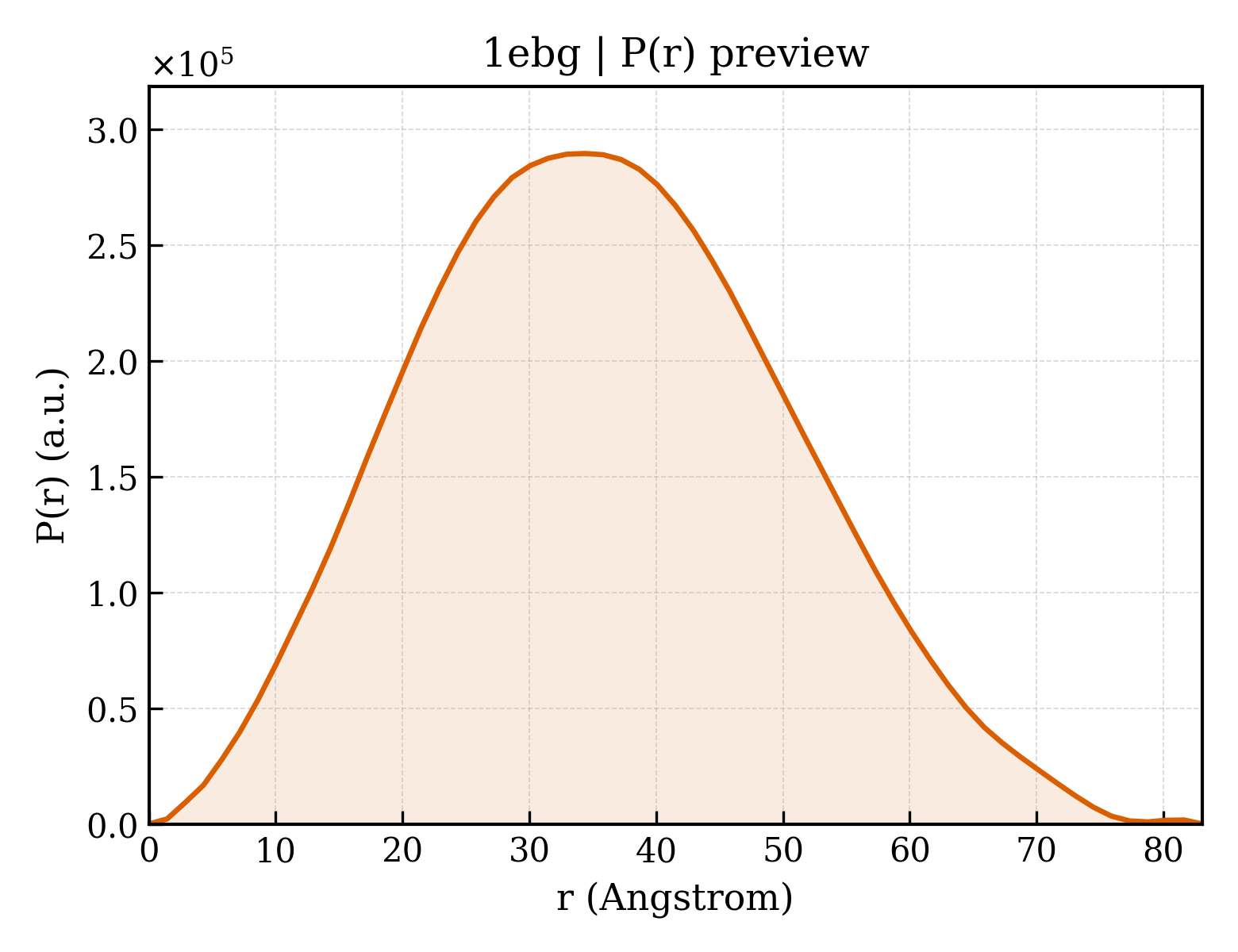

P(r) Distribution

P(r) distribution for 1ebg
▼

1. Structure Basics

entry_id1ebg
deposition_date1994-04-27
title;CHELATION OF SER 39 TO MG2+ LATCHES A GATE AT THE ACTIVE SITE OF ENOLASE: STRUCTURE OF THE BIS(MG2+) COMPLEX OF YEAST ENOLASE AND THE INTERMEDIATE ANALOG PHOSPHONOACETOHYDROXAMATE AT 2.1 ANGSTROMS RESOLUTION ;
keywordsCARBON-OXYGEN LYASE; CARBON-OXYGEN LYASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier27.47 Å
rg_electron26.63 Å
i0140498000.00
molecular_weight93739.0 kDa
excluded_volume117480 ų
envelope_volume135470 ų
shell_volume40338 ų
envelope_diameter89.0 Å
shell_rg35.57 Å
envelope_rg26.73 Å
shape_rg26.63 Å
total_rg27.45 Å
total_atoms6606
n_residues872
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax83.1 Å
rg_real27.29 Å
rg_real_error0.51 Å
i0_real1.4050e+08
i0_real_error2.1520e+06
rg_reciprocal27.35 Å
i0_reciprocal140500000.0000
total_estimate0.9051
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary34.4 Å
skewness0.185
kurtosis-0.447
angular_range— – 0.2900 Å−1
current_alpha0.0000
highest_alpha36320000.0000
n_real_points59
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.934; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.982
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

▶

6. Citations (1)

▶

7. Files & Curves (10)
