1l8p

Mg-phosphonoacetohydroxamate complex of S39A yeast enolase 1

Method: X-RAY DIFFRACTION D_max: 146.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

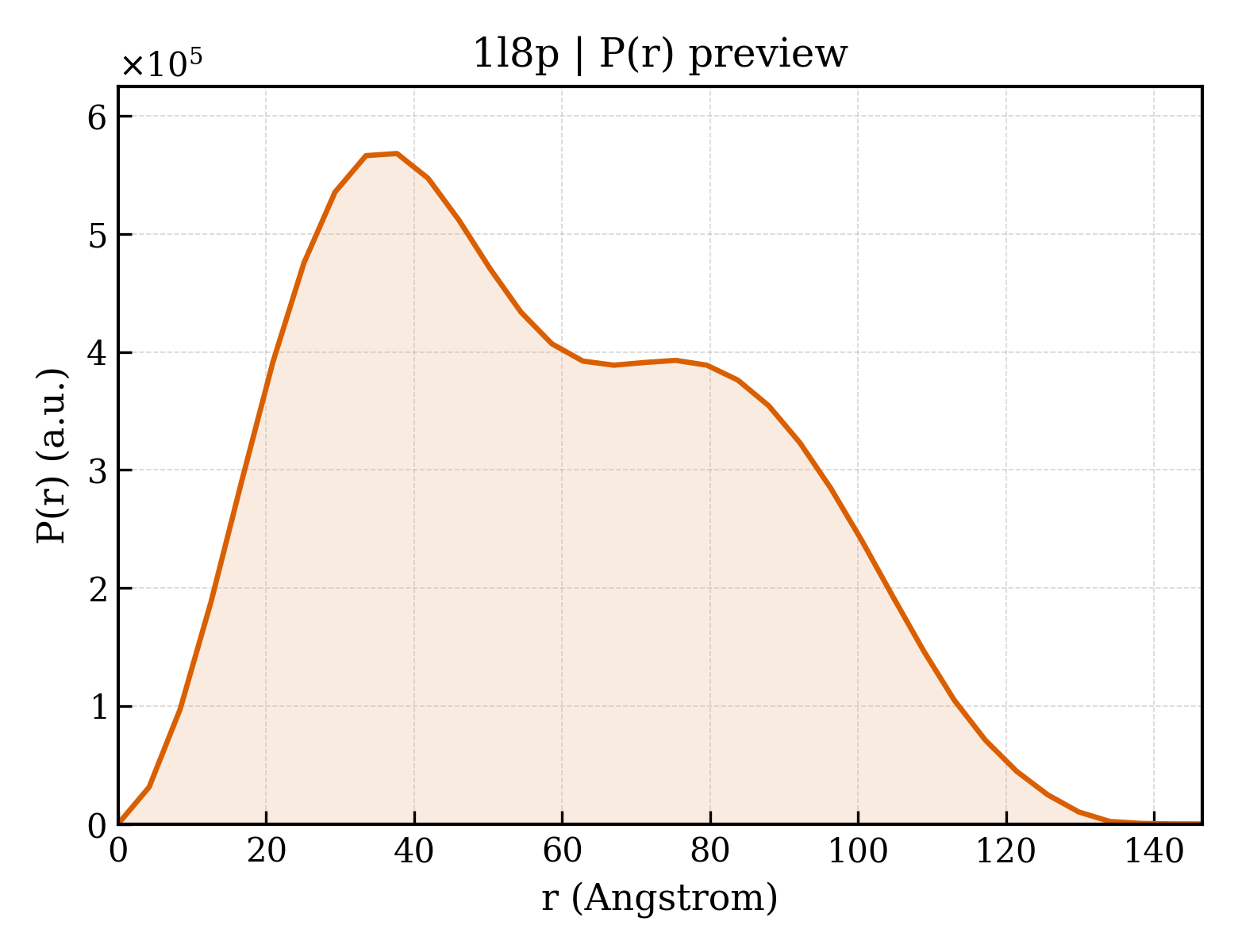

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1l8p
沉积日期 deposition_date	2002-03-21
结构标题 title	Mg-phosphonoacetohydroxamate complex of S39A yeast enolase 1
关键词 keywords	Beta Barrel, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	44.76 Å
回转半径 Rg (电子) rg_electron	44.95 Å
零角强度 I(0) i0	507472000.00
分子量 molecular_weight	187350.0 kDa
排除体积 excluded_volume	234870 Å³
包络体积 envelope_volume	298360 Å³
水化壳体积 shell_volume	54473 Å³
包络直径 envelope_diameter	144.1 Å
壳层 Rg shell_rg	50.82 Å
包络 Rg envelope_rg	43.88 Å
形状 Rg shape_rg	44.95 Å
总 Rg total_rg	45.19 Å
总原子数 total_atoms	13204
残基数 n_residues	1744
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	146.5 Å
Rg (实空间) rg_real	44.95 Å
Rg 误差 (实空间) rg_real_error	1.62 Å
I(0) (实空间) i0_real	5.0750e+08
I(0) 误差 (实空间) i0_real_error	9.6330e+06
Rg (倒空间) rg_reciprocal	44.76 Å
I(0) (倒空间) i0_reciprocal	507300000.0000
解质量估计 total_estimate	0.8203
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	37.7 Å
偏度 Skewness skewness	0.304
峰度 Kurtosis kurtosis	-0.841
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	136500000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.730; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.779; Smooth: 0.691

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	enolase 1
分子量 formula_weight	46716.8 kDa
EC 编号 ec_number	4.2.1.11
突变 mutation	S39A
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	14636

AVSKVYARSVYDSRGNPTVEVELTTEKGVFRSIVPSGAATGVHEALEMRDGDKSKWMGKGVLHAVKNVNDVIAPAFVKANIDVKDQKAVDDFLISLDGTANKSKLGANAILGVSLAASRAAAAEKNVPLYKHLADLSKSKTSPYVLPVPFLNVLNGGSHAGGALALQEFMIAPTGAKTFAEALRIGSEVYHNLKSLTKKRYGASAGNVGDEGGVAPNIQTAEEALDLIVDAIKAAGHDGKVKIGLDCASSEFFKDGKYDLDFKNPNSDKSKWLTGPQLADLYHSLMKRYPIVSIEDPFAEDDWEAWSHFFKTAGIQIVADDLTVTNPKRIATAIEKKAADALLLKVNQIGTLSESIKAAQDSFAAGWGVMVSHRSGETEDTFIADLVVGLRTGQIKTGAPARSERLAKLNQLLRIEEELGDNAVFAGENFHHGDKL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 3 non-polymer

描述 description	PHOSPHONOACETOHYDROXAMIC ACID
分子量 formula_weight	155.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1432

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1l8pa1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
家族 Family family	c.1.11.1 — Enolase

结构域编号 domain_id	d1l8pa2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.54 — Enolase N-terminal domain-like
超家族 Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
家族 Family family	d.54.1.1 — Enolase N-terminal domain-like

结构域编号 domain_id	d1l8pb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
家族 Family family	c.1.11.1 — Enolase

结构域编号 domain_id	d1l8pb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.54 — Enolase N-terminal domain-like
超家族 Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
家族 Family family	d.54.1.1 — Enolase N-terminal domain-like

结构域编号 domain_id	d1l8pc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
家族 Family family	c.1.11.1 — Enolase

结构域编号 domain_id	d1l8pc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.54 — Enolase N-terminal domain-like
超家族 Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
家族 Family family	d.54.1.1 — Enolase N-terminal domain-like

结构域编号 domain_id	d1l8pd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
家族 Family family	c.1.11.1 — Enolase

结构域编号 domain_id	d1l8pd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.54 — Enolase N-terminal domain-like
超家族 Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
家族 Family family	d.54.1.1 — Enolase N-terminal domain-like

CATH v4.4 (8 domains)

结构域编号 domain_id	1l8pA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

结构域编号 domain_id	1l8pA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	120 — Enolase-like C-terminal domain

结构域编号 domain_id	1l8pB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

结构域编号 domain_id	1l8pB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	120 — Enolase-like C-terminal domain

结构域编号 domain_id	1l8pC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

结构域编号 domain_id	1l8pC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	120 — Enolase-like C-terminal domain

结构域编号 domain_id	1l8pD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

结构域编号 domain_id	1l8pD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	120 — Enolase-like C-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	63.200 Å
晶胞边长 b length_b	164.100 Å
晶胞边长 c length_c	84.600 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.40 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.100 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.1808
R_free r_free	0.2233
