1ec8

E. COLI GLUCARATE DEHYDRATASE BOUND TO PRODUCT 2,3-DIHYDROXY-5-OXO-HEXANEDIOATE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUCARATE DEHYDRATASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	MAGNESIUM ION × 4 2,3-DIHYDROXY-5-OXO-HEXANEDIOATE × 4 ISOPROPYL ALCOHOL × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GUDH_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–446； UniProt 1–446 Author chain B； PDBConstruct 1–446； UniProt 1–446 Author chain C； PDBConstruct 1–446； UniProt 1–446 Author chain D； PDBConstruct 1–446； UniProt 1–446

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ec8
Deposition date deposition_date	2000-01-25
Structure title title	E. COLI GLUCARATE DEHYDRATASE BOUND TO PRODUCT 2,3-DIHYDROXY-5-OXO-HEXANEDIOATE
Keywords keywords	Glucarate Dehydratase Enolase Enzyme Superfamily TIM Barrel (beta/alpha)7beta barrel, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ec8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ec8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

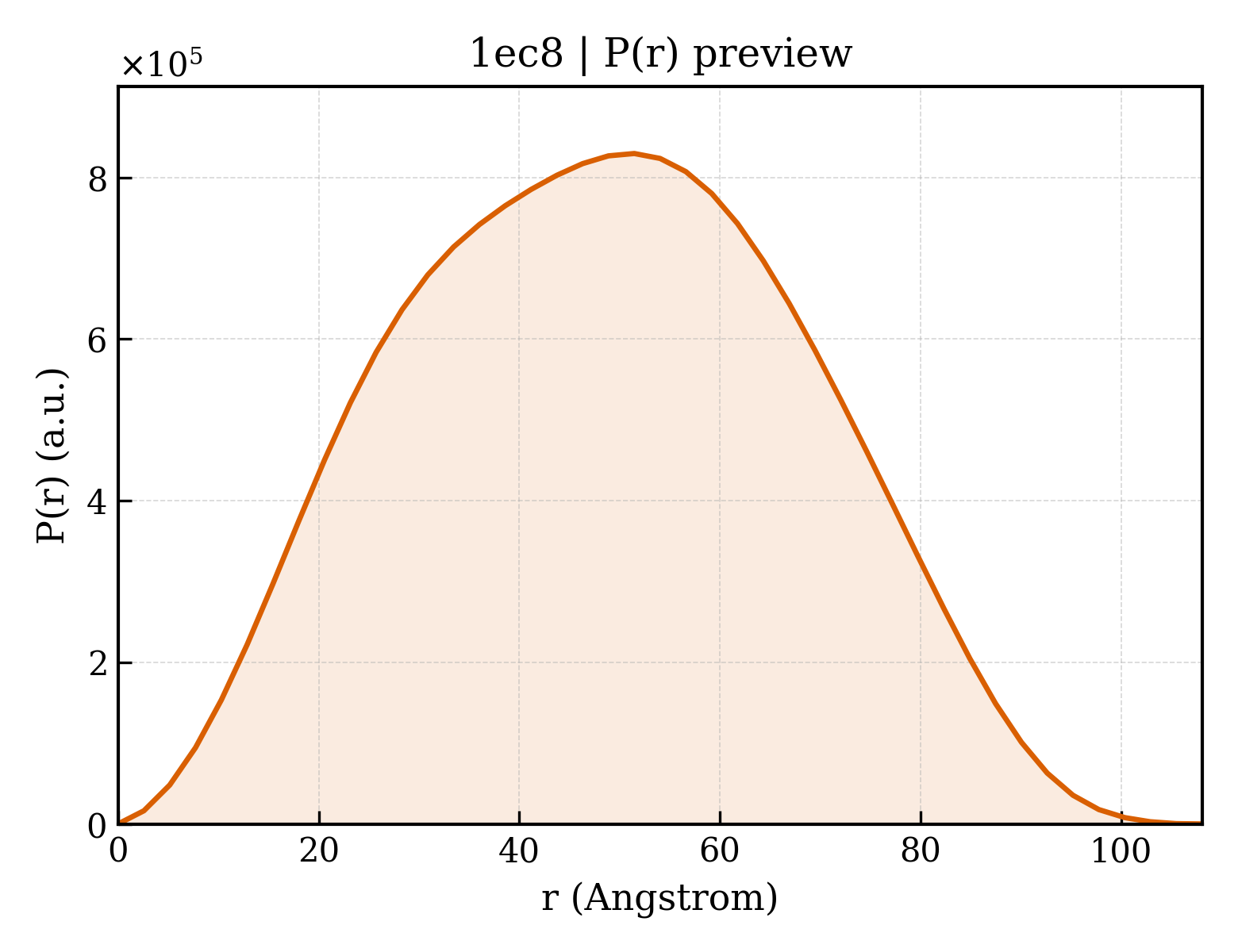

1ec8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.24 Å
Rg (electron density)	36.65 Å
Total Rg	37.08 Å
Atom count	13709
Residues	1768
Excluded volume	242820 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ec8__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	GLUCARATE DEHYDRATASE
Molecular weight formula_weight	49196.9 kDa
EC 编号 ec_number	4.2.1.40
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	14943

MSSQFTTPVVTEMQVIPVAGHDSMLMNLSGAHAPFFTRNIVIIKDNSGHTGVGEIPGGEKIRKTLEDAIPLVVGKTLGEYKNVLTLVRNTFADRDAGGRGLQTFDLRTTIHVVTGIEAAMLDLLGQHLGVNVASLLGDGQQRSEVEMLGYLFFVGNRKATPLPYQSQPDDSCDWYRLRHEEAMTPDAVVRLAEAAYEKYGFNDFKLKGGVLAGEEEAESIVALAQRFPQARITLDPNGAWSLNEAIKIGKYLKGSLAYAEDPCGAEQGFSGREVMAEFRRATGLPTATNMIATDWRQMGHTLSLQSVDIPLADPHFWTMQGSVRVAQMCHEFGLTWGSHSNNHFDISLAMFTHVAAAAPGKITAIDTHWIWQEGNQRLTKEPFEIKGGLVQVPEKPGLGVEIDMDQVMKAHELYQKHGLGARDDAMGMQYLIPGWTFDNKRPCMVR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	2,3-DIHYDROXY-5-OXO-HEXANEDIOATE
Molecular weight formula_weight	190.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	ISOPROPYL ALCOHOL
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1234

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1ec8a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.2 — D-glucarate dehydratase-like

Domain ID domain_id	d1ec8a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.1 — Enolase N-terminal domain-like

Domain ID domain_id	d1ec8b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.2 — D-glucarate dehydratase-like

Domain ID domain_id	d1ec8b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.1 — Enolase N-terminal domain-like

Domain ID domain_id	d1ec8c1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.2 — D-glucarate dehydratase-like

Domain ID domain_id	d1ec8c2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.1 — Enolase N-terminal domain-like

Domain ID domain_id	d1ec8d1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.2 — D-glucarate dehydratase-like

Domain ID domain_id	d1ec8d2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.1 — Enolase N-terminal domain-like

CATH v4.4 (8 domains)

Domain ID domain_id	1ec8A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	1ec8A02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

Domain ID domain_id	1ec8B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	1ec8B02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

Domain ID domain_id	1ec8C01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	1ec8C02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

Domain ID domain_id	1ec8D01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	1ec8D02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

▶

Unit-cell length a length_a	71.090 Å
Unit-cell length b length_b	84.606 Å
Unit-cell length c length_c	98.858 Å
Unit-cell angle α angle_alpha	103.42 °
Unit-cell angle β angle_beta	93.99 °
Unit-cell angle γ angle_gamma	113.06 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1960
R_work r_work	0.1960
R_free r_free	—
