1. Protein Identity and Related Structures Protein Identity & Related Structures

Glucarate Dehydratase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 D-GLUCARATE × 2 ISOPROPYL ALCOHOL × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 D-GLUCARATE × 2 ISOPROPYL ALCOHOL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GUDH_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–446； UniProt 1–446 Author chain B； PDBConstruct 1–446； UniProt 1–446

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jct
Deposition date deposition_date	2001-06-11
Structure title title	Glucarate Dehydratase, N341L mutant Orthorhombic Form
Keywords keywords	alpha/beta barrel, Enolase superfamily, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jct__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jct__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

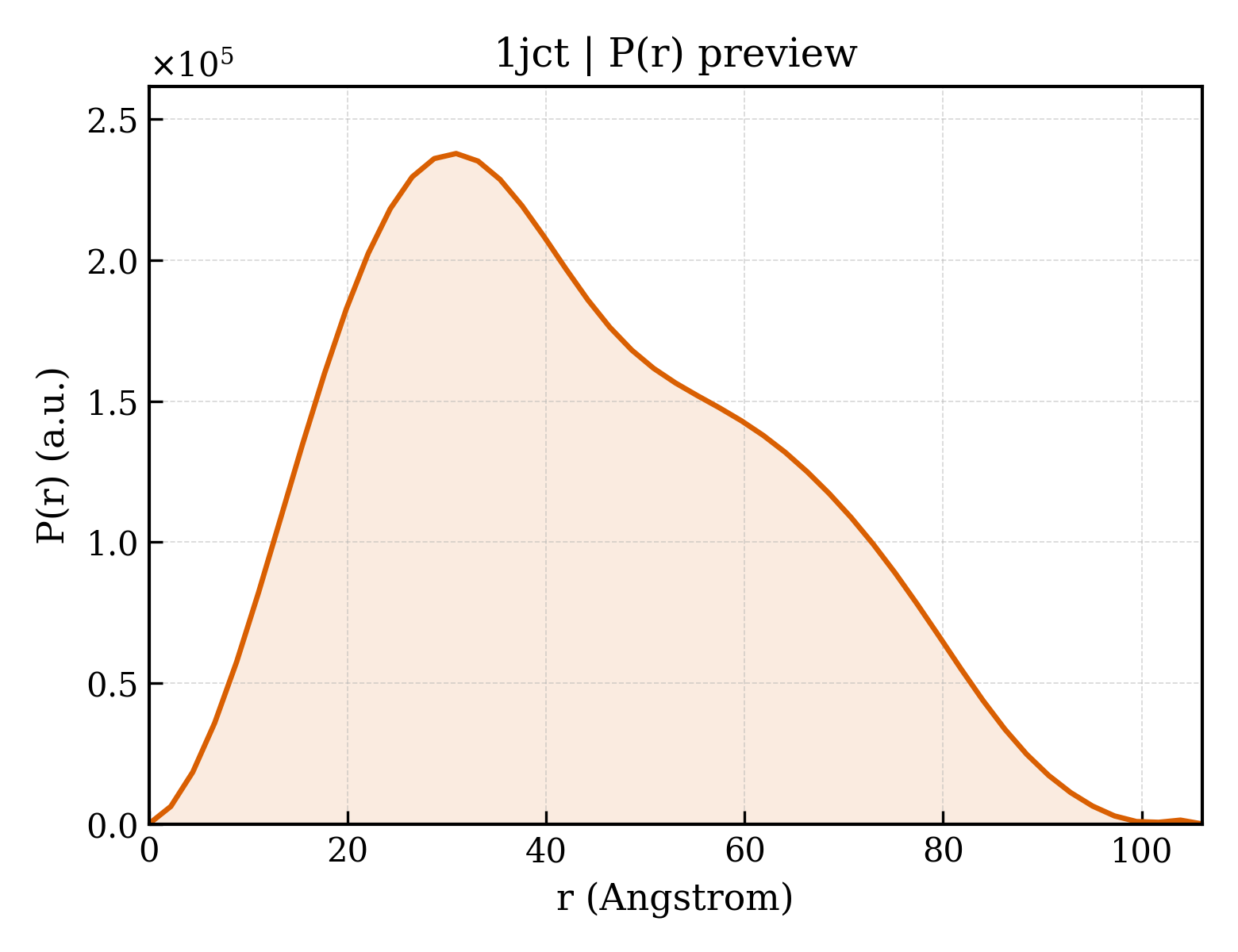

1jct__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.63 Å
Rg (electron density)	30.08 Å
Total Rg	30.67 Å
Atom count	6880
Residues	886
Excluded volume	121930 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jct__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1jct__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Glucarate Dehydratase
Molecular weight formula_weight	49195.9 kDa
EC 编号 ec_number	4.2.1.40
Mutation mutation	N341L
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6935

MSSQFTTPVVTEMQVIPVAGHDSMLMNLSGAHAPFFTRNIVIIKDNSGHTGVGEIPGGEKIRKTLEDAIPLVVGKTLGEYKNVLTLVRNTFADRDAGGRGLQTFDLRTTIHVVTGIEAAMLDLLGQHLGVNVASLLGDGQQRSEVEMLGYLFFVGNRKATPLPYQSQPDDSCDWYRLRHEEAMTPDAVVRLAEAAYEKYGFNDFKLKGGVLAGEEEAESIVALAQRFPQARITLDPNGAWSLNEAIKIGKYLKGSLAYAEDPCGAEQGFSGREVMAEFRRATGLPTATNMIATDWRQMGHTLSLQSVDIPLADPHFWTMQGSVRVAQMCHEFGLTWGSHSLNHFDISLAMFTHVAAAAPGKITAIDTHWIWQEGNQRLTKEPFEIKGGLVQVPEKPGLGVEIDMDQVMKAHELYQKHGLGARDDAMGMQYLIPGWTFDNKRPCMVR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	D-GLUCARATE
Molecular weight formula_weight	208.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	ISOPROPYL ALCOHOL
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	96

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1jcta1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.2 — D-glucarate dehydratase-like

Domain ID domain_id	d1jcta2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.1 — Enolase N-terminal domain-like

Domain ID domain_id	d1jctb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.11 — Enolase C-terminal domain-like
Family Family family	c.1.11.2 — D-glucarate dehydratase-like

Domain ID domain_id	d1jctb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.54 — Enolase N-terminal domain-like
Superfamily Superfamily superfamily	d.54.1 — Enolase N-terminal domain-like
Family Family family	d.54.1.1 — Enolase N-terminal domain-like

CATH v4.4 (4 domains)

Domain ID domain_id	1jctA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	1jctA02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

Domain ID domain_id	1jctB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	10 — Enolase-like, N-terminal domain

Domain ID domain_id	1jctB02
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	120 — Enolase-like C-terminal domain

▶

Unit-cell length a length_a	73.924 Å
Unit-cell length b length_b	203.159 Å
Unit-cell length c length_c	136.185 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.2130
R_free r_free	0.2740
