1ecs
THE 1.7 A CRYSTAL STRUCTURE OF A BLEOMYCIN RESISTANCE DETERMINANT ENCODED ON THE TRANSPOSON TN5

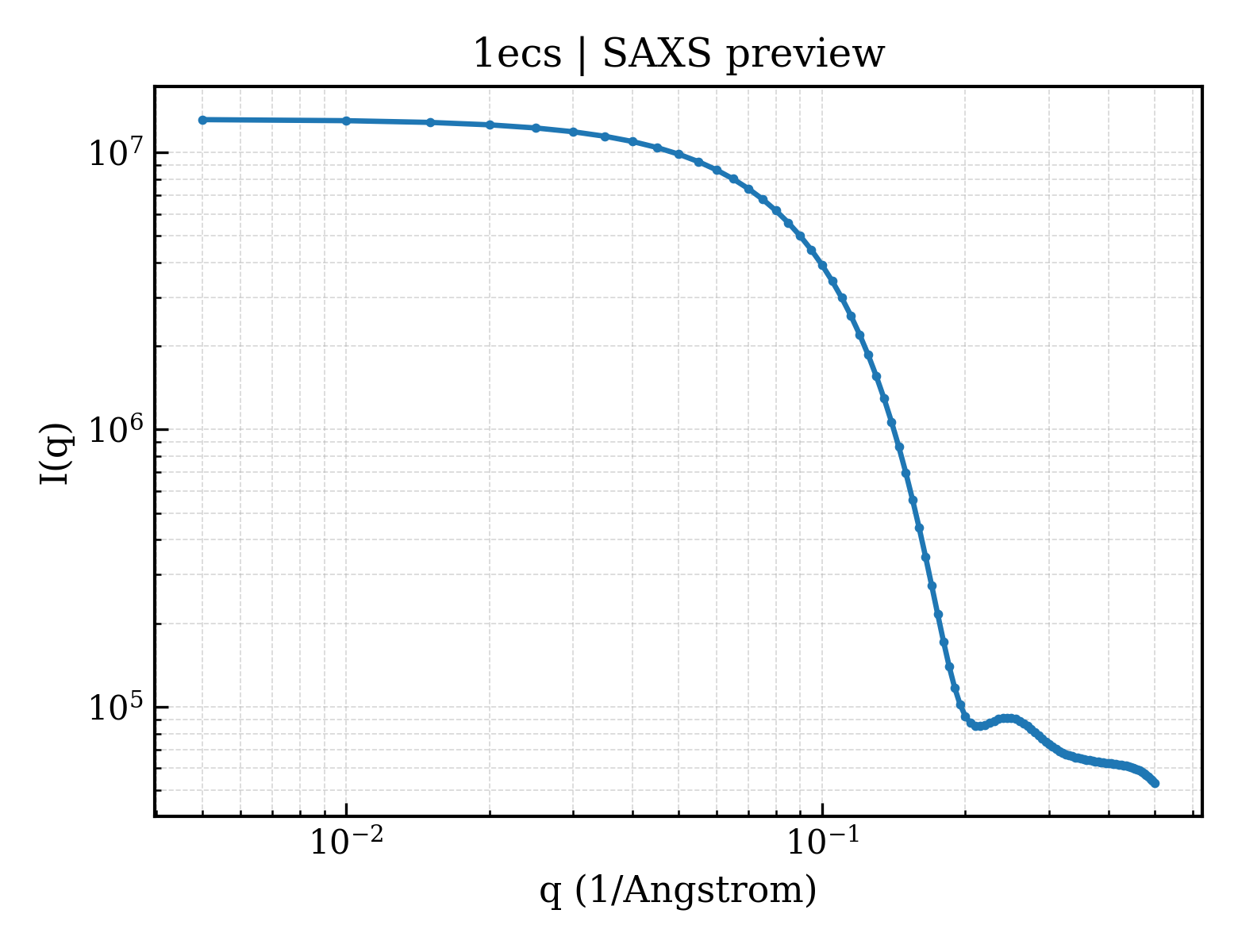

SAXS Profile

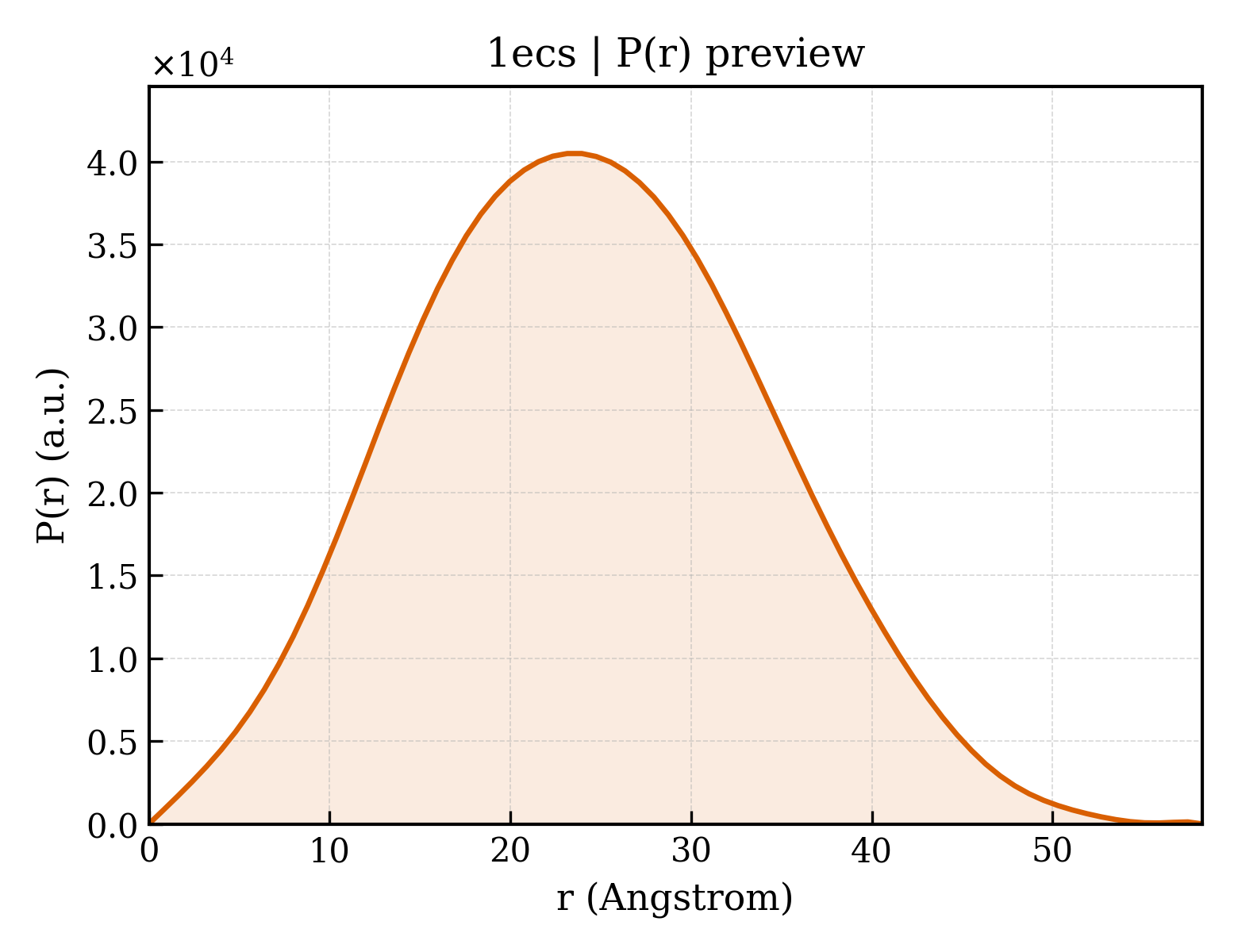

P(r) Distribution
1. Structure Basics
| entry_id | 1ecs |
| deposition_date | 2000-01-25 |
| title | THE 1.7 A CRYSTAL STRUCTURE OF A BLEOMYCIN RESISTANCE DETERMINANT ENCODED ON THE TRANSPOSON TN5 |
| keywords | ARM-EXCHANGE, ANTIBIOTIC INHIBITOR; ANTIBIOTIC INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.65 Å |
| rg_electron | 17.46 Å |
| i0 | 13157300.00 |
| molecular_weight | 27239.0 kDa |
| excluded_volume | 34026 ų |
| envelope_volume | 38443 ų |
| shell_volume | 18281 ų |
| envelope_diameter | 56.9 Å |
| shell_rg | 23.77 Å |
| envelope_rg | 17.59 Å |
| shape_rg | 17.46 Å |
| total_rg | 18.41 Å |
| total_atoms | 1917 |
| n_residues | 240 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.3 Å |
| rg_real | 18.53 Å |
| rg_real_error | 0.24 Å |
| i0_real | 1.3160e+07 |
| i0_real_error | 1.5320e+05 |
| rg_reciprocal | 18.55 Å |
| i0_reciprocal | 13160000.0000 |
| total_estimate | 0.8962 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 57.5 Å |
| skewness | 0.142 |
| kurtosis | -0.405 |
| angular_range | — – 0.4250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2646000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.890; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.991 |
