1ewj

CRYSTAL STRUCTURE OF BLEOMYCIN-BINDING PROTEIN COMPLEXED WITH BLEOMYCIN

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BLEOMYCIN RESISTANCE DETERMINANT

Klebsiella pneumoniae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	BLEOMYCIN A2 × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	BLEOMYCIN A2 × 2 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	BLEOMYCIN A2 × 2 water × 2	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 2	BLEOMYCIN A2 × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BLE_KLEPN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–126； UniProt 1–126 Author chain B； PDBConstruct 1–126； UniProt 1–126 Author chain C； PDBConstruct 1–126； UniProt 1–126 Author chain D； PDBConstruct 1–126； UniProt 1–126 Author chain E； PDBConstruct 1–126； UniProt 1–126 Author chain F； PDBConstruct 1–126； UniProt 1–126 Author chain G； PDBConstruct 1–126； UniProt 1–126 Author chain H； PDBConstruct 1–126； UniProt 1–126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ewj
Deposition date deposition_date	2000-04-26
Structure title title	CRYSTAL STRUCTURE OF BLEOMYCIN-BINDING PROTEIN COMPLEXED WITH BLEOMYCIN
Keywords keywords	bleomycin-binding protein, bleomycin, antibiotics resistance, homodimer, ANTIBIOTIC INHIBITOR; ANTIBIOTIC INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ewj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ewj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

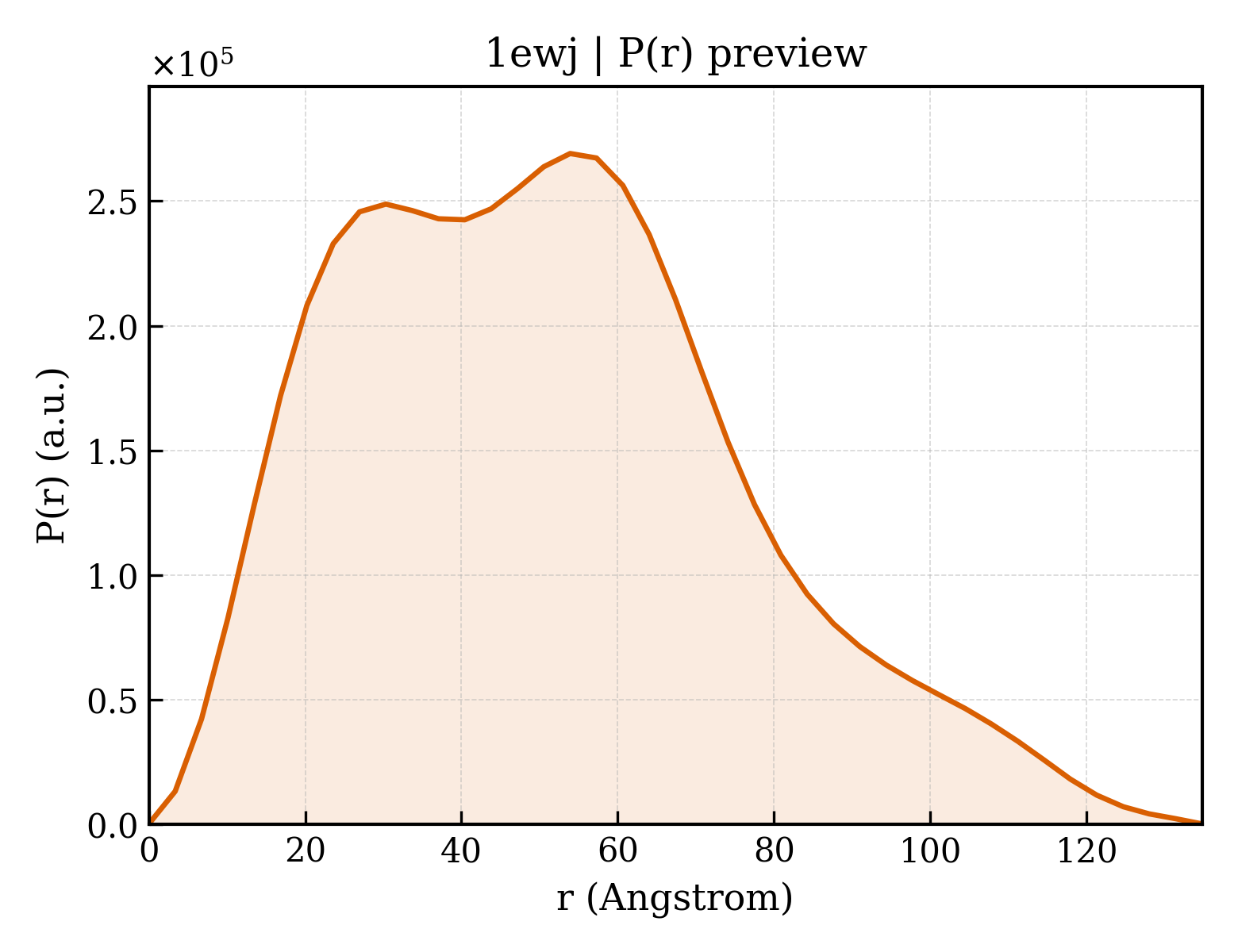

1ewj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.60 Å
Rg (electron density)	17.41 Å
Total Rg	18.32 Å
Atom count	2076
Residues	238
Excluded volume	36545 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ewj__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ewj__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1ewj__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1ewj__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	BLEOMYCIN RESISTANCE DETERMINANT
Molecular weight formula_weight	14084.9 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	8352

MTDQATPNLPSRDFDSTAAFYERLGFGIVFRDAGWMILQRGDLMLEFFAHPGLDPLASWFSCCLRLDDLAEFYRQCKSVGIQETSSGYPRIHAPELQEWGGTMAALVDPDGTLLRLIQNELLAGIS

Source Source

Source organism organism	Klebsiella pneumoniae
NCBI taxonomy ID ncbi_taxonomy_id	573
Host organism host_organism	Streptomyces verticillus

Entity 2 Entity 2 non-polymer

Description description	BLEOMYCIN A2
Molecular weight formula_weight	1416.6 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	48

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1ewja_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Superfamily Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Family Family family	d.32.1.2 — Antibiotic resistance proteins

Domain ID domain_id	d1ewjb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Superfamily Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Family Family family	d.32.1.2 — Antibiotic resistance proteins

Domain ID domain_id	d1ewjc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Superfamily Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Family Family family	d.32.1.2 — Antibiotic resistance proteins

Domain ID domain_id	d1ewjd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Superfamily Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Family Family family	d.32.1.2 — Antibiotic resistance proteins

Domain ID domain_id	d1ewje_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Superfamily Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Family Family family	d.32.1.2 — Antibiotic resistance proteins

Domain ID domain_id	d1ewjf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Superfamily Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Family Family family	d.32.1.2 — Antibiotic resistance proteins

Domain ID domain_id	d1ewjg_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Superfamily Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Family Family family	d.32.1.2 — Antibiotic resistance proteins

Domain ID domain_id	d1ewjh_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.32 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Superfamily Superfamily superfamily	d.32.1 — Glyoxalase/Bleomycin resistance protein/Dihydroxybiphenyl dioxygenase
Family Family family	d.32.1.2 — Antibiotic resistance proteins

CATH v4.4 (8 domains)

Domain ID domain_id	1ewjA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
Homologous superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

Domain ID domain_id	1ewjB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
Homologous superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

Domain ID domain_id	1ewjC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
Homologous superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

Domain ID domain_id	1ewjD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
Homologous superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

Domain ID domain_id	1ewjE00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
Homologous superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

Domain ID domain_id	1ewjF00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
Homologous superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

Domain ID domain_id	1ewjG00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
Homologous superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

Domain ID domain_id	1ewjH00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	180 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase; domain 1
Homologous superfamily homologous superfamily	10 — 2,3-Dihydroxybiphenyl 1,2-Dioxygenase, domain 1

▶

Unit-cell length a length_a	115.270 Å
Unit-cell length b length_b	117.000 Å
Unit-cell length c length_c	79.860 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2180
R_work r_work	0.2180
R_free r_free	0.3020
