1edk
STAPHYLOCOCCAL PROTEIN A E-DOMAIN (-60), NMR, MINIMIZED AVERAGE STRUCTURE
SAXS Profile

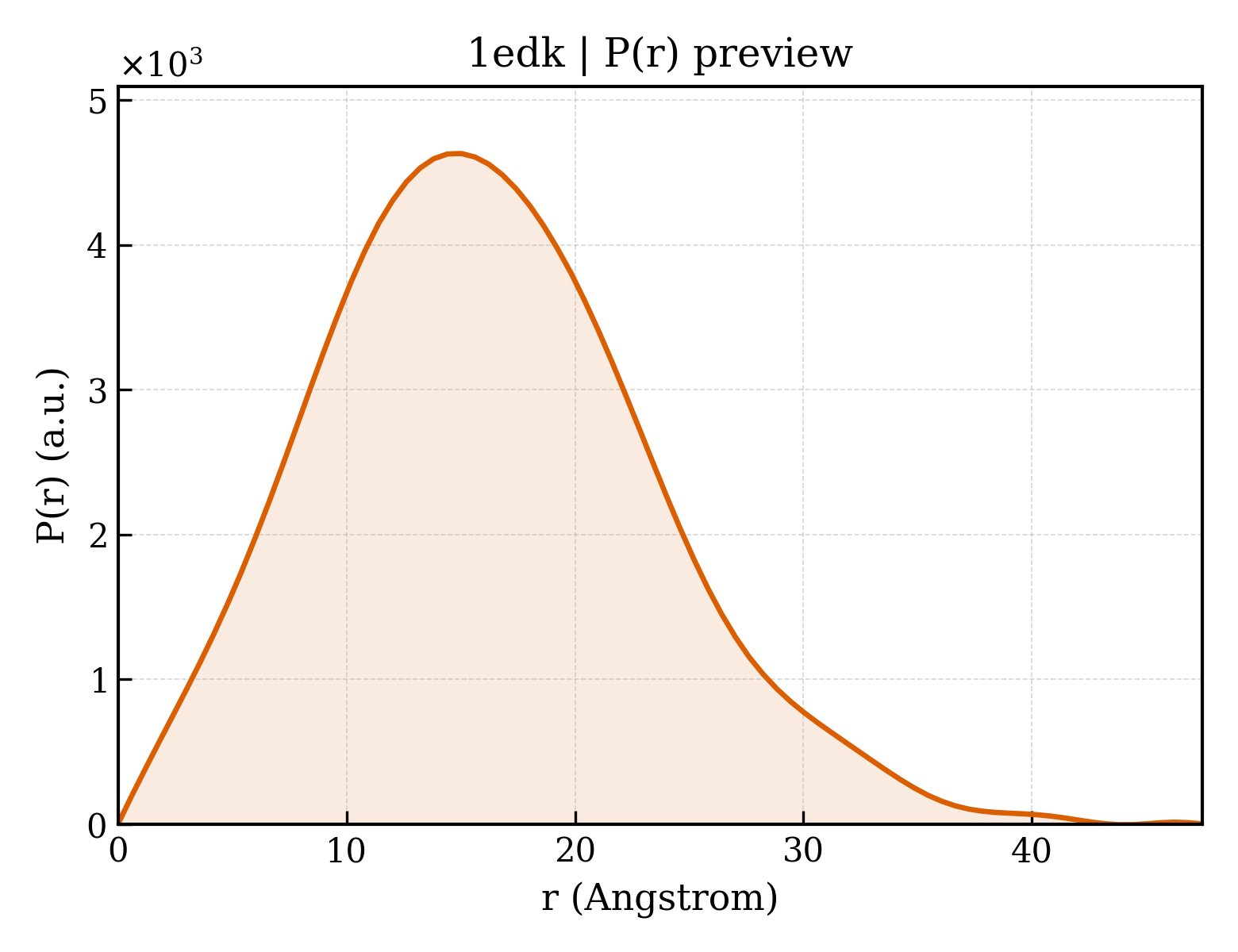

P(r) Distribution
1. Structure Basics
| entry_id | 1edk |
| deposition_date | 1996-07-22 |
| title | STAPHYLOCOCCAL PROTEIN A E-DOMAIN (-60), NMR, MINIMIZED AVERAGE STRUCTURE |
| keywords | IMMUNOGLOBULIN-BINDING PROTEIN, TRANSMEMBRANE, CELL WALL, IGG-BINDING PROTEIN; IMMUNOGLOBULIN-BINDING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.46 Å |
| rg_electron | 11.33 Å |
| i0 | 1052610.00 |
| molecular_weight | 6196.0 kDa |
| excluded_volume | 7493 ų |
| envelope_volume | 8606 ų |
| shell_volume | 7088 ų |
| envelope_diameter | 45.6 Å |
| shell_rg | 15.87 Å |
| envelope_rg | 11.92 Å |
| shape_rg | 11.32 Å |
| total_rg | 12.52 Å |
| total_atoms | 844 |
| n_residues | 56 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.5 Å |
| rg_real | 12.48 Å |
| rg_real_error | 0.55 Å |
| i0_real | 1.0530e+06 |
| i0_real_error | 1.2290e+04 |
| rg_reciprocal | 12.48 Å |
| i0_reciprocal | 1053000.0000 |
| total_estimate | 0.8145 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.0 Å |
| skewness | 0.397 |
| kurtosis | 0.018 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 110700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.601; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.793; Smooth: 0.989 |
